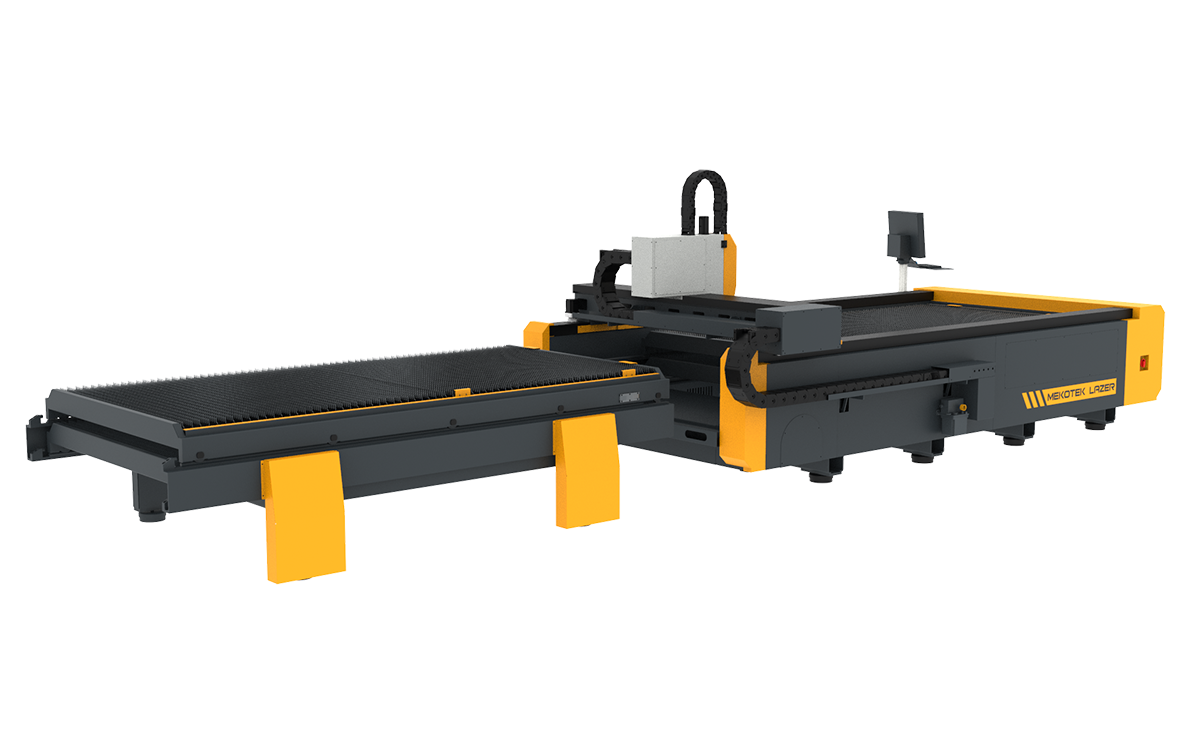

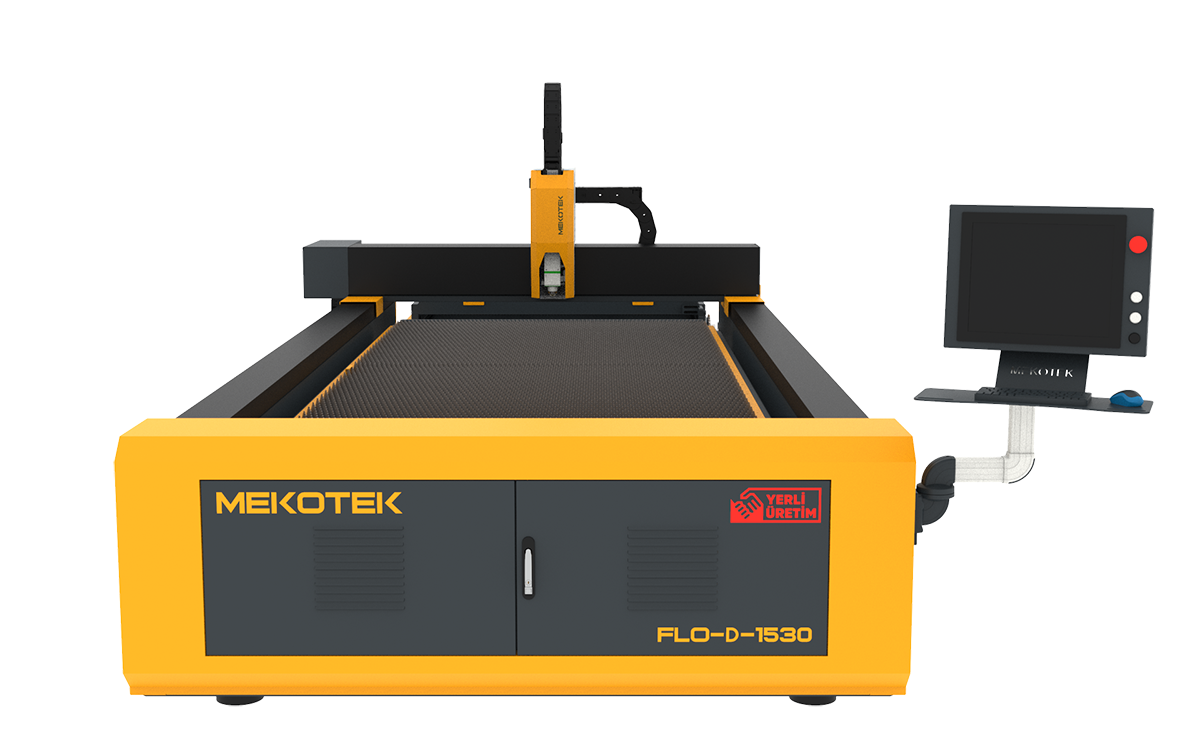

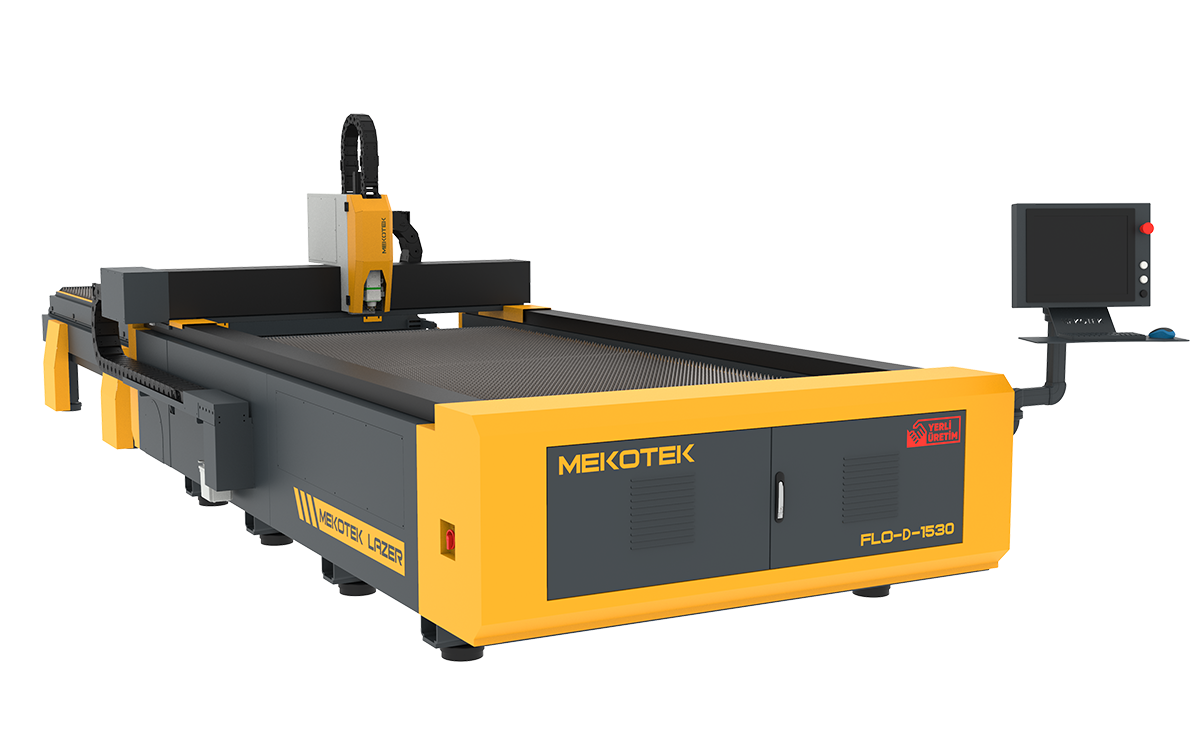

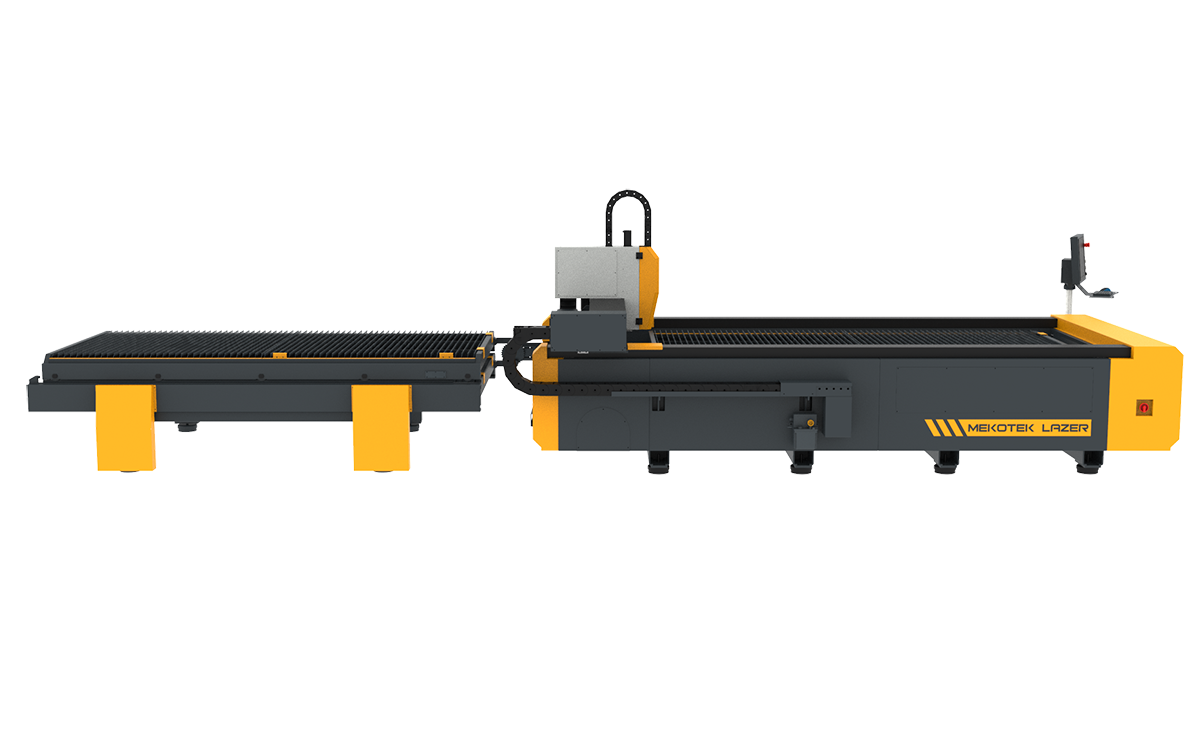

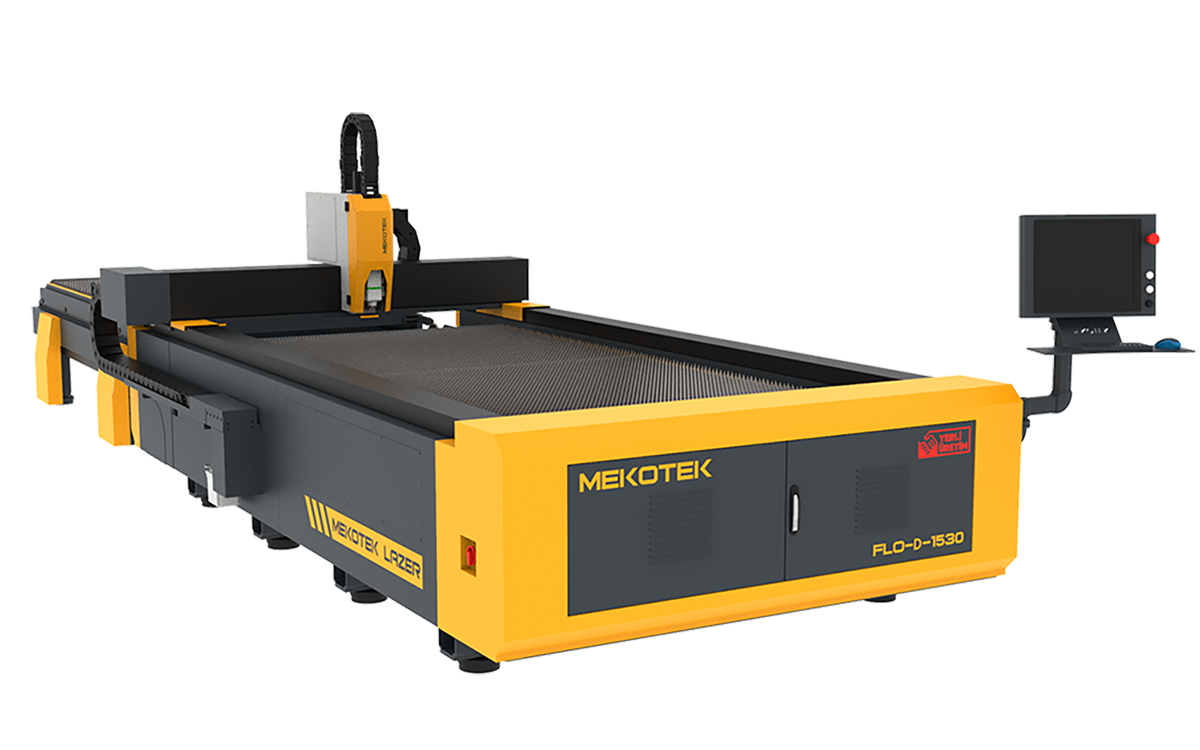

FLO-D 1530 - Open Type, Double Table Fiber Laser
FLO-D serious machine is exchange plate laser cutting machine. You do not need to wait to collect the cut material. It is very reasonable to have these models for serial works.
FLO-D 1530 - Open Type, Double Table Fiber Laser
| SPECIFICATIONS | VALUE |
| Working Area | 1500 x 3000 mm (5 x 10 ft) |
| Loading Capacity | 1200 kg (2650 lbs) |
| X-Y Axis Travel | 1520 x 3030 mm (5 x 10 ft ) |
| Z Axis Travel | 100 mm (3.94”) |
| X-Y-Z Axis Guideway | 4 Point Ball Caged |
| X-Y Axis Drive System | Rack |
| Z Axis Drive System | Ballscrew |
| X-Y Axis Speed | 80 m/min (3150 ipm) |
| Z Axis Speed | 30 m/min (1180 ipm) |
| X-Y Position Accuaracy | 0.05 mm (0.002”) |
| X-Y Repeatability Accuracy | 0.03 mm (0.001”) |
| Laser Source | Raycus / JPT / Han’s |
| Laser Source Output Power | 1000 / 2000 / 3000 W |
| CNC Control System | Fscut |
| Laser Cutting Head | Raytools / BOCI / WSX |
| Assist Gasses | Air / Oxygen / Nitrogen |
| Cooling Type | Water Cooling |
| Machine Weight | 4500 kg (9900 lbs) |
| Machine Dimensions (W x L x H) | 2355 x 8580 x 1980 mm (7.7 x 28.1 x 6.5 ft) |
| Graphic Format | dwg / dxf / stp |
| Electricity | 220 or 380 Volt / 3 phase / 60 Hz |
| Certifications | CE / ISO |
| Warranty | 2 Years |
| Cutting Thickness | 1000 w | 2000 w | 3000 w |
| Carbon Steel | 10 mm (3/8”) | 14 mm (9/16”) | 16 mm (5/8”) |
| Stainless Steel | 3 mm (1/8”) | 5 mm (3/16”) | 6 mm (1/4”) |
| Aluminium | 2 mm (1/16”) | 4 mm (1/8”) | 5 mm (3/16”) |
| Brass | 2 mm (1/16”) | 4 mm (1/8”) | 5 mm (3/16”) |
