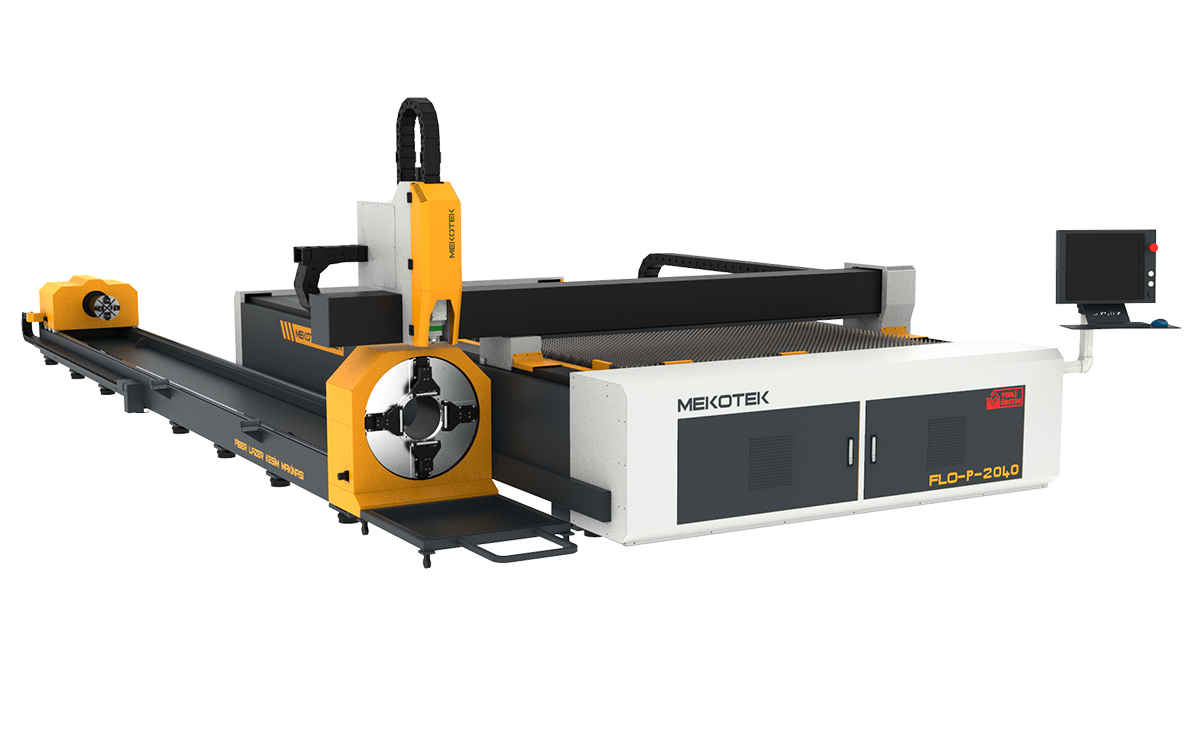

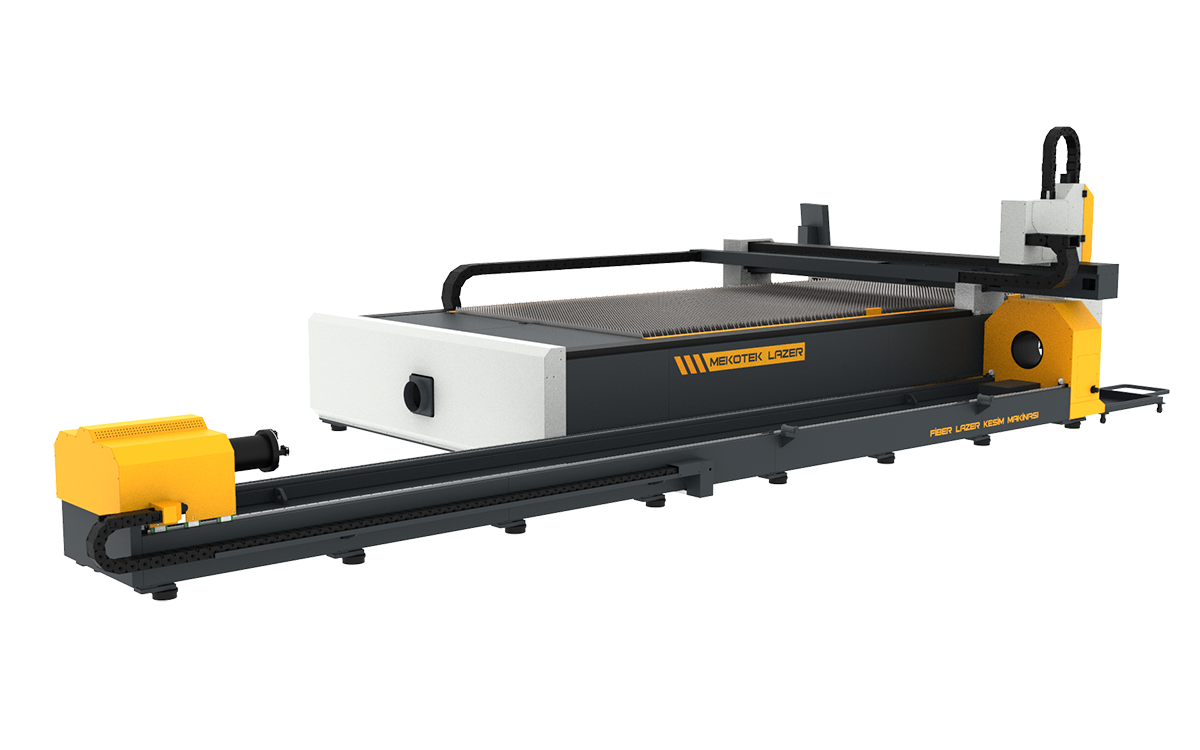

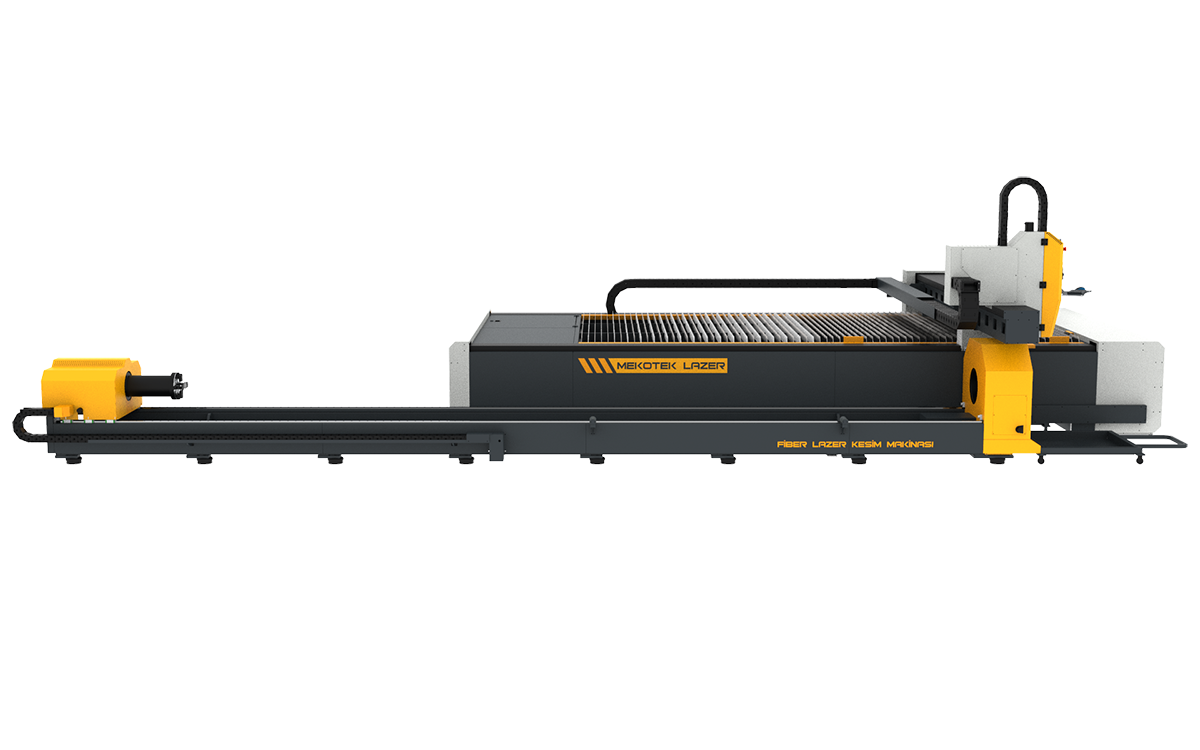

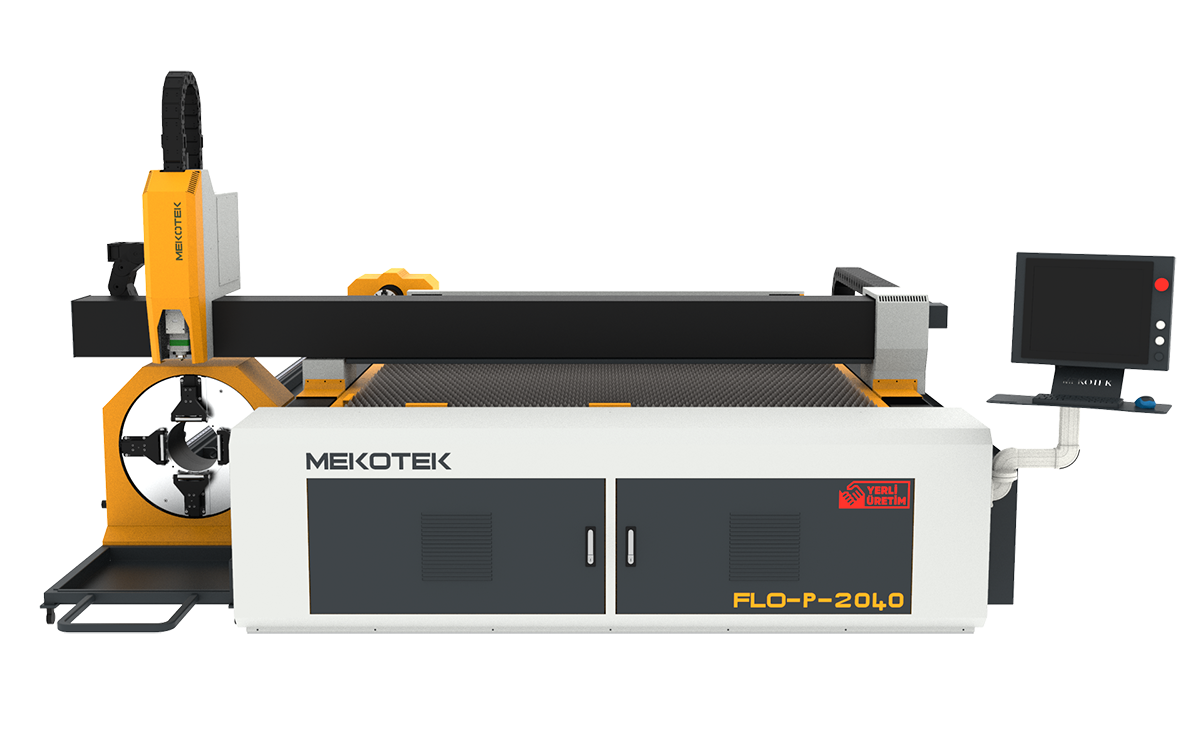

FLO-P 2040 – Open Type, Pipe Profile Fiber Laser

FLO-P 2040 - Open Type, Pipe Profile Fiber Laser

With its small footprint and low operating costs, it is the most suitable machine series for businesses with limited budget. less investment, economic and practical
It has a compact design that can be easily installed on an area of just 20 square meters 1kW, 2kW and 3kW power options.

The usage areas of this machine are mostly for advertisers, billboards, electrical cabinet manufacturers, water tank manufacturers, steel door manufacturers, metal furniture, coffee table and kitchenware production industries.

This fiber laser cutting machine’s biggest advantage is that it does not take up space because it is a single table, an advantage from transportation.

A very good solution for fast and serial jobs.

All of our machines are produced in European standards and we have a CE certificate

You don't need to buy two separate machines. You can cut both sheet metal and pipe profiles.

It saves space for to its compact structure.

One machine with two uses. cuts both metal sheets and metal tubes / profile.

Standard 6 meters pipe / profile cutting length, can be 9 meters if desired.

Pipe diameter can be used up to maximum 350 mm.

Chucks can be clamping and auto-centered with one button.

Standard nesting software program, it makes the parts to be cut ready for cutting very quickly without the need for an operator. It also has flycut cutting feature.

There are 1.5x3 mt, 2x4 mt or 2x6 mt cutting area options.

Our laser head has auto focus and Active Anti-collision Function an auto view feature that detects obstacles and moves automatically.

Cutting heads have automatic cooling.

The bridges we use in all our machines are made of aluminium alloy sheet-plate welding construction type and one piece. The fact that it is one piece ensures that the bridges are rigid and prevents the bridge from maintaining its form and deforming in case of impact, overlap or strain that may be encountered. In addition, thanks to its 3 times lighter structure compared to steel profile bridges, we can output high speeds and accelerations at lower engine Powers.

SPECIFICATIONSVALUE
Working Area2000 x 4000 mm
Loading Capacity1200 / 300 kg
X-Y Axis Travel2040 x 4050 mm
Z Axis Travel400 mm
X-Y-Z Axis Guideway4 Point Ball Caged
X-Y Axis Drive SystemRack
Z Axis Drive SystemBallscrew
X-Y Axis Speed80 m/min
Z Axis Speed30 m/min
X-Y Position Accuracy0,05 mm
X-Y Repeatability Accuracy0,03 mm
Max. Pofile Lenght600 mm
Max. Profile DimensionØ 200 mm
Laser SourceRaycus / Han’s / JPT
Laser Source Output Power1000 / 2000 / 3000 W
CNC Control SystemFscut
Laser Cutting HeadRaytools / BOCI / WSX
Assist GassesAir/Oxygen/Nitrogen
Cooling TypeWater Cooling
Machine Weight5500 kg
Machine Dimensions (WxLxH)4400 x 8150 x 1980 mm
Graphic Formatdwg / dxf / stp
Voltage380 / 50 Hz
CertificationsCE / ISO
Warranty2 Years
