| Feature | |

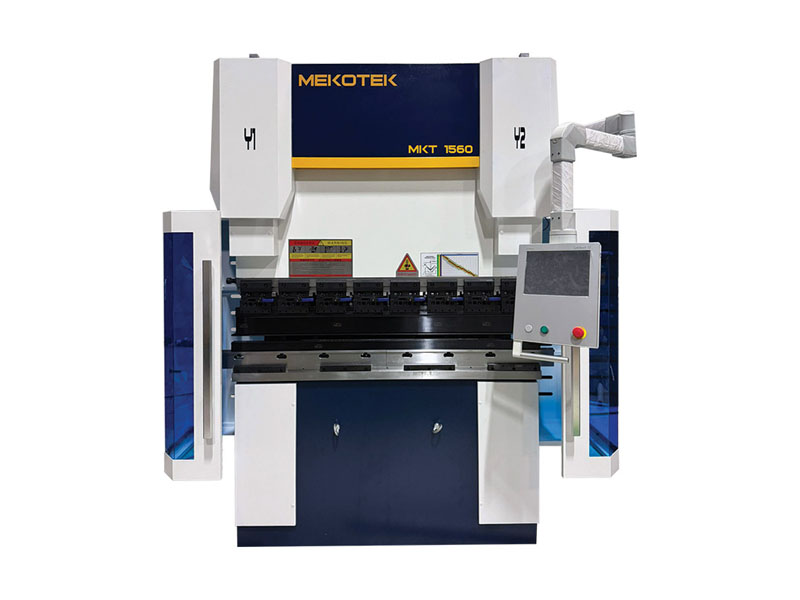

| Model | MKT 1560 |
| Bending Force | 600KN |
| Bending tonnage | 60T |
| Power Supply | 3PH / 380V / 50HZ |
| Bending Length (mm) | 1500mm |
| Workbench height | 900mm |
| Column spacing | 1000mm |
| Throat depth | 400mm |
| Slide stroke | 200mm |
| Maximum opening height | 470mm |
| Rapid descent speed (mm/sec) | 180mm/s |
| Return speed (mm/sec) | 140mm/s |
| Working speed (mm/sec) | 10mm/s |
| Rear gear (X-axis) stroke | 550mm |
| Maximum operating speed of the X-axis | 400mm/s |
| X-axis positioning accuracy | ± 0.05mm |
| X-axis repeat positioning accuracy | ± 0.02mm |
| Y-axis positioning accuracy | ± 0.02mm |
| Y-axis repeat positioning accuracy | ± 0.01mm |
| R-axis stroke | 150mm |
| Maximum operating speed of the R axis | 100mm/s |
| Working accuracy | Straight line : ± 0.2mm/m, Angle: ± 0.5 °/m |
| Number of CNC axises | 4 + 2 axis |
| Main motor power | 8.5KW |
| Fuel tank capacity | 200L |
| Machine Dimensions (length x width x height) | 2000 x 1500 x 2650mm |
| Machine weight | 3500kgs |
