Safe and High-Volume Production with Mekotek Quality

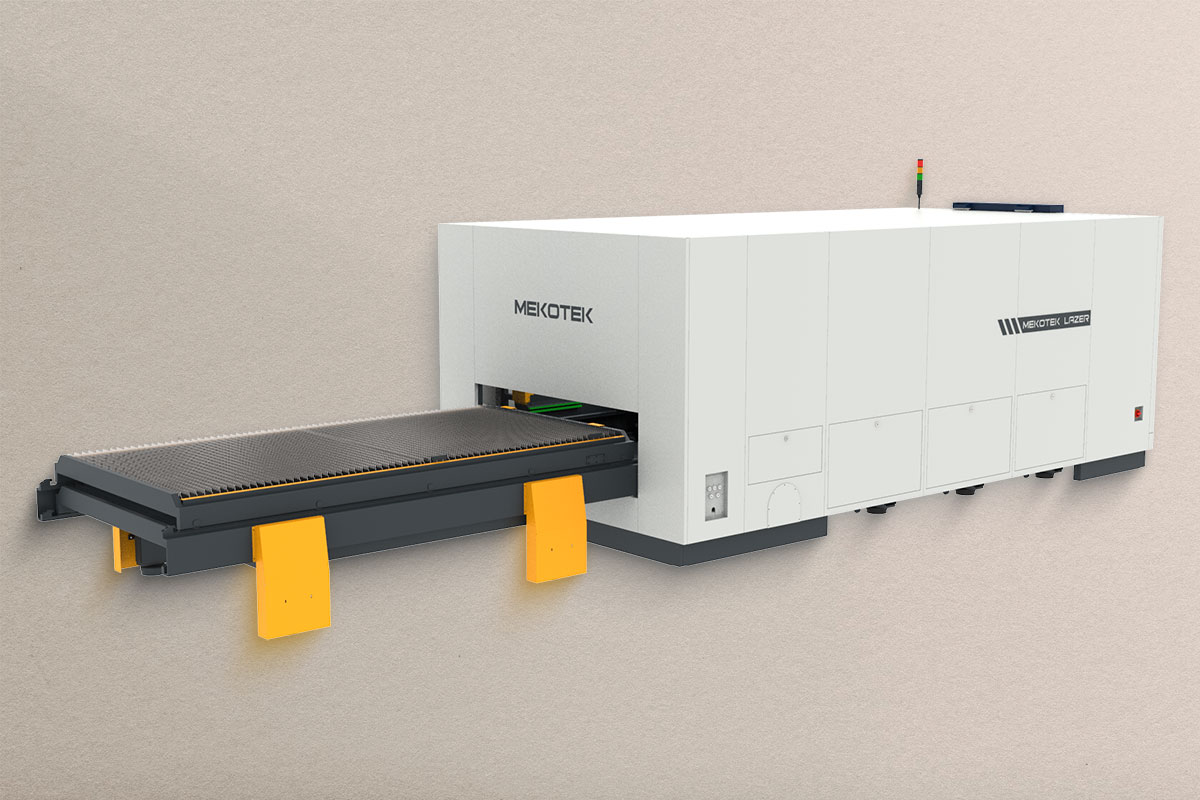

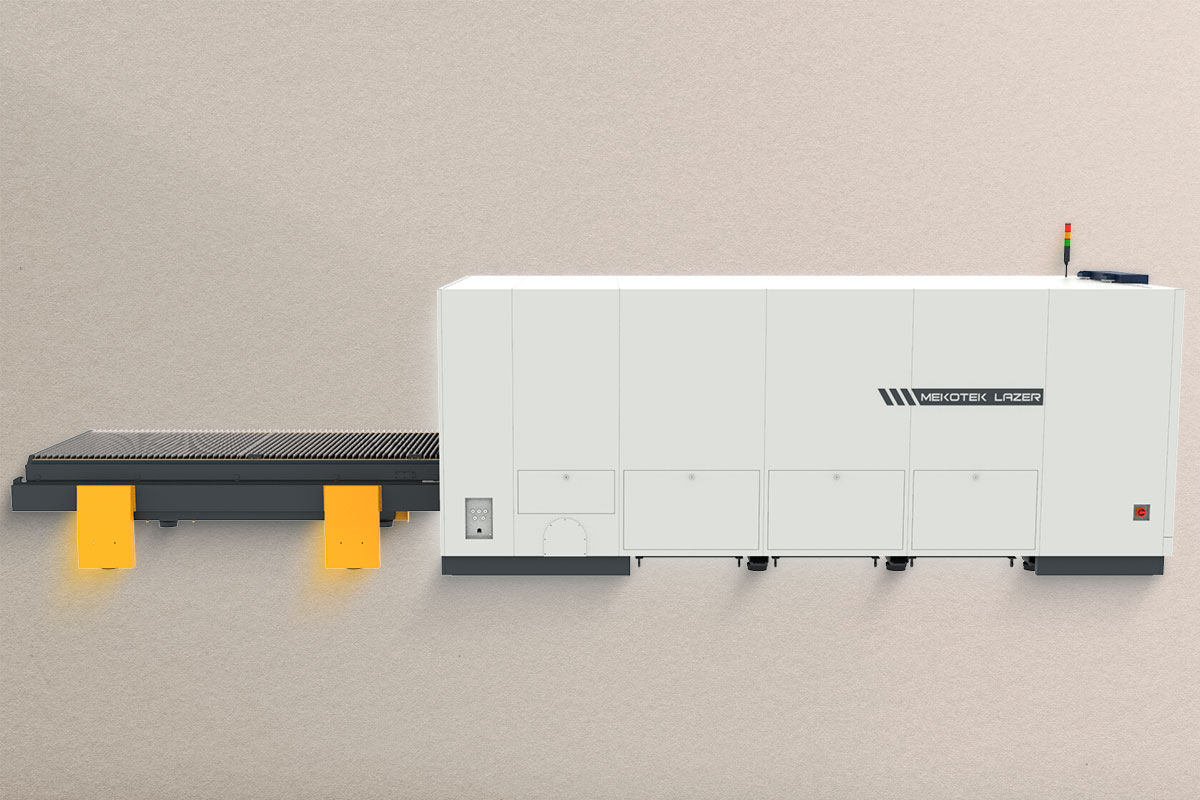

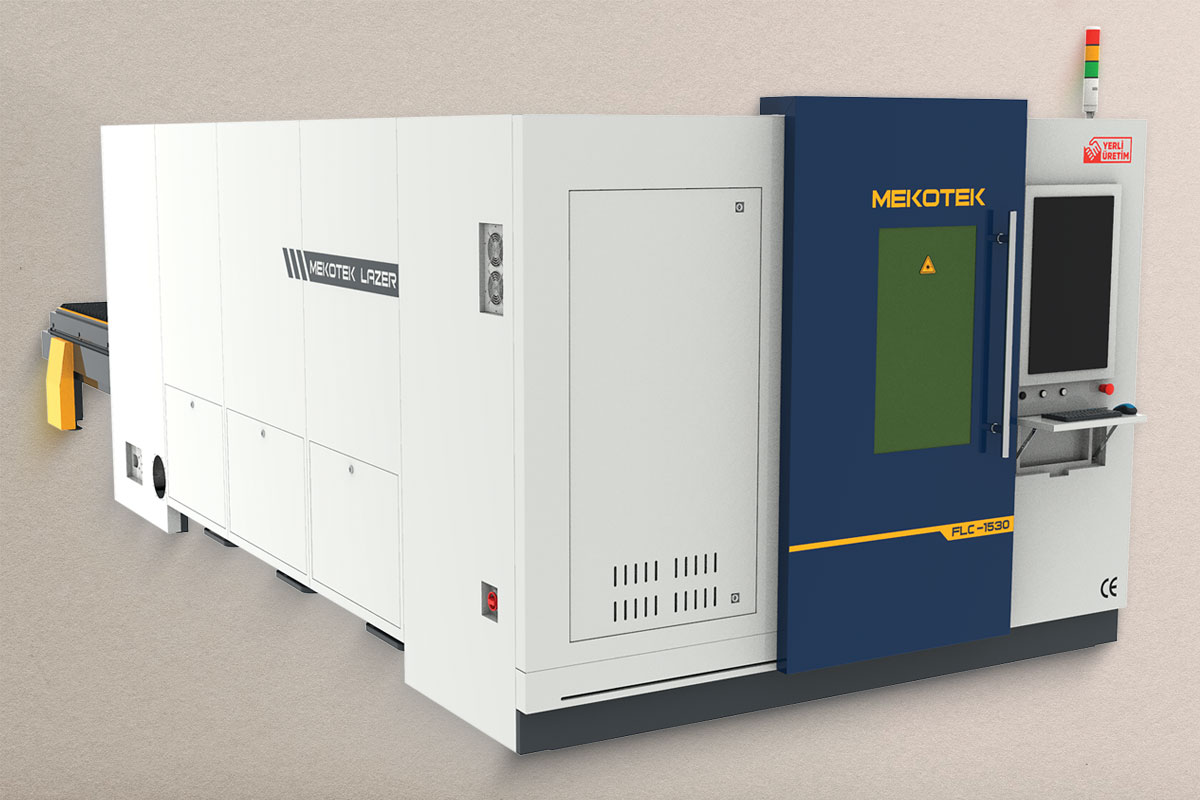

Our Mekotek FLC 1530 enclosed fiber laser model is the top choice for professionals seeking both workplace safety and high production speeds in a single unit. Developed in our modern 30,000 m² facilities with over 20 years of experience, this model proves its quality every day—not only in Turkey but also in industrial facilities around the world, from Europe to the Americas.
Like a Factory That Runs Nonstop
The greatest feature of this machine is that it never stops production, not even for a second. Thanks to its Automatic Double Table system, while the machine is cutting inside, the operator prepares the next batch of material outside. The tables switch places in just 10 seconds. In other words, the machine doesn’t sit idle while the operator loads material. With its sturdy 5,600 kg frame firmly anchored to the ground, our machine produces smooth, burr-free parts without any vibration, even at the highest speeds.
Why Should You Buy the Mekotek FLC 1530?
It is not only the quality of our machines that has made us the industry leader, but also the trust our customers place in us and the strength of our after-sales support. With the technical knowledge and industry experience we’ve gained over the years, we offer not just machines, but production solutions tailored specifically to your business.
Unlike the delays in obtaining parts and service uncertainties associated with imported machines, Mekotek guarantees immediate access to all replacement parts from stock and provides a 24-hour service guarantee. Ensuring your production runs smoothly is our top priority. With our extensive service network and team of experts, we’re here for you whenever you need us.
With the support of our 1,800+ satisfied customers and our corporate references, we’re ready to take your business into the future.
FLC 1530 Technical Specifications
|
FEATURES |
|
|---|---|
|
Working Area (mm) |
1500 x 3000 mm |
|
Maximum Load Capacity (Sheet Metal / Profile) (kg) |
1200 kg |
|
X-Y Axis Movement (mm) |
1520 x 3030 mm |
|
Z-Axis Movement (mm) |
300 mm |
|
X-Y-Z Axis Sliding |
4 Point Ball Caged |
|
X-Y Axis Drive System |
Rack |
|
Z-Axis Drive System |
Ballscrew |
|
X-Y Axis Speeds (Resultant Speed) (m/min) |
80 m/min |
|
Z-Axis Speed (m/min) |
30 m/min |
|
X-Y Positioning Accuracy (mm) |
±0,05 mm |
|
X-Y Repeatability (mm) |
±0,03 mm |
|
Table Change Time (sec) |
10 sn |
|
Laser Resonator |
Han’s / Raycus / JPT |
|
Laser Power |
2000 / 3000 / 4000 / 6000 / 12000 / 20000 / 30000 W |
|
CNC Control System |
Cypcut / Weihong / Mekotek |
|
Laser Cutting Head |
BOCI / Han’s / Raytools |
|
Auxiliary Cutting Gases |
Air/Oxygen/Nitrogen |
|
Cooling Type |
Water Cooling |
|
Machine Weight (kg) |
6500 kg |
|
Machine Dimensions (mm) |
2730 x 8825 x 2300 mm |
|
Graph Format |
dwg / dxf / stp |
|
Voltage |
380 / 50 Hz |
|
Certificates |
CE / ISO |
|
Warranty |
2 Years |
FLC 1530 Cutting Thicknesses
|
Thickness |
2000 w |
3000 w |
4000 w |
6000 w |
12000 w |
20000 w |
30000 w |
|---|---|---|---|---|---|---|---|
|
Carbon Steel |
20 mm |
22 mm |
25 mm |
25 mm |
40 mm |
50 mm |
80 mm |
|
Stainless Steel |
8 mm |
10 mm |
12 mm |
20 mm |
40 mm |
45 mm |
65 mm |
|
Aluminum |
6 mm |
8 mm |
10 mm |
16 mm |
40 mm |
45 mm |
50 mm |
|
Brass |
5 mm |
6 mm |
8 mm |
12 mm |
16 m |
20 mm |
25 mm |
