Three Amazing Features in One Machine

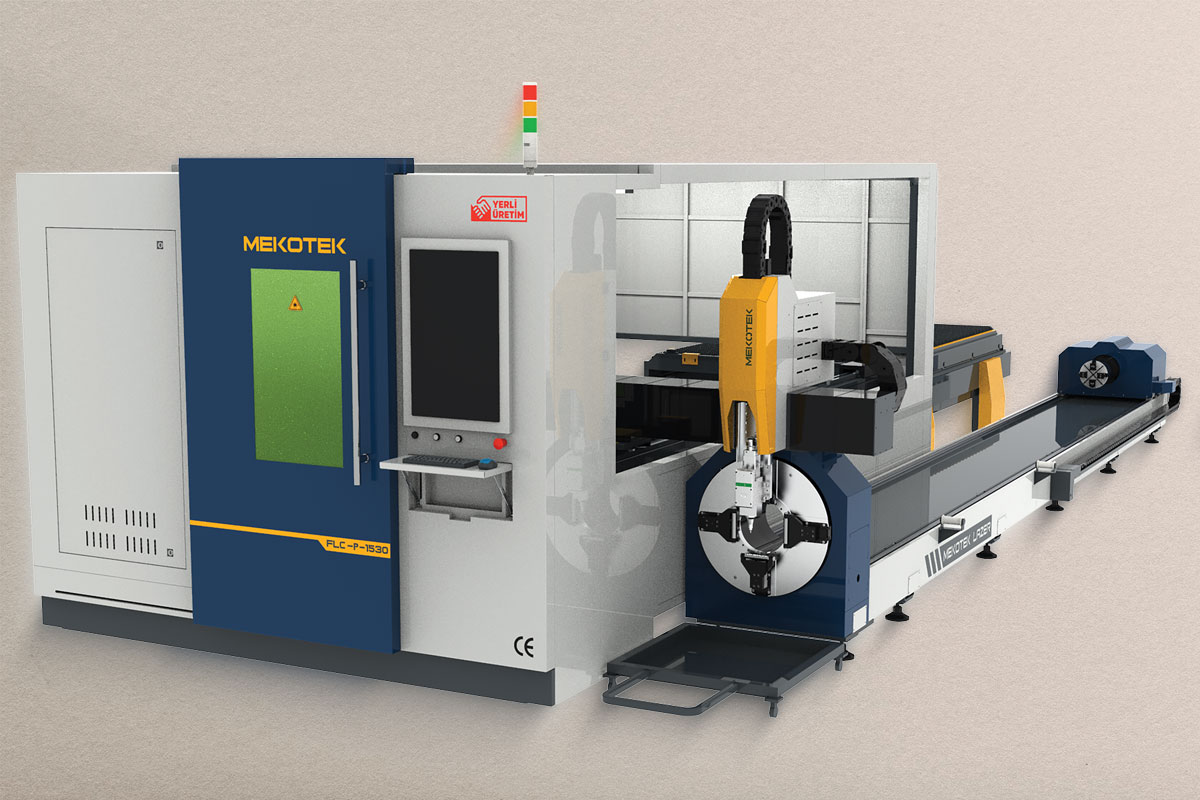

The Mekotek FLC P 1530 Enclosed-Type & Tube/Profile Fiber Laser is the preferred choice for professional businesses that know no limits in production and are ready to take on any job. What sets this machine apart is that it combines three essential features in a single unit: Fully Enclosed Safety, Dual Table Speed, and Professional Tube/Profile Processing. There’s no need to waste space and budget on separate machines for both sheet metal cutting and profile processing in your factory. The FLC P 1530 operates as a standalone production hub.
“Rock-Solid” Durability with an 8 Metric Tons Chassis
This machine truly lives up to the concept of “heavy-duty.” With its massive body weighing 8,000 kg (8 metric tons), it is significantly heavier than other machines in its class. Why is it so heavy? Because it must flawlessly handle both the rapid movement of the dual tables and the rotational force of the side-mounted profile unit. Thanks to the machine’s weight, there is absolutely no deviation – not even a millimeter – and no vibration when cutting the most complex profile patterns or the most delicate sheet metal details.
Safe, Clean, and Versatile
The Ultimate in Workplace Safety: The enclosed cabin design keeps laser light and smoke inside. Whether in your urban workshop or your strictly regulated factory, your employees can work safely in a smoke-free environment.
No Downtime: Thanks to the automatic dual-table system, the machine never stops. While the sheet metal is being cut inside, you can prepare the next job outside. And when you need to cut profiles, the side unit kicks in; you can machine pipes up to Ø220 mm in diameter, as well as square and rectangular profiles, with the precision of a work of art.
High Z-Axis (350 mm): Thanks to the increased head height, you can work comfortably and flexibly without the risk of the head colliding during profile cuts.
Experience the Difference of Working with Mekotek
When investing in such a comprehensive and hybrid technology, you need to work with not just a seller, but a manufacturer who knows this machine inside and out.
With the FLC P 1530, you’re not just adding a machine to your business, you’re gaining a technology partner that will double your production capacity.
FLC P 1530 Technical Specifications
|
FEATURES |
|
|---|---|
|
Working Area (mm) |
1500 x 3000 mm |
|
Maximum Load Capacity (Sheet Metal / Profile) (kg) |
1200 kg |
|
X-Y Axis Movement (mm) |
1520 x 3030 mm |
|
Z-Axis Movement (mm) |
350 mm |
|
X-Y-Z Axis Sliding |
4 Point Ball Caged |
|
X-Y Axis Drive System |
Rack |
|
Z-Axis Drive System |
Ballscrew |
|
X-Y Axis Speeds (Resultant Speed) (m/min) |
80 m/min |
|
Z-Axis Speed (m/min) |
30 m/min |
|
X-Y Positioning Accuracy (mm) |
±0,05 mm |
|
X-Y Repeatability (mm) |
±0,03 mm |
|
Table Change Time (sec) |
10 sn |
|
Max. Profile Length (mm) |
6100 mm |
|
Max. Profile Dimensions (mm) |
Ø 220 |
|
Laser Resonator |
Han’s / Raycus / JPT |
|
Laser Power |
1000 / 2000 / 3000 / 4000 / 6000 / 12000 W |
|
CNC Control System |
Cypcut / Weihong / Mekotek |
|
Laser Cutting Head |
BOCI / Han’s / Raytools |
|
Auxiliary Cutting Gases |
Air/Oxygen/Nitrogen |
|
Cooling Type |
Water Cooling |
|
Machine Weight (kg) |
8000 kg |
|
Machine Dimensions (mm) |
3610 x 9430 x 2300 mm |
|
Graph Format |
dwg / dxf / stp |
|
Voltage |
380 / 50 Hz |
|
Certificates |
CE / ISO |
|
Warranty |
2 Years |
FLC P 1530 Cutting Thicknesses
|
Thickness |
1000 w |
2000 w |
3000 w |
4000 w |
6000 w |
12000 w |
|---|---|---|---|---|---|---|
|
Carbon Steel |
10 mm |
20 mm |
22 mm |
25 mm |
25 mm |
40 mm |
|
Stainless Steel |
5 mm |
8 mm |
10 mm |
12 mm |
20 mm |
40 mm |
|
Aluminum |
3 mm |
6 mm |
8 mm |
10 mm |
16 mm |
40 mm |
|
Brass |
3 mm |
5 mm |
6 mm |
8 mm |
12 m |
16 m |
