6 Meters of Uninterrupted Power: Break Through the Limits in Industrial Production

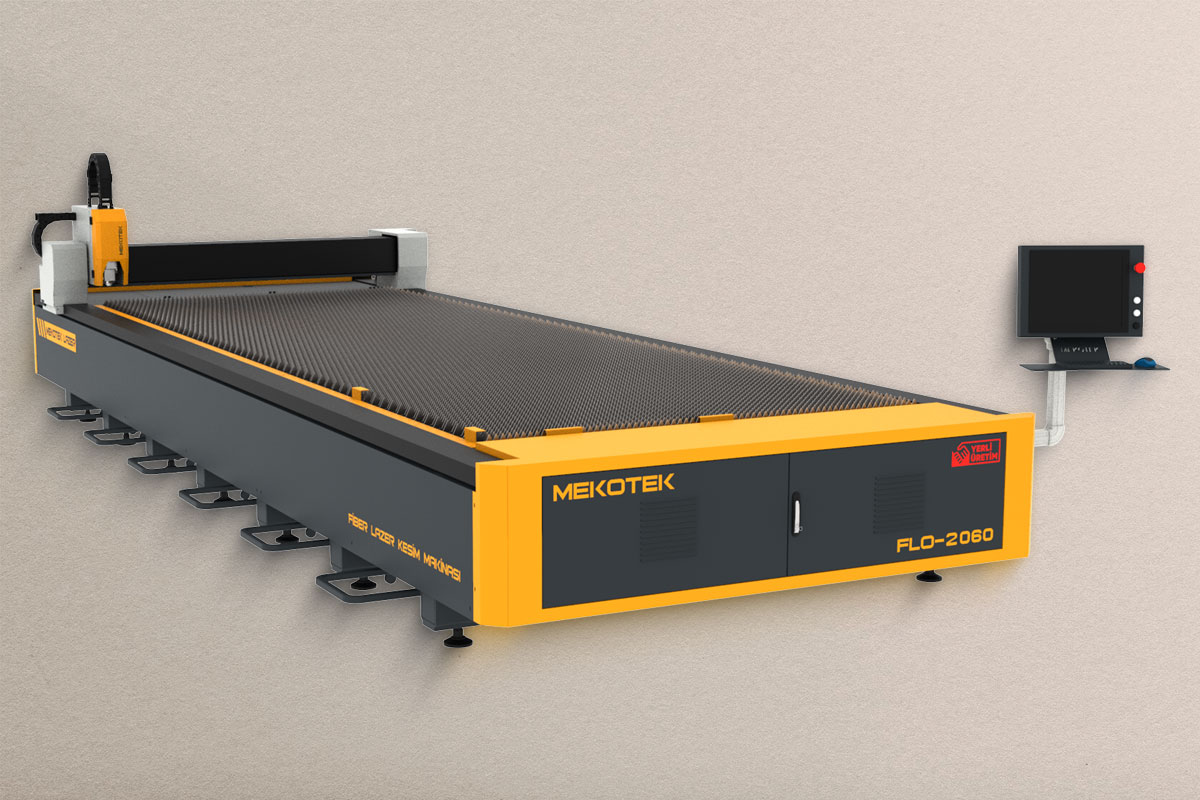

The Mekotek FLO 2060 Open-Type Fiber Laser is designed for businesses looking to take their production capacity beyond industry standards. By eliminating the size limitations commonly encountered in the industry with its massive 2000x6000mm processing area, this model is engineered to help you use raw materials as efficiently as possible. We offer the freedom to process standard 6-meter sheet metal plates in a single piece, without the need for pre-processing or guillotine cutting.
Engineering Solutions for Major Projects
This machine is not just a cutting table, it’s your business’s efficiency strategy. Especially in industries that require long parts, such as trailer manufacturing, steel construction, the defense industry, and heavy machinery body production. The FLO 2060 changes the game. Its open-frame design allows heavy metals, up to 6 meters long and weighing up to 1,900 kg – to be loaded from the worksite onto the machine via an overhead crane in a matter of seconds. It completely eliminates the loading difficulties and time losses associated with enclosed systems.
The FLO 2060’s 5.4-metric-ton rigid body structure guarantees vibration-free and smooth cutting even under heavy-duty industrial conditions. It maintains micron-level precision even during long-run cuts, upholding the highest standards for precision metal cutting even under the most extreme conditions. Additionally, its wide table design offers a unique “nesting” advantage for contract cutting centers; by fitting thousands of small parts onto a single sheet, you minimize downtime at the machine.
Mekotek Service Guarantee and the Advantage of Europen Production
With an investment of this magnitude, the support behind the machine is just as important as its technical capabilities. At Mekotek Lazer, the advantage of domestically manufactured equipment eliminates the uncertainties regarding spare parts and service that often arise with imported machines. When you work with us, you’re not just purchasing a machine; you’re also integrating our fast technical service network—which reaches every corner of Turkey—and our ability to supply parts immediately from stock into your business. From installation to training, we’re by your side at every stage to ensure your production runs seamlessly.
Growing your business with industrial laser technologies is now much easier and more reliable with the FLO 2060.
FLO-2040 Technical Specifications
|
FEATURES |
|
|---|---|
|
Working Area (mm) |
2000 x 6000 mm |
|
Maximum Load Capacity (Sheet Metal / Profile) (kg) |
1900 kg |
|
X-Y Axis Movement (mm) |
2020 x 6080 mm |
|
Z-Axis Movement (mm) |
100 mm |
|
X-Y-Z Axis Sliding |
4 Point Ball Caged |
|
X-Y Axis Drive System |
Rack |
|
Z-Axis Drive System |
Ballscrew |
|
X-Y Axis Speeds (Resultant Speed) (m/min) |
80 m/min |
|
Z-Axis Speed (m/min) |
30 m/min |
|
X-Y Positioning Accuracy (mm) |
±0,05 mm |
|
X-Y Repeatability (mm) |
±0,03 mm |
|
Laser Resonator |
Han’s / Raycus / JPT |
|
Laser Power |
1000 / 2000 / 3000 / 4000 / 6000 W |
|
CNC Control System |
Cypcut / Weihong / Mekotek |
|
Laser Cutting Head |
BOCI / Han’s / Raytools |
|
Auxiliary Cutting Gases |
Air/Oxygen/Nitrogen |
|
Cooling Type |
Water Cooling |
|
Cooling Type |
5400 kg |
|
Machine Dimensions (mm) |
2825 x 7822 x 1980 mm |
|
Graph Format |
dwg / dxf / stp |
|
Voltage |
380 / 50 Hz |
|
Certificates |
CE / ISO |
|
Warranty |
2 Years |
FLO-2040 Cutting Thicknesses
|
Thickness |
1000 w |
2000 w |
3000 w |
4000 w |
6000 w |
|---|---|---|---|---|---|
|
Carbon Steel |
10 mm |
20 mm |
22 mm |
25 mm |
25 mm |
|
Stainless Steel |
5 mm |
8 mm |
10 mm |
12 mm |
20 mm |
|
Aluminum |
3 mm |
6 mm |
8 mm |
10 mm |
16 mm |
|
Brass |
3 mm |
5 mm |
6 mm |
8 mm |
12 mm |
