FLO 30120 PRO 20 kW Plasma Type Fiber Laser

Unlimited Power and Precision for Large-Scale Projects

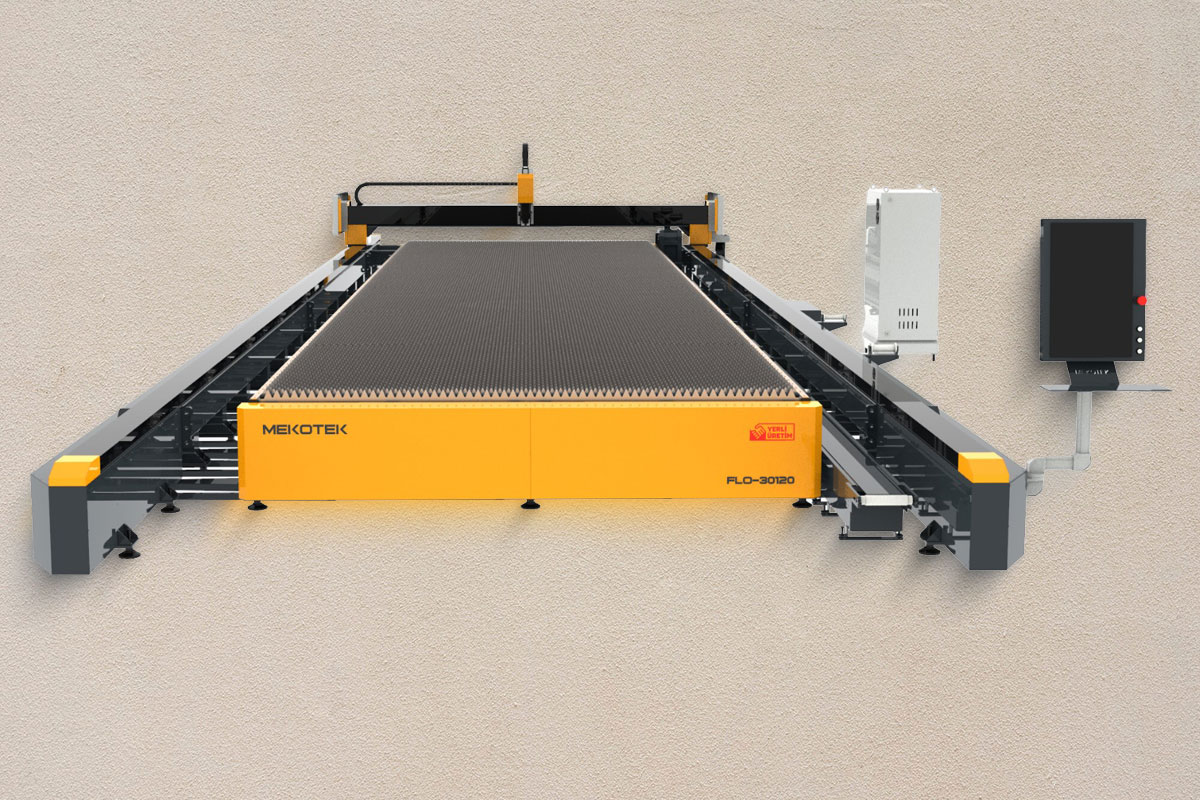

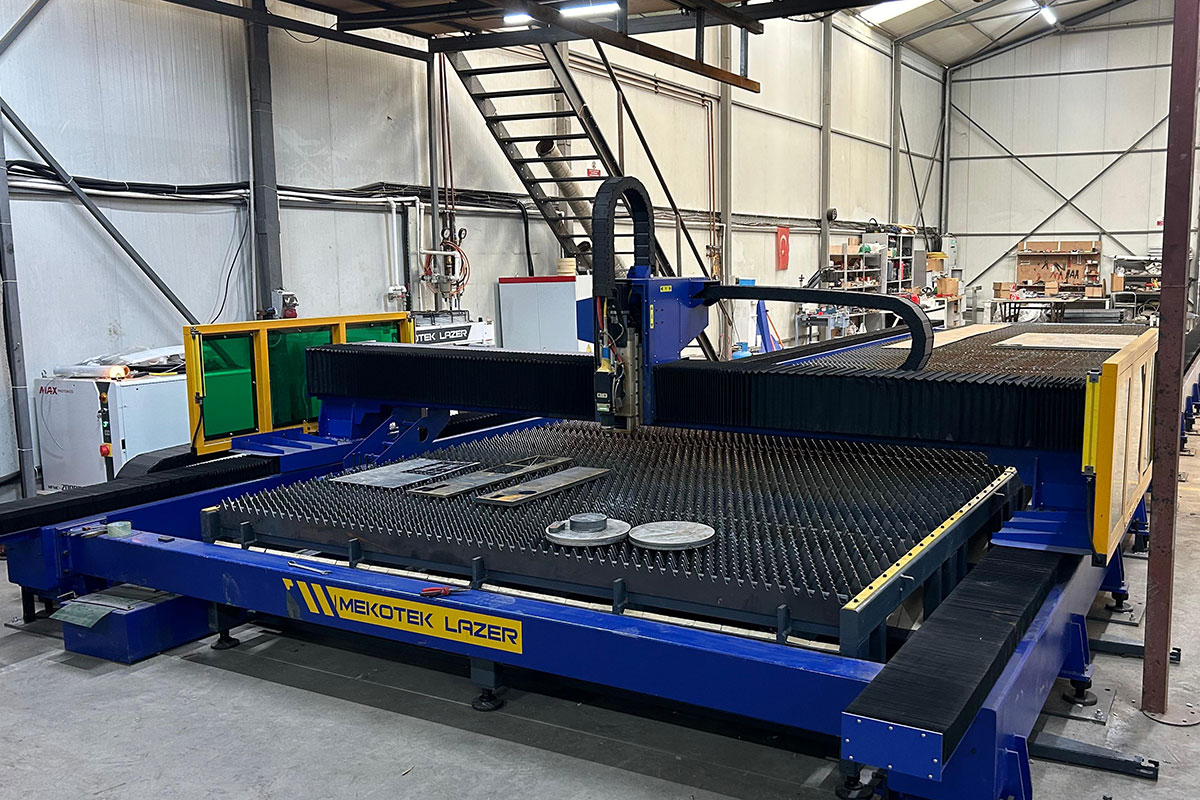

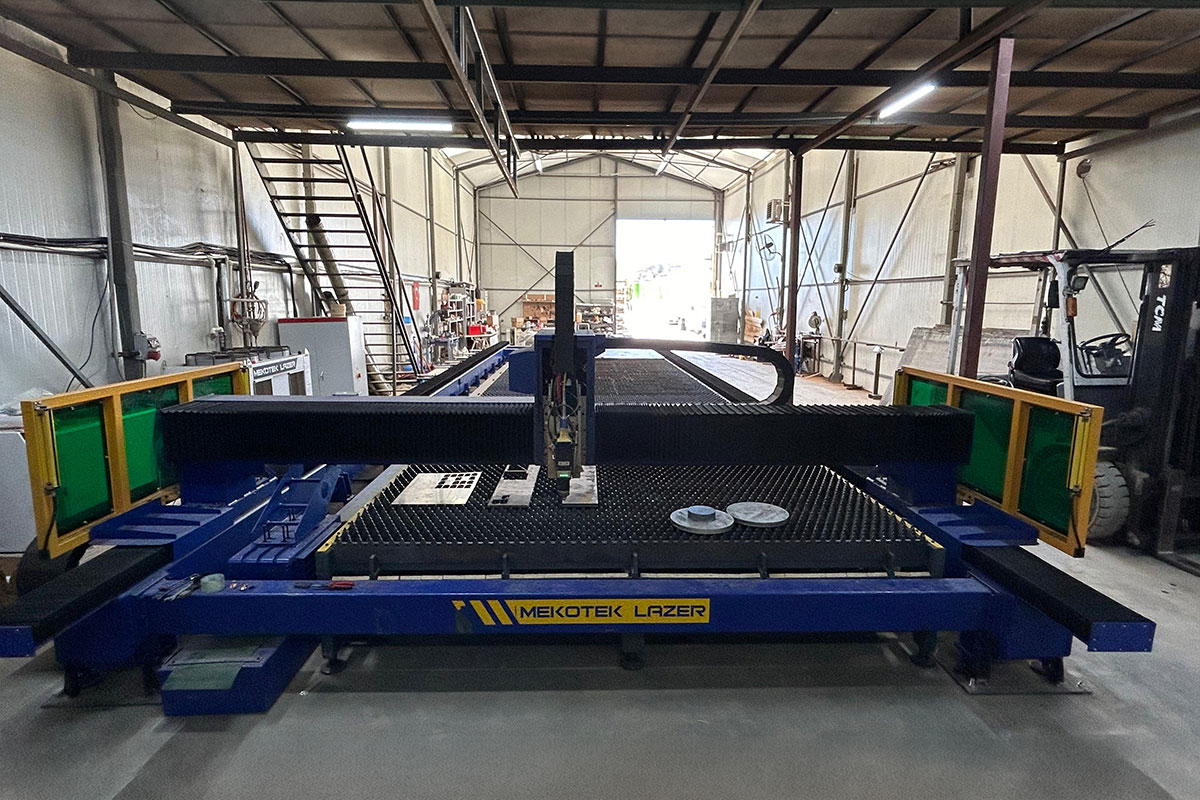

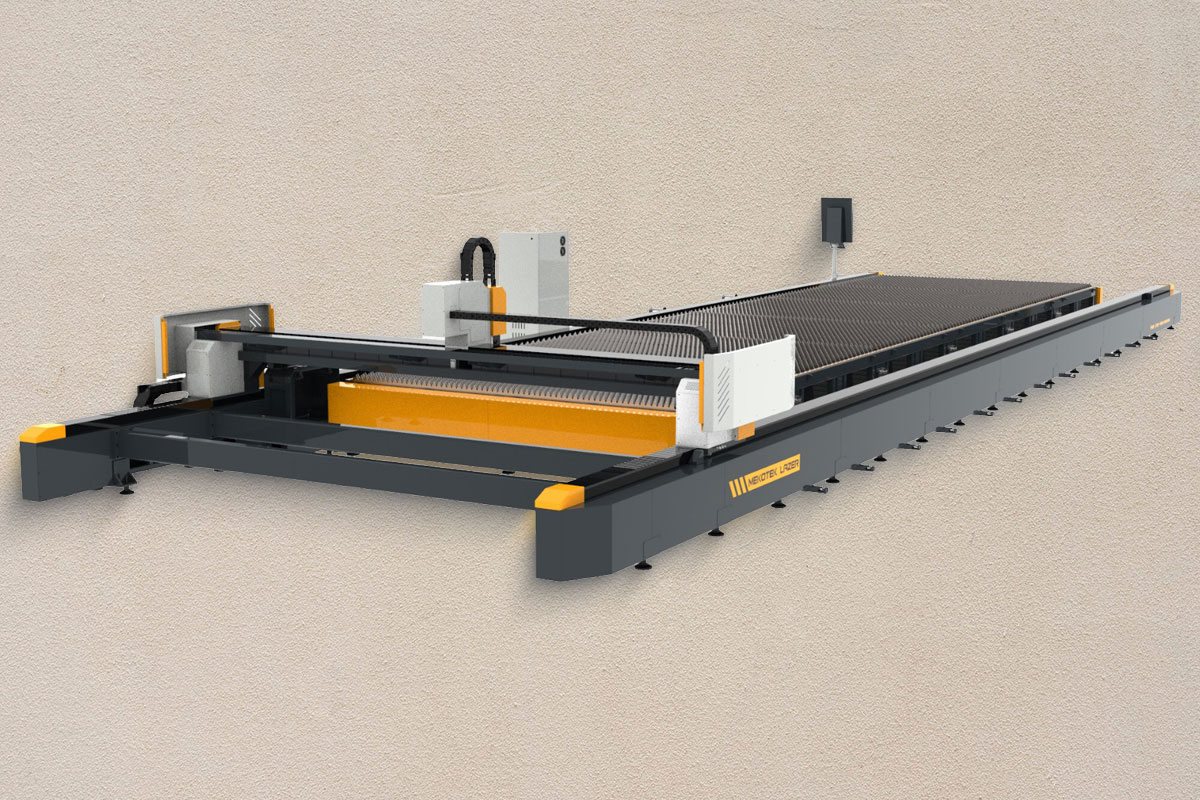

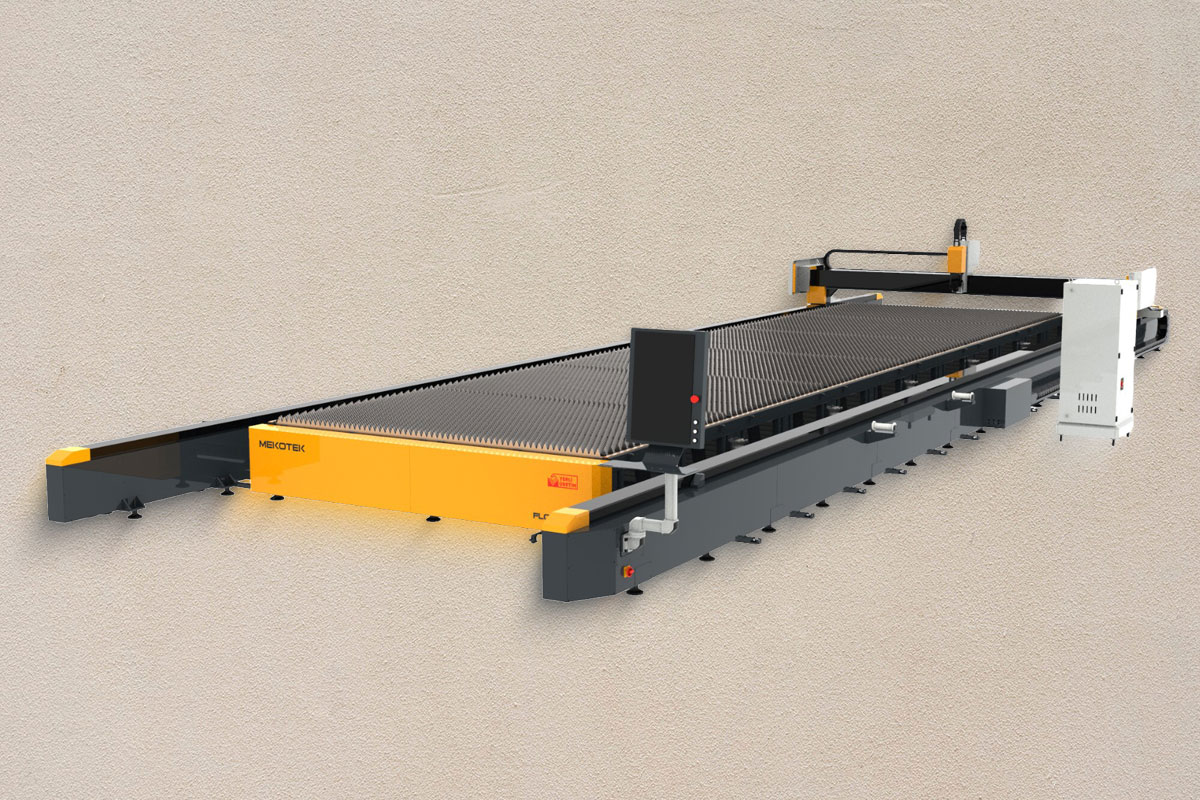

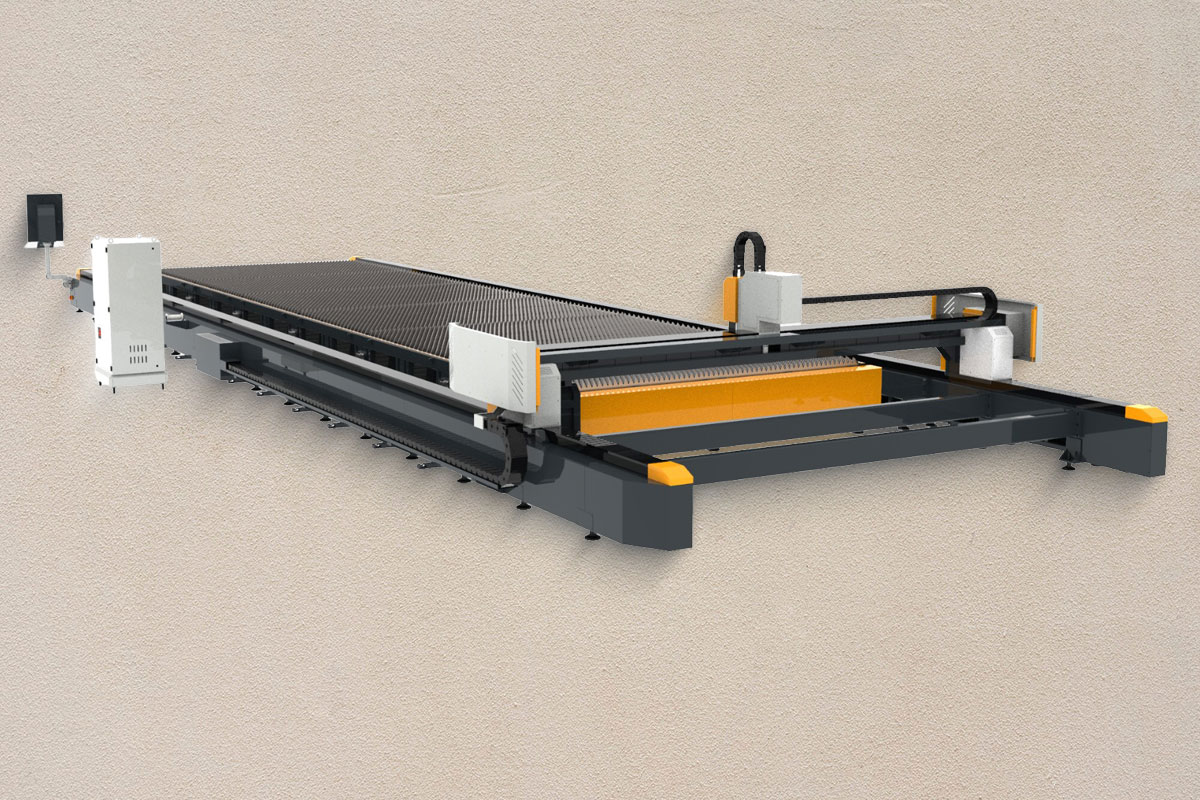

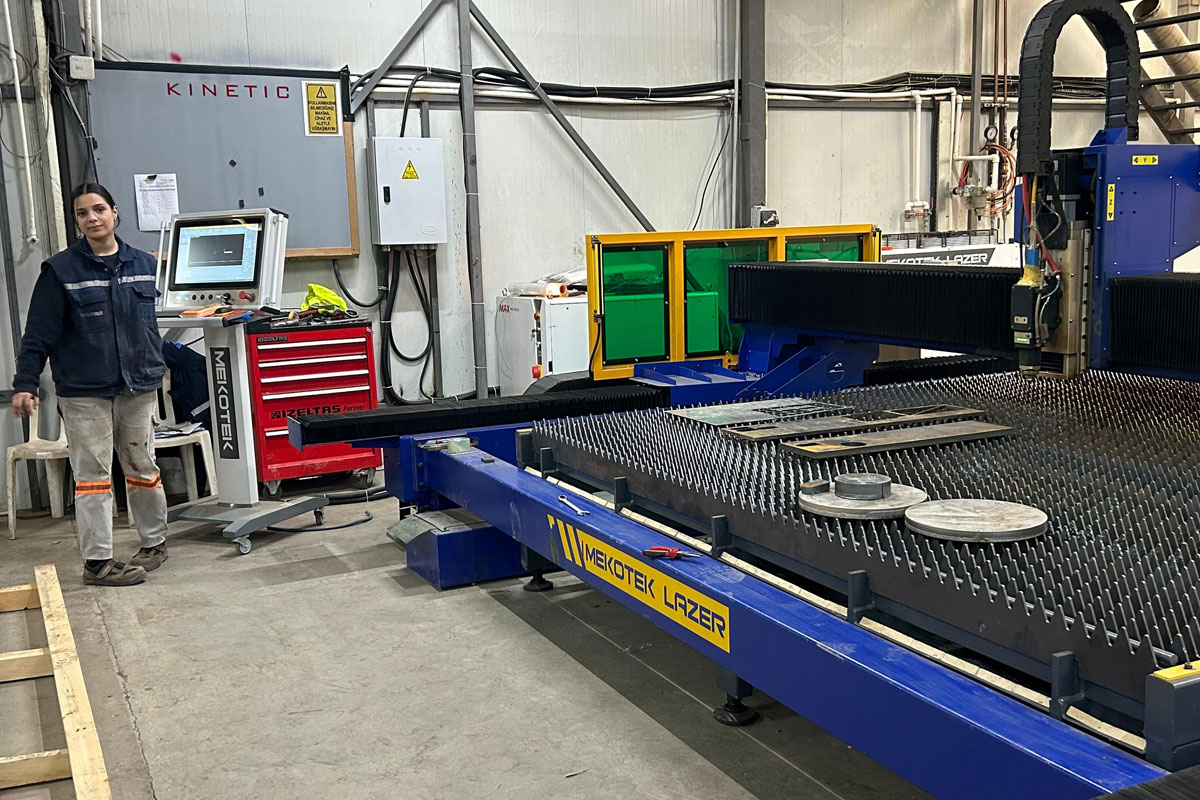

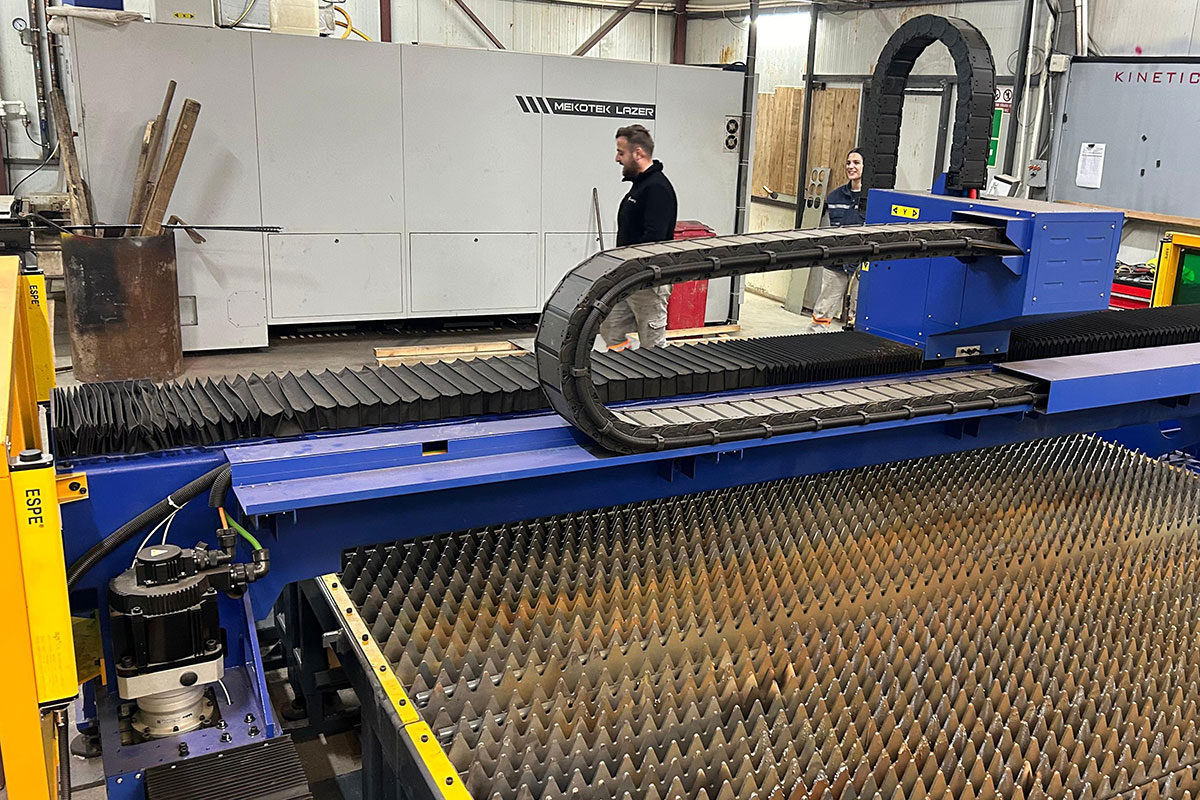

The FLO 30120, one of Mekotek Lazer’s newest and most powerful models, is specifically designed for heavy industry and large-scale metal processing needs. With its massive cutting area of 3,000 x 12,000 mm, it enables the processing of very large plates in a single pass. Its plasma-type open-frame design provides the operator with 360-degree freedom of movement during material loading and unloading, maximizing operational speed.

Unmatched Power Options from 12 kW to 40 kW

Designed to process industrial-grade materials as easily as cutting butter, the FLO 30120 PRO is available with laser power options of 12 kW, 20 kW, 30 kW, and 40 kW. This high power capacity not only increases cutting speed but also ensures a smooth, burr-free surface finish even on very thick sheets.

Why FLO 30120 PRO?

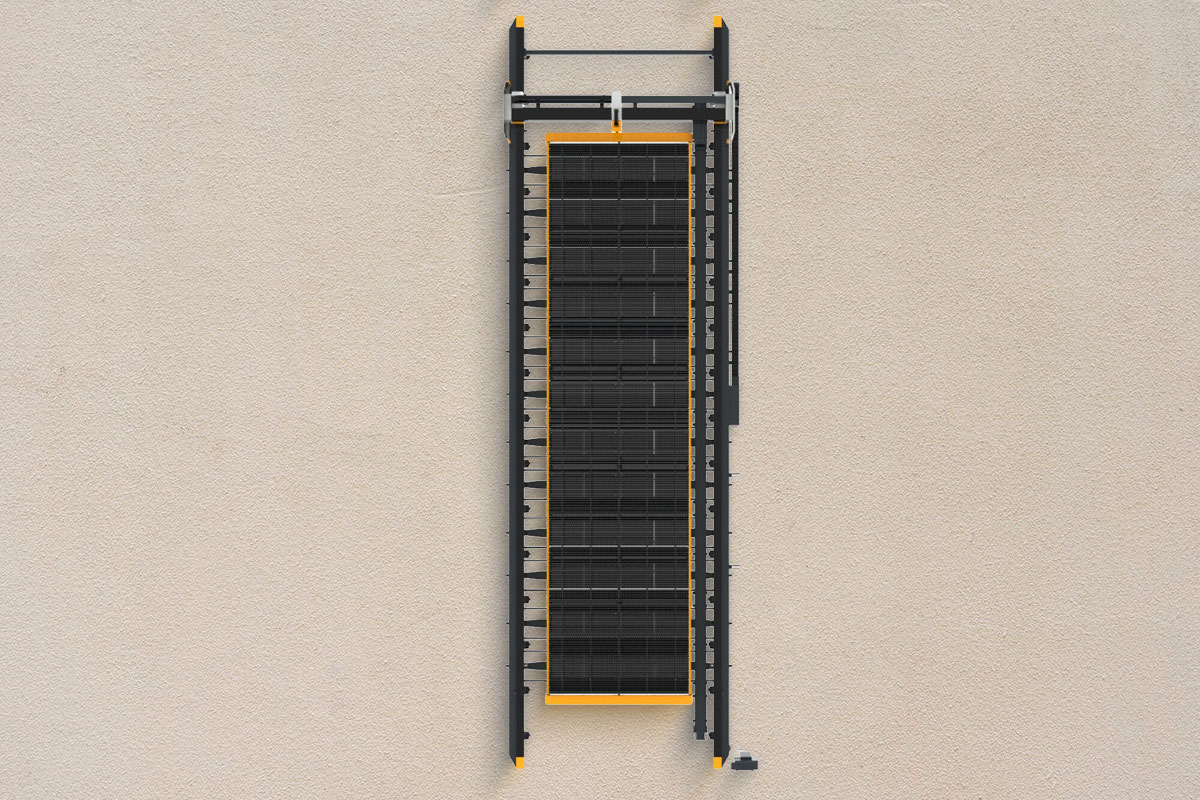

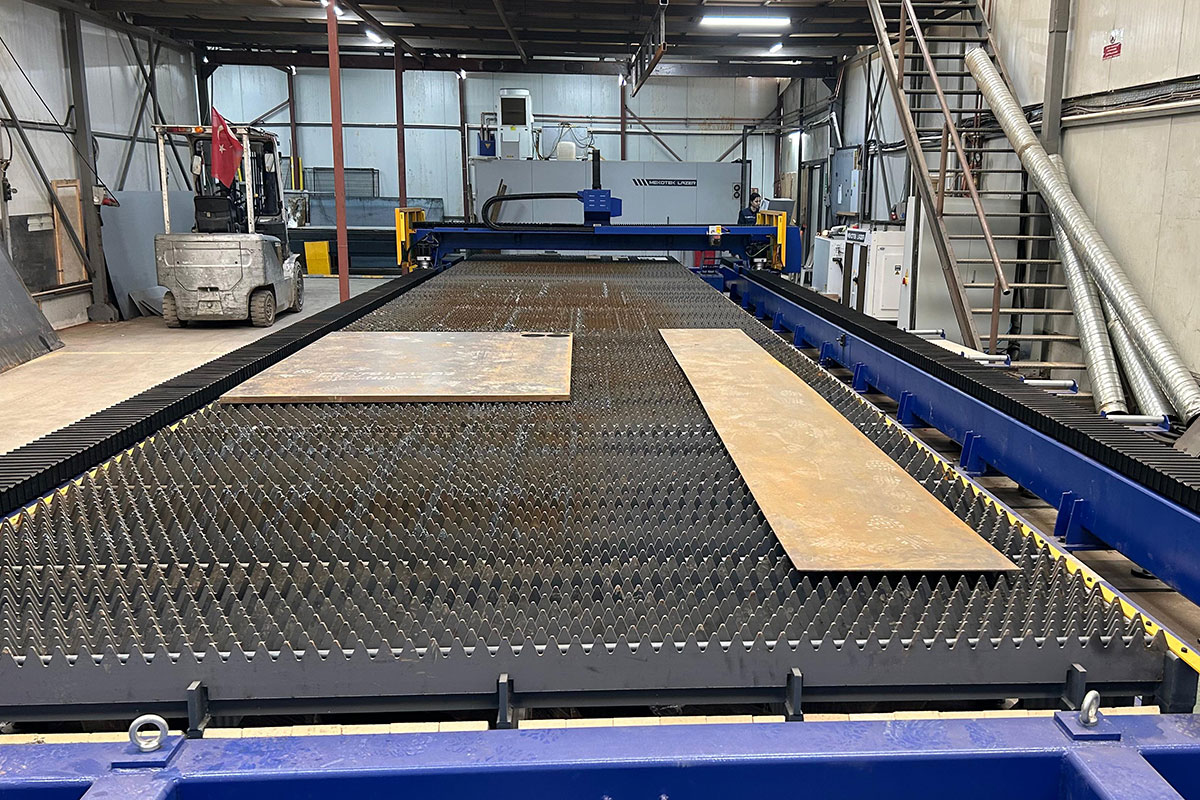

Huge Cutting Area: With a cutting table ranging from 3 meters to 12 meters, it allows for the processing of large-sized sheet metal without breaking it apart and with zero waste.

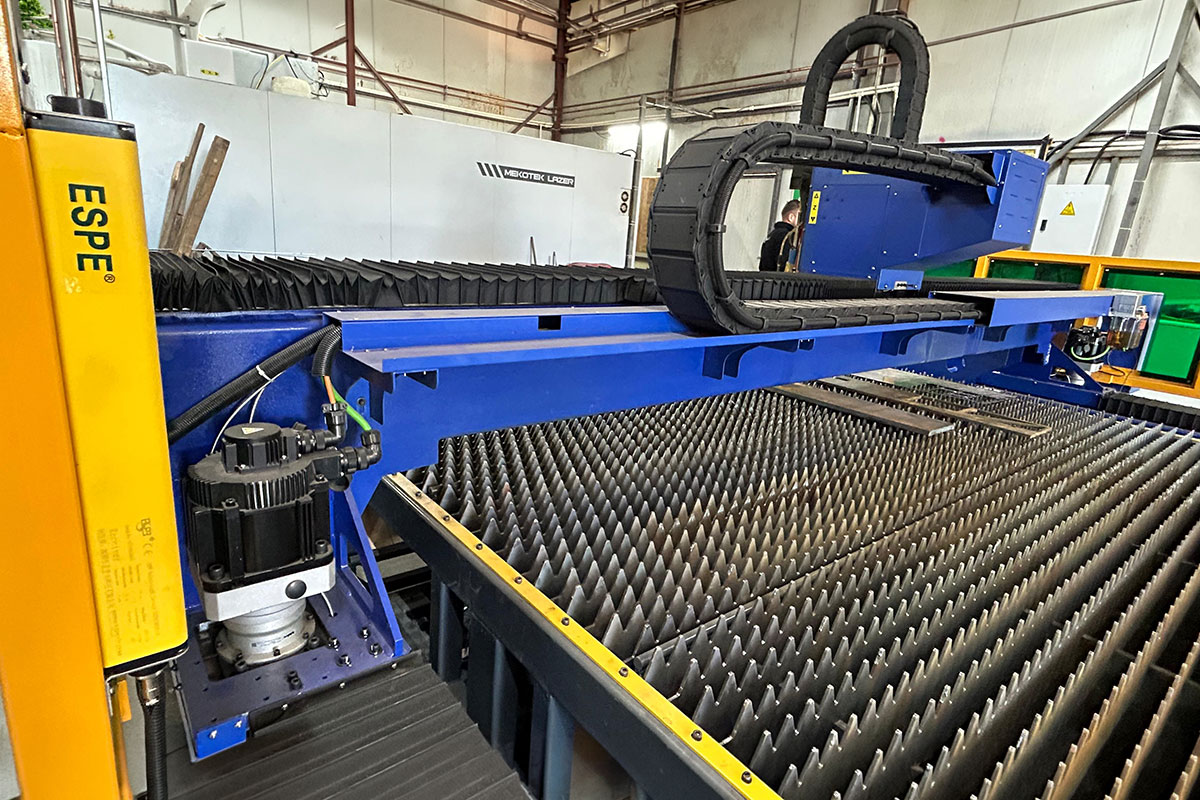

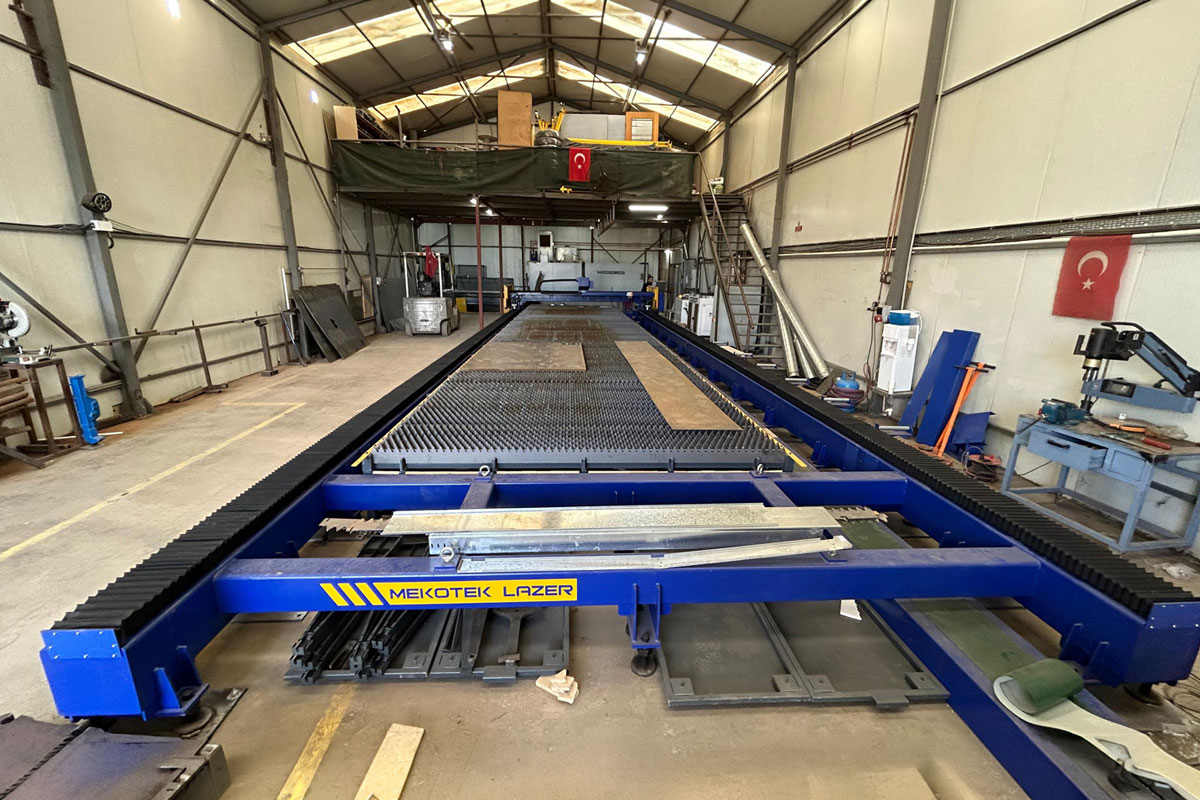

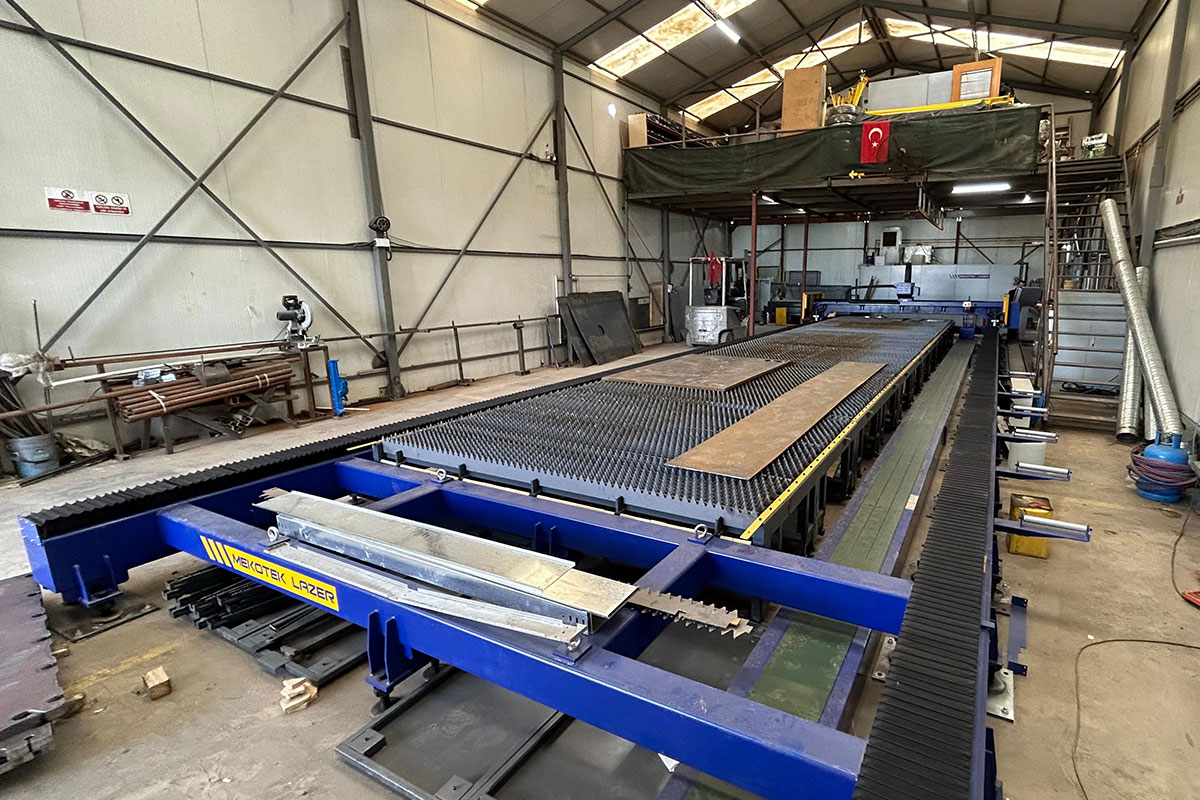

Plasma-Type Design: Thanks to the stable rail system mounted on the floor, millimeter-level precision is maintained even during long-run cuts.
High Power Efficiency: With ultra-high power options (up to 40 kW), achieve the fastest results on all metals – from stainless steel to aluminum, and from carbon steel to copper.
User-Friendly Interface: Easily manage complex cutting plans with a dynamic control panel and modern software support.
Guarantee of European Production: Sustainable production support through Mekotek Laser’s quality and extensive service network.

Your Industrial Solutions Partner

The FLO 30120 PRO is not just a cutting machine – it’s the most strategic component of your production line. This technology, which minimizes time loss in large-scale production, reduces labor costs, and standardizes precision, is ready to add value to your factory through Mekotek Laser engineering.

FLO 30120 PRO Technical Specifications

FEATURES
Working Area (mm)	1500 x 12000 mm
Maximum Load Capacity (Sheet Metal / Profile) (kg)	2500 kg
X-Y Axis Movement (mm)	1520 x 12030 mm
Z-Axis Movement (mm)	350 mm
X-Y-Z Axis Sliding	4 Point Ball Caged
X-Y Axis Drive System	Rack
Z-Axis Drive System	Ballscrew
X-Y Axis Speeds (Resultant Speed) (m/min)	80 m/min
Z-Axis Speed (m/min)	30 m/min
X-Y Positioning Accuracy (mm)	±0,05 mm
X-Y Repeatability (mm)	±0,03 mm
Laser Resonator	Han’s / Raycus / JPT
Laser Power	12000 / 20000 / 30000 / 40000 W
CNC Control System	Cypcut / Weihong / Mekotek
Laser Cutting Head	BOCI / Han’s / Raytools
Auxiliary Cutting Gases	Air/Oxygen/Nitrogen
Cooling Type	Water Cooling
Machine Weight (kg)	7100 kg
Machine Dimensions (mm)	3190 x 12400 x 2000 mm
Graph Format	dwg / dxf / stp
Voltage	380 / 50 Hz
Certificates	CE / ISO
Warranty	2 Years

FLO D P 1530 Cutting Thicknesses

Thickness	1200 w	20000 w	30000 w	40000 w
Carbon Steel	40 mm	50 mm	70 mm	100 mm
Stainless Steel	40 mm	45 mm	65 mm	75 mm
Aluminum	40 mm	45 mm	60 mm	70 mm
Brass	16 mm	20 mm	25 mm	30 mm
