The Power of Two Machines in a Single Chassis: Speed, Flexibility, and Total Control

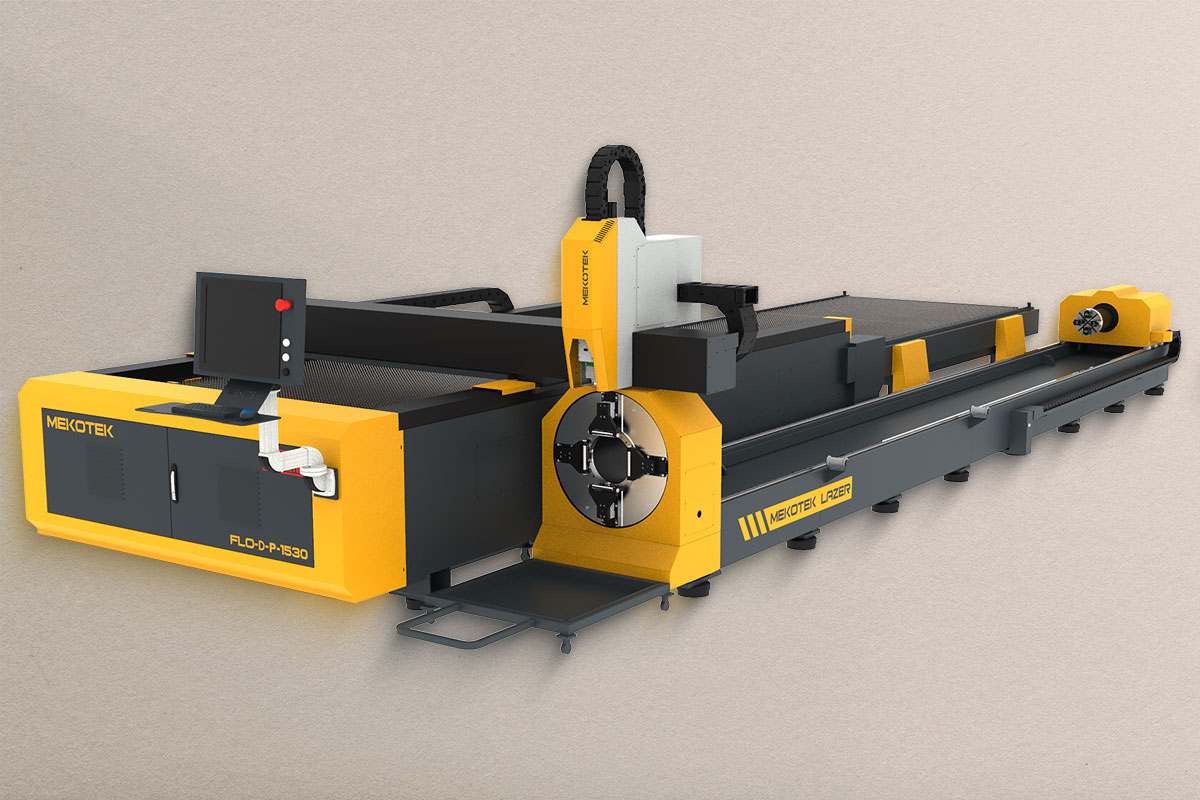

The Mekotek FLO D P 1530 Open-Type Dual-Table & Pipe Profile Fiber Laser is the ultimate solution for visionary businesses seeking versatility on the production floor. This machine combines the uninterrupted sheet cutting speed offered by a dual-table (shuttle) system with a professional pipe and profile cutting station in a single chassis. You no longer need to invest in separate machines for sheet metal cutting and profile processing. In addition to its 1500x3000mm sheet metal processing capacity, it doubles your factory’s production capabilities by processing pipes and profiles up to Ø220mm in diameter and 6 meters in length with the same precision.
Unlimited Applications, One Central Hub
The hybrid technology of the FLO D P 1530 was developed specifically for industries where both sheet metal and profiles are used extensively, such as metal furniture, industrial shelving systems, sports equipment, and machine chassis manufacturing. The profile unit, integrated into the side of the machine, operates independently of the main cutting table; as a result, switching from sheet cutting to profile cutting takes only minutes. Thanks to the dual-table system, there are no downtime issues caused by loading and unloading during sheet cutting, while the profile unit completes even the most complex angled cuts, hole drilling, and notching operations in a matter of seconds.
A 7.1-Ton Engineering Marvel
The key feature that sets the FLO D P 1530 apart from its competitors is its immense rigidity. Much heavier than standard dual-table models, it stands firmly on the ground with its monoblock body weighing exactly 7,100 kg. This extra weight and sturdiness flawlessly dampen the rotational forces generated by the profile turning unit and the high-speed axis movements. The result: vibration-free, burr-free, and ready-to-assemble parts—whether on flat sheets or rotating profiles. Additionally, the increased 350 mm Z-axis travel allows for greater flexibility in profile cutting and enables you to easily adapt to different geometries.
Investing in the Future with Mekotek
Complex machines require expert support. Mekotek Laser’s European manufacturing capabilities ensure that this multifunctional system always operates at peak performance. The complicated service processes and parts procurement issues often encountered with imported “all-in-one” systems are not a concern for Mekotek customers. Our expert technical team, which specializes in both profile and sheet metal cutting technologies, is here to support you anywhere in Turkey.
Save space in your facility and boost profits with the Mekotek FLO D P 1530.
FLO D P 1530 Technical Specifications
|
FEATURES |
|
|---|---|
|
Working Area (mm) |
1500 x 3000 mm |
|
Maximum Load Capacity (Sheet Metal / Profile) (kg) |
1200 / 260 kg |
|
X-Y Axis Movement (mm) |
1520 x 3030 mm |
|
Z-Axis Movement (mm) |
350 mm |
|
X-Y-Z Axis Sliding |
4 Point Ball Caged |
|
X-Y Axis Drive System |
Rack |
|
Z-Axis Drive System |
Ballscrew |
|
X-Y Axis Speeds (Resultant Speed) (m/min) |
80 m/min |
|
Z-Axis Speed (m/min) |
30 m/min |
|
X-Y Positioning Accuracy (mm) |
±0,05 mm |
|
X-Y Repeatability (mm) |
±0,03 mm |
|
Table Change Time (sec) |
10 sn |
|
Max. Profile Length (mm) |
6100 mm |
|
Max. Profile Dimensions (mm) |
Ø 220 |
|
Laser Resonator |
Han’s / Raycus / JPT |
|
Laser Power |
1000 / 2000 / 3000 / 4000 / 6000 W |
|
CNC Control System |
Cypcut / Weihong / Mekotek |
|
Laser Cutting Head |
BOCI / Han’s / Raytools |
|
Auxiliary Cutting Gases |
Air/Oxygen/Nitrogen |
|
Cooling Type |
Water Cooling |
|
Machine Weight (kg) |
7100 kg |
|
Machine Dimensions (mm) |
3190 x 9400 x 2000 mm |
|
Graph Format |
dwg / dxf / stp |
|
Voltage |
380 / 50 Hz |
|
Certificates |
CE / ISO |
|
Warranty |
2 Years |
FLO D P 1530 Cutting Thicknesses
|
Thickness |
1000 w |
2000 w |
3000 w |
4000 w |
6000 w |
|---|---|---|---|---|---|
|
Carbon Steel |
10 mm |
20 mm |
22 mm |
25 mm |
25 mm |
|
Stainless Steel |
5 mm |
8 mm |
10 mm |
12 mm |
20 mm |
|
Aluminum |
3 mm |
6 mm |
8 mm |
10 mm |
16 mm |
|
Brass |
3 mm |
5 mm |
6 mm |
8 mm |
12 mm |
