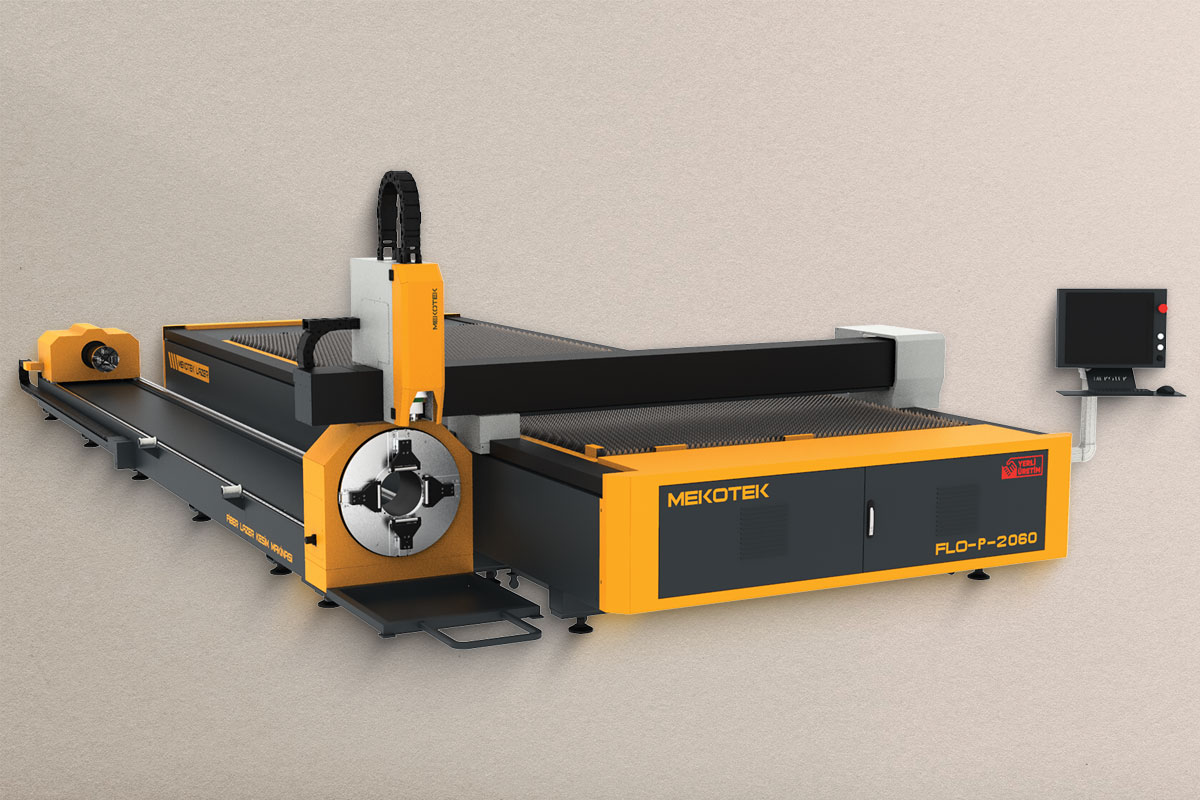

FLO P 2060 Open Type & Pipe Profile Fiber Laser

The 6-Meter Giant: Finish Both Sheet Metal and Pipe in a Single Machine

The Mekotek FLO P 2060 Open-Type & Pipe Profile Fiber Laser was designed for those who say, “My jobs are big, and my materials are heavy.” This machine comes into play where standard machines fall short in terms of length. You can place sheet metal plates exactly 6 meters long onto the table in a single piece – without having to cut them or deal with a guillotine – and cut them. What’s more, thanks to the special section on the side of the machine, you can also process 6-meter-long pipes and profiles on the same machine. No need to spend money on two separate machines – you can handle all your workshop’s cutting needs with just one machine.

A “Rock-Solid” Chassis for Heavy Industry

This machine was built not for show, but to operate under the most demanding production conditions.

  • Lifts Tons of Load: You can place sheet metal weighing exactly 1,900 kg (approximately 2 metric tons) on the workbench. Whether it’s thick black sheet metal or stainless steel, the machine won’t flinch-it won’t bend or warp.
  • No Vibration, No Deviation: The machine weighs 6,900 kg. In other words, it’s firmly anchored to the ground. Even if the cutting head moves very quickly, the machine won’t budge or vibrate. As a result, the cut piece comes out smooth, and you won’t have to deal with burrs.
  • Space as Spacious as a Royal Suite: With its massive 2-meter-by-6-meter table, you can remove trailer side panels, long lighting poles, or large machine chassis all at once.

Why Should You Buy the FLO P 2060?

Eğer damper, dorse, çelik çatı veya tarım makinesi üretiyorsanız bu makine tam size göre:

  • Don’t Waste Time Cutting the Sheet Metal: Sheet metal sold on the market is generally 6 meters long. You simply feed the sheet metal into this machine as is and use it without any waste.
  • High-Rise Cutting Head (400 mm Z-Axis): The cutting head can be raised 40 cm. This prevents the head from hitting the material when turning thick box profiles. Most machines on the market have a lower clearance, so you’ll find working with the Mekotek FLO P 2020 much more comfortable.

With the Mekotek Guarantee, No Worries About Parts, No Waiting

We stand behind the products we sell. We know exactly how much you’ll lose if your machine stops working – even for just one day.

  • 24-Hour Service: We guarantee genuine 24-hour service throughout Europe our professional service team is just a phone call away.
  • In-Stock Replacement Parts: For all your replacement part needs, you can place an order online 24/7 on our LazerParca.com website and find immediate solutions to all your needs.

Turn your workshop into a factory with the FLO P 2060. Don’t let big jobs intimidate you – just load it up and cut.

FLO P 2060 Technical Specifications

FEATURES

Working Area (mm)

2000 x 4000 mm

Maximum Load Capacity (Sheet Metal / Profile) (kg)

1900 / 260 kg

X-Y Axis Movement (mm)

2020 X 6080 mm

Z-Axis Movement (mm)

400 mm

X-Y-Z Axis Sliding

4 Point Ball Caged

X-Y Axis Drive System

Rack

Z-Axis Drive System

Ballscrew

X-Y Axis Speeds (Resultant Speed) (m/min)

80 m/min

Z-Axis Speed (m/min)

30 m/min

X-Y Positioning Accuracy (mm)

±0,05 mm

X-Y Repeatability (mm)

±0,03 mm

Max. Profile Length (mm)

6100 mm

Max. Profile Dimensions (mm)

Ø 220

Laser Resonator

Han’s / Raycus / JPT

Laser Power

1000 / 2000 / 3000 / 4000 / 6000 W

CNC Control System

Cypcut / Weihong / Mekotek

Laser Cutting Head

BOCI / Han’s / Raytools

Auxiliary Cutting Gases

Air/Oxygen/Nitrogen

Cooling Type

Water Cooling

Machine Weight (kg)

6900 kg

Machine Dimensions (mm)

3700 x 8752 x 1980 mm

Graph Format

dwg / dxf / stp

Voltage

380 / 50 Hz

Certificates

CE / ISO

Warranty

2 Years

FLO P 2060 Cutting Thicknesses

Thickness

1000 w

2000 w

3000 w

4000 w

6000 w

Carbon Steel

10 mm

20 mm

22 mm

25 mm

25 mm

Stainless Steel

5 mm

8 mm

10 mm

12 mm

20 mm

Aluminum

3 mm

6 mm

8 mm

10 mm

16 mm

Brass

3 mm

5 mm

6 mm

8 mm

12 mm
