Big Things in Small Spaces: A First Step into Laser Technology

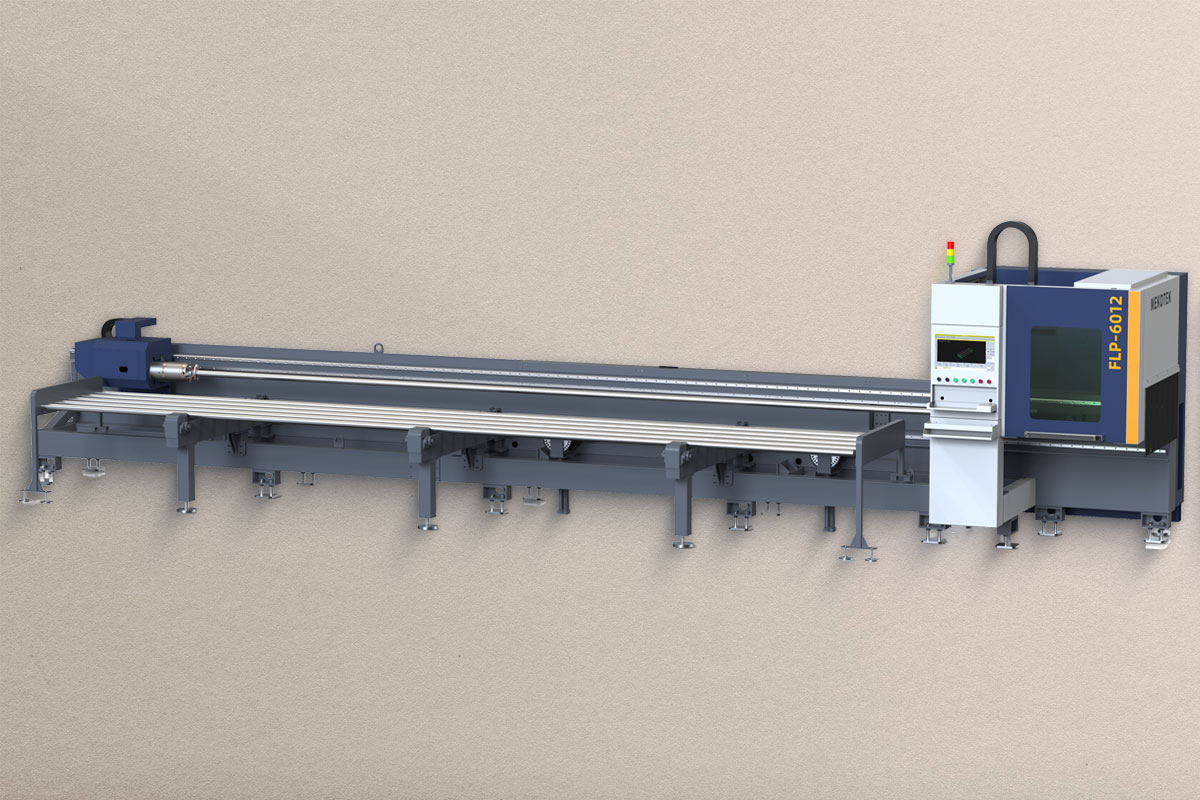

The Mekotek FLP 6012 C Pipe Profile Fiber Laser is the solution partner for businesses that say, “My workshop is small, but my goals are big.” Not everyone has to have a massive factory; however, everyone has the right to high-quality cutting. Designed as part of our “Compact” (C) series, this model is a smart investment—stripped of all unnecessary complexity, focused solely on the job at hand, taking up minimal space, yet capable of processing standard 6-meter pipes and profiles. If you’re tired of wasting time and material at the saw, this machine is your ticket to professionalism.
A Feat Beyond One’s Stature: Economical and High-Speed
Don’t let its simple appearance fool you; this machine uses the same laser technology as its larger counterparts. It cuts round tubes, square, and rectangular profiles up to Ø120 mm (12 cm) in diameter cleanly and without burrs. If you manufacture metal furniture, accessories, hospital equipment, or store shelving systems, the FLP 6012 C will be just what the doctor ordered. Thanks to the practical design of the manual loading system, your operator can easily feed the material, the pneumatic clamps secure it, and the cutting begins. Tasks like drilling holes and making angled cuts—which would take hours with a saw—take just seconds here.
Technology That Doesn’t Weigh Down Your Business
The best thing about this machine is that it is extremely simple to use and maintain. Since it lacks complex automation systems, the likelihood of breakdowns is very low; it is easy to set up, and your operator can start using the machine after just a brief training session. Thanks to its lightweight and dynamic design, energy consumption is low; it increases your production capacity without driving up your electricity bill. In short, the FLP 6012 C eliminates the fear of high costs that often accompanies the transition to laser technology for small and medium-sized workshops.
Why Choose Mekotek?
To us, there is no such thing as a “big” or “small” machine; every customer is valuable to us. Whether it’s a workshop purchasing the FLP 6012 C model or a factory investing in the million-dollar PRO series, both receive the same high standard of service as part of the Mekotek family. Every component of these machines, manufactured at our 30,000-square-meter facility, is backed by our 20 years of experience.
Just because you’re buying an entry-level machine doesn’t mean you’ll be deprived of service support. Unlike imported, “back-alley,” or unbranded machines, when you choose Mekotek, you’ll find a corporate point of contact, a well-stocked spare parts warehouse, and expert Turkish engineers who are always available to assist you. We’re here to help you grow and develop your business—your machine is in good hands with us.
FLP 6012 Gear Models
FLP 6012 C Technical Specifications
|
FEATURES |
|
|---|---|
|
Maximum Load Capacity (Sheet Metal / Profile) (kg) |
240 kg |
|
Z-Axis Movement (mm) |
110 mm |
|
X-Y-Z Axis Sliding |
4 Point Ball Caged |
|
X-Y Axis Drive System |
Rack |
|
Z-Axis Drive System |
Ballscrew |
|
X-Y Axis Speeds (Resultant Speed) (m/min) |
80 m/min |
|
Z-Axis Speed (m/min) |
30 m/min |
|
X-Y Positioning Accuracy (mm) |
±0,05 mm |
|
X-Y Repeatability (mm) |
±0,03 mm |
|
Max. Profile Length (mm) |
6100 mm |
|
Max. Profile Dimensions (mm) |
Ø 120 |
|
Laser Resonator |
Han’s / Raycus / JPT |
|
Laser Power |
1000 / 2000 / 3000 / 4000 W |
|
CNC Control System |
Cypcut / Weihong / Mekotek |
|
Laser Cutting Head |
BOCI / Han’s / Raytools |
|
Auxiliary Cutting Gases |
Air/Oxygen/Nitrogen |
|
Cooling Type |
Water Cooling |
|
Machine Weight (kg) |
3100 kg |
|
Machine Dimensions (mm) |
2205 x 10000 x 1755 |
|
Graph Format |
dwg / dxf / stp |
|
Voltage |
380 / 50 Hz |
|
Voltage |
CE / ISO |
|
Warranty |
2 Years |
FLP 6012 C Cutting Thicknesses
|
Thickness |
1000 w |
2000 w |
3000 w |
4000 w |
|---|---|---|---|---|
|
Carbon Steel |
10 mm |
20 mm |
22 mm |
25 mm |
|
Stainless Steel |
5 mm |
8 mm |
10 mm |
12 mm |
|
Aluminum |
3 mm |
6 mm |
8 mm |
10 mm |
|
Brass |
3 mm |
5 mm |
6 mm |
8 mm |
