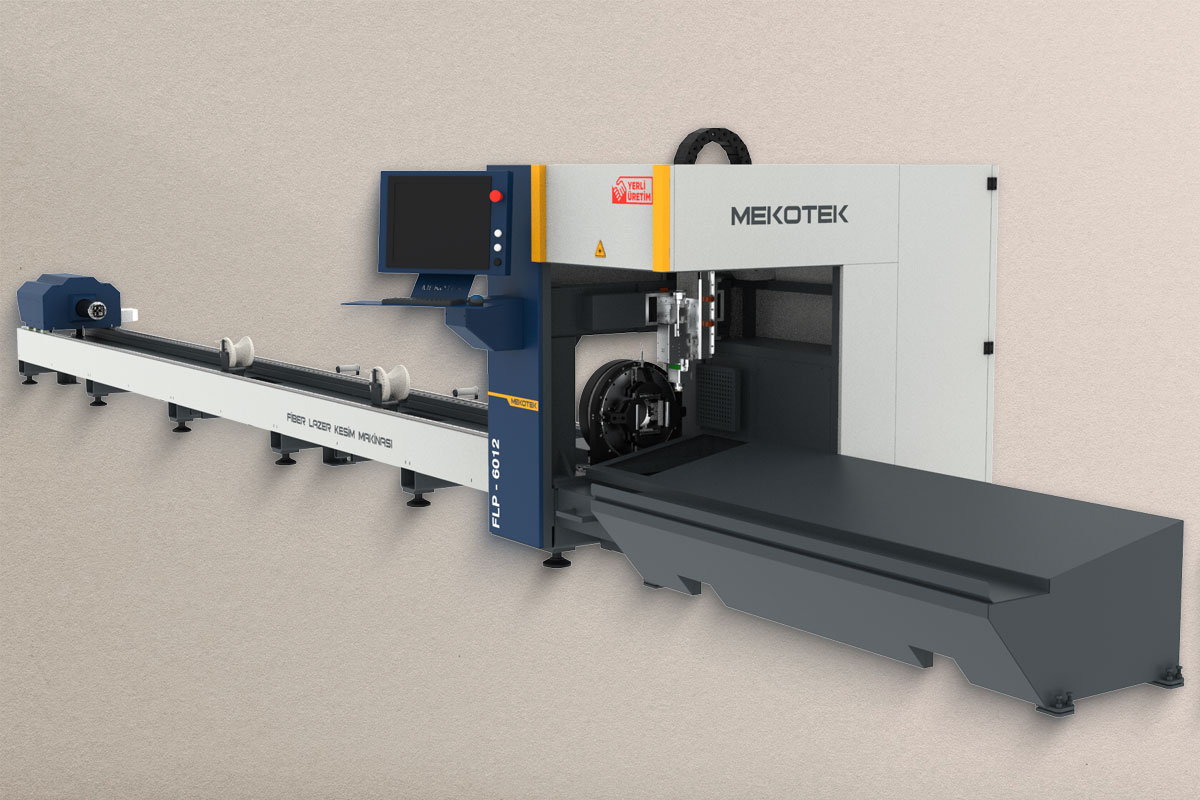

FLP 6012 Pipe Profile Fiber Laser

Speed Machine for Furniture and Accessories Manufacturers

The Mekotek FLP 6012 Pipe Profile Fiber Laser is a specialized model designed for manufacturers who say, “My business is solely in tubes and profiles—I don’t deal with sheet metal cutting.” If you work in metal furniture, chair legs, store shelving systems, bicycle frames, or decorative lighting, this machine will be just what your workshop needs. Don’t waste space on large, bulky machines; this machine is a master of precision work and mass production.

Efficient Processing of Delicate Parts: Ø120mm Capacity

When designing the FLP 6012 Pipe and Profile Fiber Laser, our goal was very clear: to process the 6-meter pipes and profiles most commonly used in the market as quickly as possible.

  • Full Capacity: Loads a 6-meter-long pipe in a single pass and processes round, square, or rectangular profiles up to 120 mm in diameter (Ø120).
  • High Speed, Low Cost: Drilling holes in chair legs, cutting keyways in shelf profiles, cutting pipes at an angle to prepare them for welding… Performing these tasks with a drill or saw takes hours. With the FLP 6012, it takes just seconds.
  • Compact and Agile: The machine weighs 3,100 kg. Unlike other massive machines, it doesn’t take up much space, yet it effortlessly rotates profiles weighing up to 240 kg. It grips the material with precision clamps (jaws) without crushing thin-walled (thin-fleshed) profiles.

What Benefits Does It Bring to Your Workshop?

If you’re tired of sending profiles to a service provider and waiting in line for days, it’s time to take matters into your own hands.

  • Forget About Waste: With a 6-meter length, you can position the material with “near-zero” waste using the software on the machine (Nesting). Less material ends up in the trash, and more money stays in your pocket.
  • Reduce Welding Work: With a laser, you can cut “wolf’s mouth” or overlap joints with such precision that no gap remains between the parts when the welder joins them. This makes welding easier and improves your product quality.
  • Energy-Efficient: It comes with power options ranging from 1 kW to 4 kW to suit your needs. When cutting thin profiles, it operates at a low power setting, so it won’t drive up your electricity bill.

Mekotek Machine Guarantee

At Mekotek Lazer, we export the technology we produce in our modern manufacturing facilities—which cover 30,000 m² of indoor space—to all corners of the world, from Central Asia to Africa and from Europe to the Americas. It is not only the quality of our machines but also the trust our customers place in us and the strength of our after-sales support that has made us the industry leader.

20 Years of Industry Experience: Drawing on the technical expertise and industry experience we’ve gained over the years, we offer not just machines, but production solutions tailored specifically to your business.

Domestic Production and a Robust Inventory of Spare Parts: Unlike the service uncertainties associated with Chinese-made machines, Mekotek guarantees immediate access to all spare parts from stock and provides a 24-hour service guarantee.

24/7 Expert Technical Support: Ensuring your production runs smoothly is our top priority. With our extensive service network and team of experts, we’re here for you whenever you need us.

With the support of our 1,800+ satisfied customers and our strong references, we’re ready to take your business into the future.

FLP-6012-C-Semi-AutomaticDownload
FLP-6012-D-ManualDownload

FLP 6012 Gear Models

flp-6012-gear-modelsDownload

FLP 6012 Technical Specifications

FEATURES

Maximum Load Capacity (Sheet Metal / Profile) (kg)

240 kg

Z-Axis Movement (mm)

110 mm

X-Y-Z Axis Sliding

4 Point Ball Caged

X-Y Axis Drive System

Rack

Z-Axis Drive System

Ballscrew

X-Y Axis Speeds (Resultant Speed) (m/min)

80 m/min

Z-Axis Speed (m/min)

30 m/min

X-Y Positioning Accuracy (mm)

±0,05 mm

X-Y Repeatability (mm)

±0,03 mm

Max. Profile Length (mm)

6100 mm

Max. Profile Dimensions (mm)

Ø 120

Laser Resulator

Han’s / Raycus / JPT

Laser Power

1000 / 2000 / 3000 / 4000 W

CNC Control System

Cypcut / Weihong / Mekotek

Laser Cutting Head

BOCI / Han’s / Raytools

Auxiliary Cutting Gases

Air/Oxygen/Nitrogen

Cooling Type

Water Cooling

Machine Weight (kg)

3100 kg

Machine Dimensions (mm)

2205 x 10000 x 1755

Graph Format

dwg / dxf / stp

Voltage

380 / 50 Hz

Certificates

CE / ISO

Warranty

2 Years

FLP 6012 Cutting Thicknesses

Thickness

1000 w

2000 w

3000 w

4000 w

Carbon Steel

10 mm

20 mm

22 mm

25 mm

Stainless Steel

5 mm

8 mm

10 mm

12 mm

Aluminum

3 mm

6 mm

8 mm

10 mm

Brass

3 mm

5 mm

6 mm

8 mm
