Retain Your Employees, Double Your Production

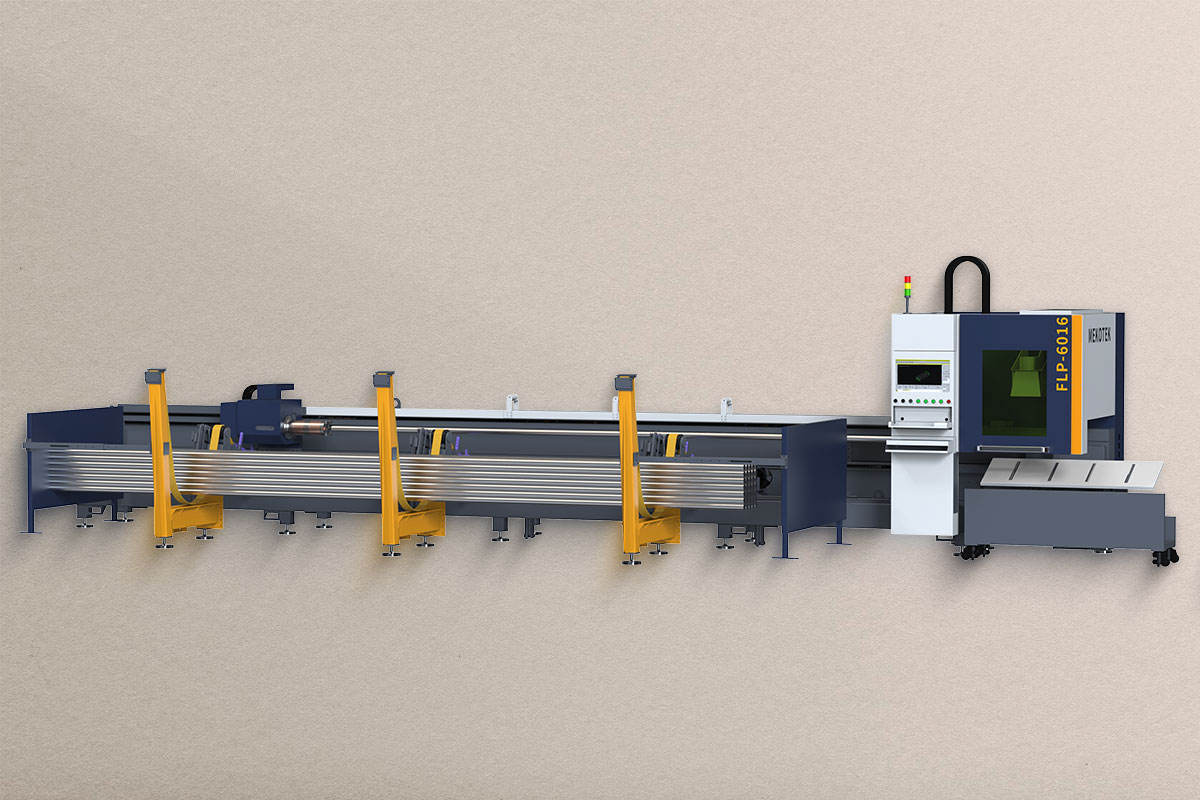

The Mekotek FLP 6016 Fully Automatic Pipe Profile Fiber Laser automatically retrieves and loads the pipe and cuts it with zero waste. The FLP 6016 Fully Automatic is a fully automated system designed to operate 24/7 without interruption, eliminating the operator’s loading burden. While you’re sipping your tea, it keeps making money in your factory.
What Does the FLP 6016 Fully Automatic Pipe and Profile Fiber Laser Cutting Machine Do?
The biggest challenges in the manufacturing industry are finding qualified craftsmen, transporting materials, and scrap costs. The FLP 6016 Full Automatic is a state-of-the-art product we developed to solve all three of these challenges at once.
Who Should Choose the FLP 6016 Full Automatic?
If you’re cutting hundreds or thousands of pieces a day, this machine is perfect for you. It’s especially ideal for those who do the following:
Why Mekotek Machinery?
With over 20 years of experience in the industry and a production line spanning 30,000 m² of covered space—making Mekotek Makine one of Turkey’s largest manufacturers—we don’t just sell machines and walk away; we believe this marks the beginning of a long-lasting partnership and friendship. We are fully aware that if your machine stops, your business stops too. To ensure your production continues uninterrupted—without having to wait for parts from China—we guarantee seamless operations through our domestic production and stocked spare parts service. With our professional technical service, we offer a 24-hour service guarantee throughout Turkey. On paper, they all look the same. We invite you to visit our factory to determine the right power and model for your business and to observe cutting quality firsthand.
With over 20 years of experience in the industry and a production line spanning 30,000 m² of covered space—making Mekotek Makine one of Turkey’s largest manufacturers—we don’t just sell machines and walk away; we believe this marks the beginning of a long-lasting partnership and friendship. We are fully aware that if your machine stops, your business stops too. To ensure your production continues uninterrupted—without having to wait for parts from China—we guarantee seamless operations through our domestic production and stocked spare parts service. With our professional technical service, we offer a 24-hour service guarantee throughout Turkey. On paper, they all look the same. We invite you to visit our factory to determine the right power and model for your business and to observe cutting quality firsthand.
FLP 6016 Full Automatic Technical Specifications
|
FEATURES |
|
|---|---|
|
Maximum Load Capacity (Sheet Metal / Profile) (kg) |
240 kg |
|
Z-Axis Movement (mm) |
110 mm |
|
X-Y-Z Axis Sliding |
4 Point Ball Caged |
|
X-Y Axis Drive System |
Rack |
|
Z-Axis Drive System |
Ballscrew |
|
X-Y Axis Speeds (Resultant Speed) (m/min) |
80 m/min |
|
Z-Axis Speed (m/min) |
30 m/min |
|
X-Y Positioning Accuracy (mm) |
±0,05 mm |
|
X-Y Repeatability (mm) |
±0,03 mm |
|
Max. Profile Length (mm) |
6100 mm |
|
Max. Profile Dimensions (mm) |
Ø 120 |
|
Laser Resonator |
Han’s / Raycus / JPT |
|
Laser Power |
1000 / 2000 / 3000 / 4000 W |
|
CNC Control System |
Cypcut / Weihong / Mekotek |
|
Laser Cutting Head |
BOCI / Han’s / Raytools |
|
Auxiliary Cutting Gases |
Air/Oxygen/Nitrogen |
|
Cooling Type |
Water Cooling |
|
Machine Weight (kg) |
3100 kg |
|
Machine Dimensions (mm) |
2205 x 10000 x 1755 |
|
Graph Format |
dwg / dxf / stp |
|
Voltage |
380 / 50 Hz |
|
Certificates |
CE / ISO |
|
Warranty |
2 Years |
FLP 6016 Full-Automatic Cutting Thicknesses
|
Thickness |
1000 w |
2000 w |
3000 w |
4000 w |
|---|---|---|---|---|
|
Carbon Steel |
10 mm |
20 mm |
22 mm |
25 mm |
|
Stainless Steel |
5 mm |
8 mm |
10 mm |
12 mm |
|
Aluminum |
3 mm |
6 mm |
8 mm |
10 mm |
|
Brass |
3 mm |
5 mm |
6 mm |
8 mm |
