Powerful, Durable, and Fast for Heavy Industry

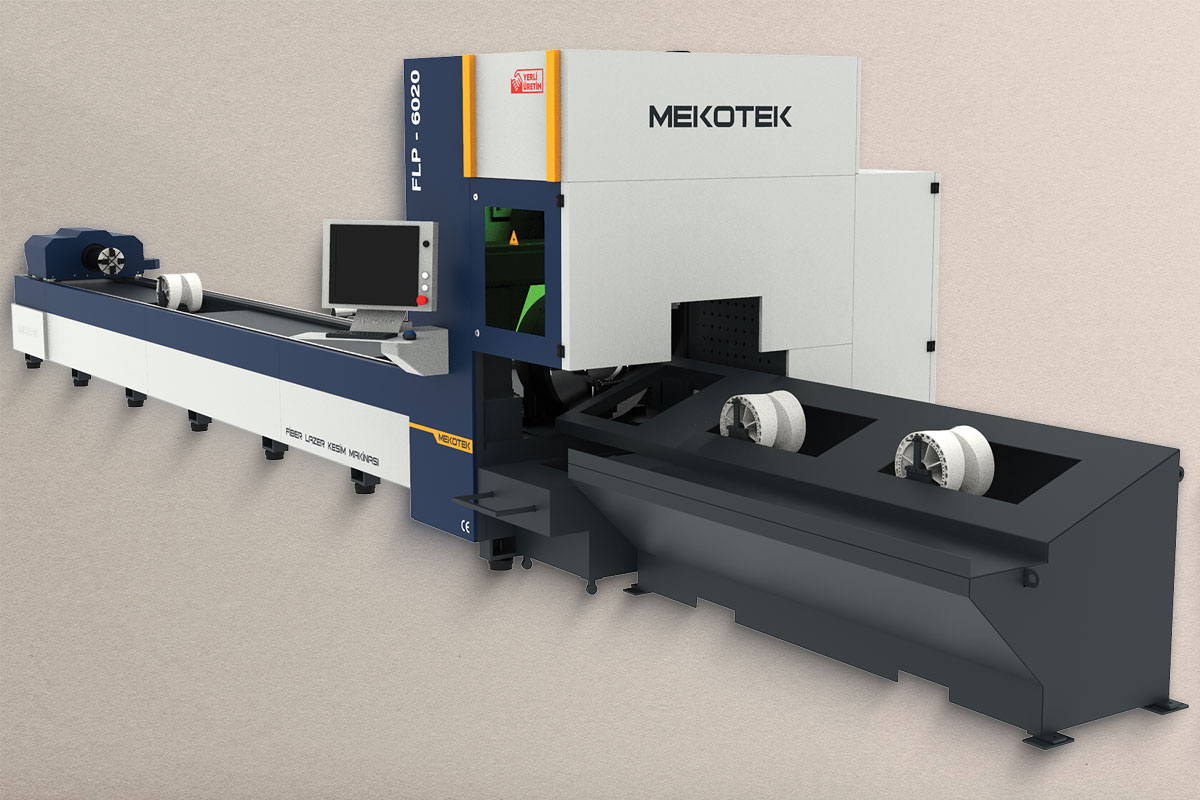

The Mekotek FLP 6020 Tube and Profile Fiber Laser is not limited to cutting thin profiles or table and chair legs; it is a solution partner for manufacturers working with “heavy metal,” such as agricultural machinery, steel construction, vehicle-mounted equipment, or industrial shelving systems. If you want to cut both standard tubes and thick-walled, large-diameter profiles with the same precision in your workshop, this is exactly the power you need.
7-Ton Rock-Solid Body
This machine should not be confused with precision machines. Weighing approximately 7 metric tons, it makes its presence felt the moment it enters your workshop. Why is it so heavy? Because when turning heavy profiles up to 6 meters long and 220 millimeters in diameter at high speeds, the machine must not waver even by a millimeter. Thanks to this robust construction, there is no vibration even when cutting the thickest-walled profiles, and the surfaces come out smooth. The pneumatic chucks grip even rusty or misshapen pipes firmly and do not let go until the cut is complete.
Don’t Waste Time with a Saw and Drill
In the past, to prepare a chassis or structure, you would first cut the profile with a saw, then drill holes with a drill, and finally remove the burrs by grinding. This process was not only very time-consuming but also carried the risk of errors at every stage. With the FLP 6020, you can complete these three steps in a single operation. You feed the raw profile into the machine; it returns a part with pre-drilled holes, precisely cut to length, with chamfers machined, and ready for assembly. When your welder joins the parts, there are no gaps, resulting in significant savings in both labor and time.
Why Mekotek? Because We Understand the Challenges Faced by Manufacturers
At Mekotek Lazer, we are not the kind of dealers who simply sell a machine and then walk away. As we manufacture these machines in our 30,000-square-meter factory, we have a single goal: to keep your production line running. The fact that our machines are in operation in thousands of factories from the United States to Asia is a result of our 20 years of experience and our commitment to honest business practices.
When you purchase a machine from a foreign manufacturer, you’ll experience the stress of “waiting for parts”—but not with us. Every single part of your laser machine, down to the smallest screw, is readily available in our inventory. If something goes wrong, you’ll find a local, expert technical team that doesn’t make excuses but delivers solutions—and is available day and night. Working with us isn’t just about buying a machine; it’s about securing your production.
FLP 6020 Technical Specifications
|
FEATURES |
|
|---|---|
|
Maximum Load Capacity (Sheet Metal / Profile) (kg) |
260 kg |
|
Z-Axis Movement (mm) |
240 mm |
|
X-Y-Z Axis Sliding |
4 Point Ball Caged |
|
X-Y Axis Drive System |
Rack |
|
Z-Axis Drive System |
Ballscrew |
|
X-Y Axis Speeds (Resultant Speed) (m/min) |
80 m/min |
|
Z-Axis Speed (m/min) |
30 m/min |
|
X-Y Positioning Accuracy (mm) |
±0,05 mm |
|
X-Y Repeatability (mm) |
±0,03 mm |
|
Max. Profile Length (mm) |
6100 mm |
|
Max. Profile Dimensions (mm) |
Ø 220 |
|
Laser Resonator |
Han’s / Raycus / JPT |
|
Laser Power |
1000 / 2000 / 3000 / 4000 / 6000 W |
|
CNC Control System |
Cypcut / Weihong / Mekotek |
|
Laser Cutting Head |
BOCI / Han’s / Raytools |
|
Auxiliary Cutting Gases |
Air/Oxygen/Nitrogen |
|
Cooling Type |
Water Cooling |
|
Machine Weight (kg) |
6800 kg |
|
Machine Dimensions (mm) |
2670 x 11000 x 2370 mm |
|
Graph Format |
dwg / dxf / stp |
|
Voltage |
380 / 50 Hz |
|
Certificates |
CE / ISO |
|
Warranty |
2 Years |
FLP 6020 Cutting Thicknesses
|
Thickness |
1000 w |
2000 w |
3000 w |
4000 w |
6000 w |
|---|---|---|---|---|---|
|
Carbon Steel |
10 mm |
20 mm |
22 mm |
25 mm |
25 mm |
|
Stainless Steel |
5 mm |
8 mm |
10 mm |
12 mm |
20 mm |
|
Aluminum |
3 mm |
6 mm |
8 mm |
10 mm |
16 mm |
|
Brass |
3 mm |
5 mm |
6 mm |
8 mm |
12 mm |
