The Fiber Laser That Puts the Boss’s Pocket and the Craftsman’s Work First

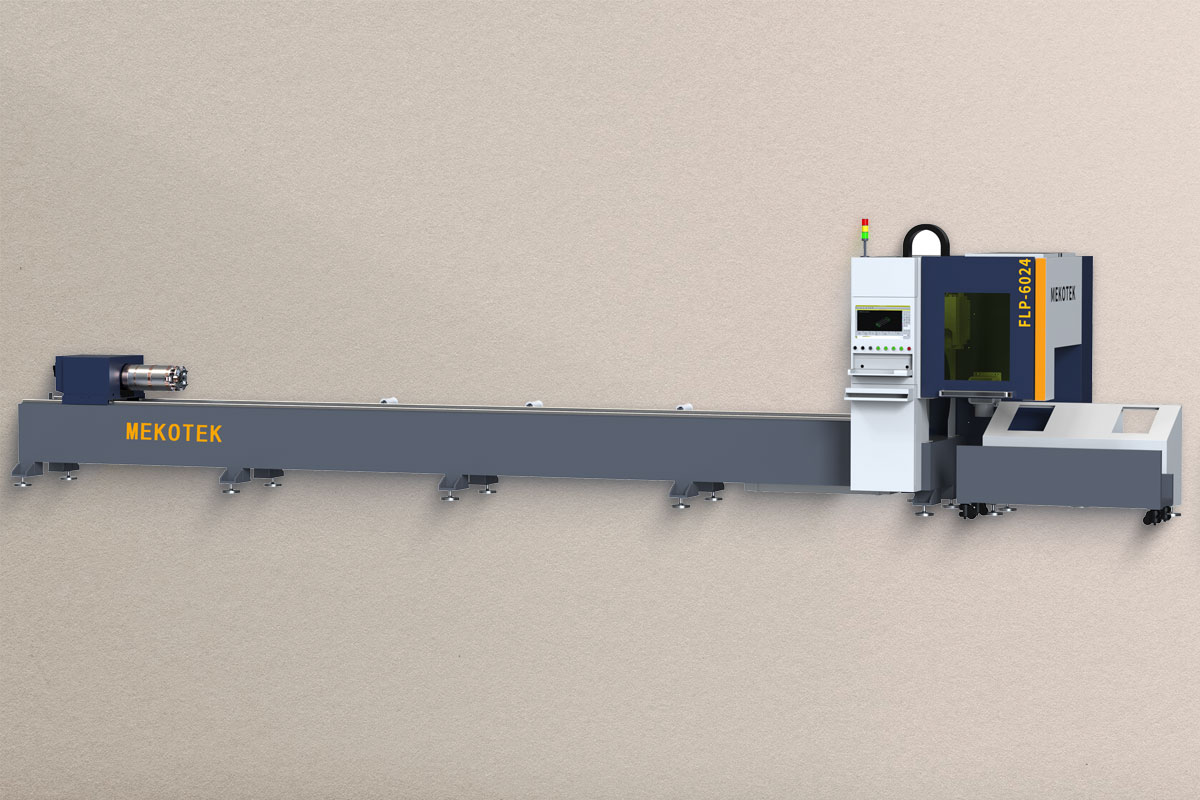

The Mekotek FLP 6024 Manual Pipe Profile Fiber Laser is exactly what workshops are looking for—especially those that say, “My job isn’t to cut the same tube thousands of times over; I work with heavy, rough materials of varying sizes every day.” Offering the same cutting quality and power without the high cost of automatic loading systems, this model is the smartest investment, especially for manufacturers of steel structures, agricultural equipment, and heavy machinery chassis. Your operator handles the loading, the machine handles the cutting—and you keep your money in your pocket.
You’re in Control When It Comes to Heavy Materials
This machine easily processes round tubes up to Ø220 mm (22 cm) in diameter, as well as wide square and rectangular profiles. Don’t let the fact that it’s “manual” intimidate you; our pneumatic chucks are so powerful that the moment you position the profile, they grip and center the material as firmly as a bone. It won’t slip, even on rusty, oily, or heavy profiles. With a body weighing approximately 6,800 kg (6.8 metric tons), it’s designed to handle the demands of heavy industry. It maintains the same precision it demonstrates with thin profiles even when turning the thickest-walled and heaviest profiles—it remains unwavering and vibration-free.
Speed in Manufacturing, Ease of Assembly
With the FLP 6024, you can retire the saw, drill, and grinder trio in your workshop. You can machine a 6-meter-long profile in a single pass. Drilling, notching, angled cutting, or engraving—all these tasks are completed in a single pass. The cut pieces come out so clean that your welder will exclaim, “Man, this fits perfectly!” as he joins the parts. You won’t have to deal with burr removal or dimensional deviations. You’ll save time and improve the quality of your product.
Why Mekotek? Global Proof of Local Strength
What sets us apart is not just that we manufacture machines, but that the machines we produce operate all over the world. It is no coincidence that the machines rolling off our 30,000-square-meter production line are accepted even in the European and American markets, where quality is scrutinized the most. We respond to the Turkish industrialist’s quest for “reliable machinery” with engineering expertise rooted in this very land.
If you don’t want to go through the stress of buying an imported machine and wondering, “When will the service arrive?” or “Is the part stuck at customs?”, you’ve come to the right place. At Mekotek, every screw, every cable, and every lens is in stock. Working with us means having the backing of 20 years of extensive experience and a team you can reach 24/7. We’re always here to keep your machine running and your operations moving.
FLP 6024 Gear Models
FLP 6024 Manual Technical Specifications
|
FEATURES |
|
|---|---|
|
Maximum Load Capacity (Sheet Metal / Profile) (kg) |
260 kg |
|
Z-Axis Movement (mm) |
240 mm |
|
X-Y-Z Axis Sliding |
4 Point Ball Caged |
|
X-Y Axis Drive System |
Rack |
|
Z-Axis Drive System |
Ballscrew |
|
X-Y Axis Speeds (Resultant Speed) (m/min) |
80 m/min |
|
Z-Axis Speed (m/min) |
30 m/min |
|
X-Y Positioning Accuracy (mm) |
±0,05 mm |
|
X-Y Repeatability (mm) |
±0,03 mm |
|
Max. Profile Length (mm) |
6100 mm |
|
Max. Profile Dimensions (mm) |
Ø 220 |
|
Laser Resonator |
Han’s / Raycus / JPT |
|
Laser Power |
1000 / 2000 / 3000 / 4000 / 6000 W |
|
CNC Control System |
Cypcut / Weihong / Mekotek |
|
Laser Cutting Head |
BOCI / Han’s / Raytools |
|
Auxiliary Cutting Gases |
Air/Oxygen/Nitrogen |
|
Cooling Type |
Water Cooling |
|
Machine Weight (kg) |
6800 kg |
|
Machine Dimensions (mm) |
2670 x 11000 x 2370 mm |
|
Graph Format |
dwg / dxf / stp |
|
Voltage |
380 / 50 Hz |
|
Certificates |
CE / ISO |
|
Warranty |
2 Years |
FLP 6024 Manual Cutting Thicknesses
|
Thickness |
1000 w |
2000 w |
3000 w |
4000 w |
6000 w |
|---|---|---|---|---|---|
|
Carbon Steel |
10 mm |
20 mm |
22 mm |
25 mm |
25 mm |
|
Stainless Steel |
5 mm |
8 mm |
10 mm |
12 mm |
20 mm |
|
Aluminum |
3 mm |
6 mm |
8 mm |
10 mm |
16 mm |
|
Brass |
3 mm |
5 mm |
6 mm |
8 mm |
12 mm |
