A Smart Solution That’s Both Budget-Friendly and Carrier-Friendly

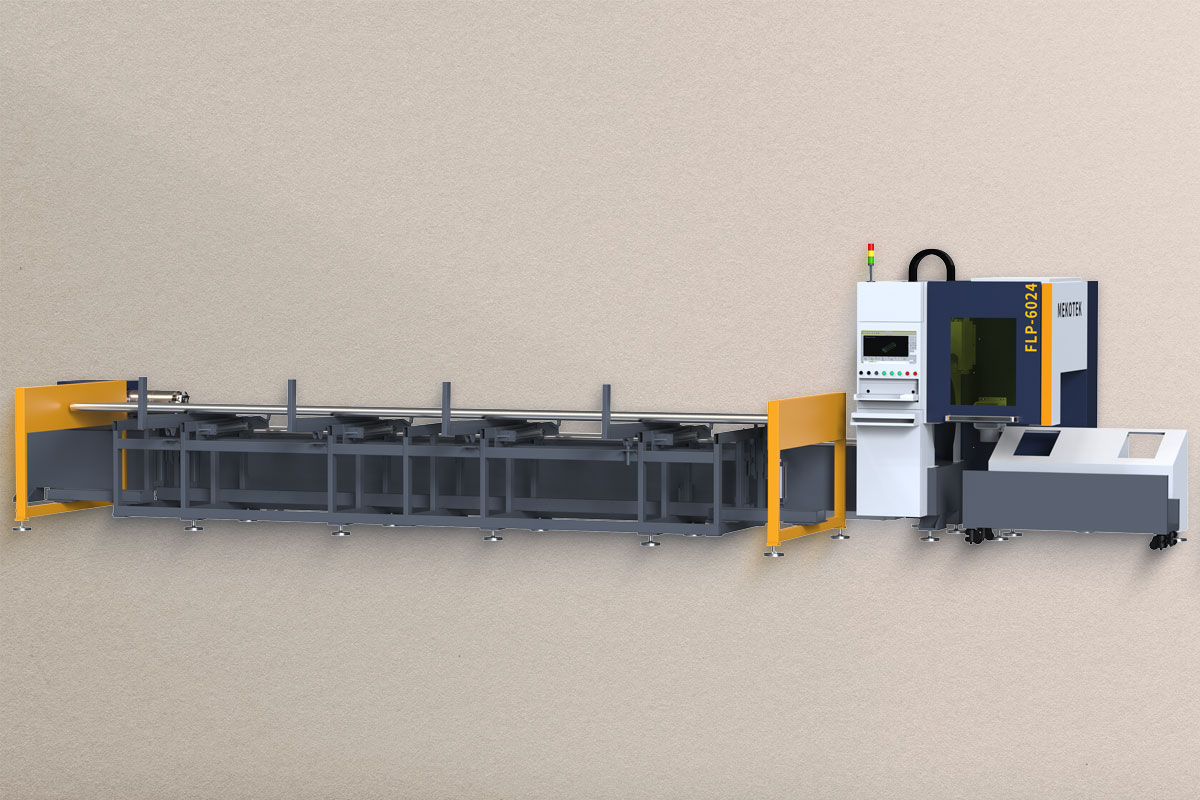

The Mekotek FLP 6024 Semi-Automatic Pipe Profile Fiber Laser is the most sensible choice for businesses that want to increase production speed but do not want to incur the high costs of fully automatic (bundle) loading systems. We minimize the effort and time an operator spends loading profiles on manual machines with this model’s Semi-Automatic Loading System. Your operator simply places the profile into the loading channel, and the machine takes care of the rest. This not only reduces operator fatigue but also significantly increases the number of parts cut by the end of the day.
Machining Heavy Profiles Is Now Easier
This machine is a powerhouse designed to process pipes and wide square profiles up to Ø220 mm (22 cm) in diameter. Manually positioning and centering heavy and long profiles on the chuck is particularly time-consuming. Our semi-automatic system handles the gripping and feeding of the profile on its own and automatically centers the material. Thanks to its massive body weight of approximately 7 metric tons, the machine remains firmly in place even as heavy materials rotate at high speeds. This stability translates into burr-free cuts and excellent dimensional accuracy.
Speed and Quality Are Coming to Your Workshop
With the FLP 6024 Semi-Automatic Pipe Profile Fiber Laser, your production line will take a leap forward. Time-consuming tasks such as taking measurements at the saw, drilling holes, and deburring will become a thing of the past. You feed a 6-meter pipe into the machine; it delivers the finished product with pre-drilled holes, cut to length, and ready for assembly. Especially in steel construction, agricultural machinery, and heavy industry applications, your assembly time is cut in half thanks to parts with pre-prepared weld joints. You’ll save on labor costs and gain a competitive edge over your rivals with superior product quality.
Mekotek Machinery: Domestic Power at World-Class Standards
It’s one thing to buy a machine, but it’s quite another to use that machine trouble-free for years. At Mekotek Lazer, we don’t just process metal at our 30,000-square-meter facility—we build trust. The fact that our machines, bearing the “Made in Turkey” label, are operating today in the most demanding industrial regions of Europe, the Americas, and Asia is the greatest proof of our commitment to quality.
Buying a machine made in China and waiting for an email from abroad in the event of a breakdown means halting production. With us, however, the process is very simple: Is there a problem? With our 20 years of experience and extensive service network, we’re right by your side immediately. Need a part? Our shelves are stocked, and our inventory is ready. Manufacturers who partner with us know they have the backing of a rock-solid manufacturer behind them and can focus on their business.
FLP 6024 Gear Models
FLP 6024 Semi-Automatic Technical Specifications
|
FEATURES |
|
|---|---|
|
Maximum Load Capacity (Sheet Metal / Profile) (kg) |
260 kg |
|
Z-Axis Movement (mm) |
240 mm |
|
X-Y-Z Axis Sliding |
4 Point Ball Caged |
|
X-Y Axis Drive System |
Rack |
|
Z-Axis Drive System |
Ballscrew |
|
X-Y Axis Speeds (Resultant Speed) (m/min) |
80 m/min |
|
Z-Axis Speed (m/min) |
30 m/min |
|
X-Y Positioning Accuracy (mm) |
±0,05 mm |
|
X-Y Repeatability (mm) |
±0,03 mm |
|
Max. Profile Length (mm) |
6100 mm |
|
Max. Profile Dimensions (mm) |
Ø 220 |
|
Laser Resonator |
Han’s / Raycus / JPT |
|
Laser Power |
1000 / 2000 / 3000 / 4000 / 6000 W |
|
CNC Control System |
Cypcut / Weihong / Mekotek |
|
Laser Cutting Head |
BOCI / Han’s / Raytools |
|
Auxiliary Cutting Gases |
Air/Oxygen/Nitrogen |
|
Cooling Type |
Water Cooling |
|
Machine Weight (kg) |
6800 kg |
|
Machine Dimensions (mm) |
2670 x 11000 x 2370 mm |
|
Graph Format |
dwg / dxf / stp |
|
Voltaj |
380 / 50 Hz |
|
Certificates |
CE / ISO |
|
Warranty |
2 Years |
FLP 6024 Semi-Automatic Cutting Thicknesses
|
Thickness |
1000 w |
2000 w |
3000 w |
4000 w |
6000 w |
|---|---|---|---|---|---|
|
Carbon Steel |
10 mm |
20 mm |
22 mm |
25 mm |
25 mm |
|
Stainless Steel |
5 mm |
8 mm |
10 mm |
12 mm |
20 mm |
|
Aluminum |
3 mm |
6 mm |
8 mm |
10 mm |
16 mm |
|
Brass |
3 mm |
5 mm |
6 mm |
8 mm |
12 mm |
