For the Giants of Infrastructure and Construction: 350 mm of Power

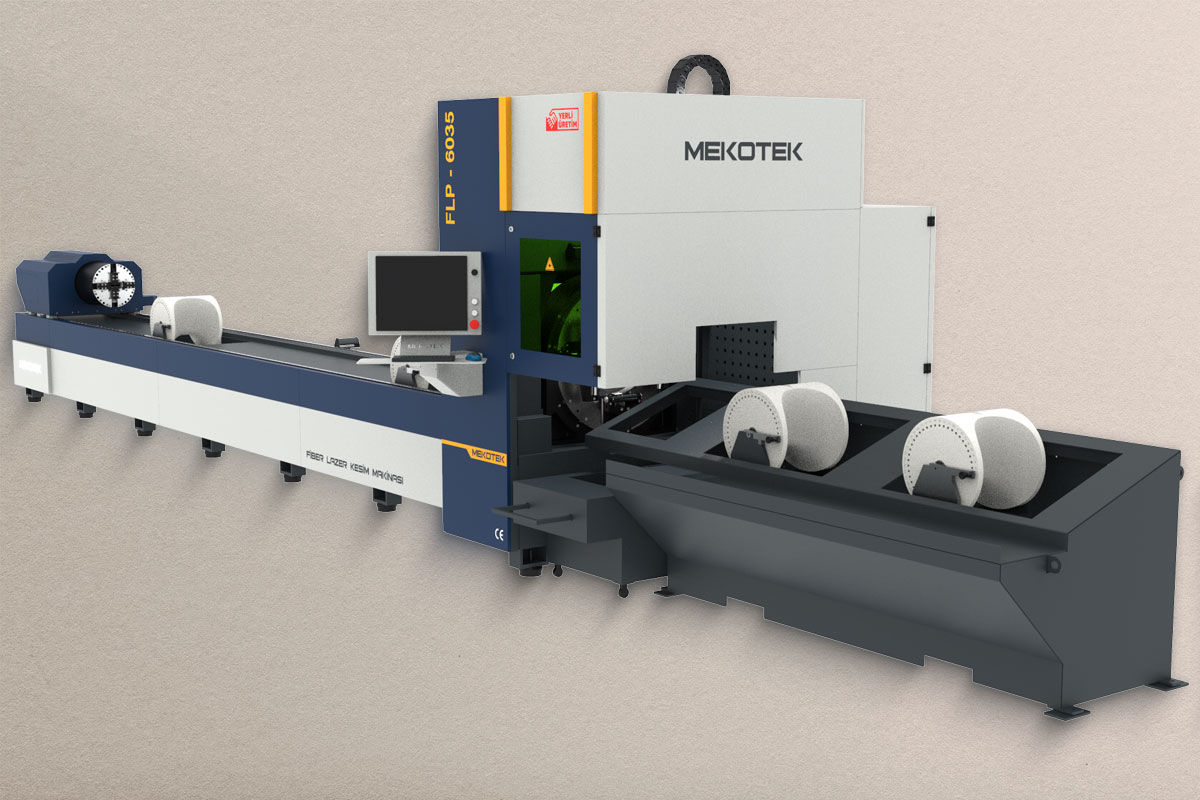

The Mekotek FLP 6035 Pipe Profile Fiber Laser is a machine designed for companies that don’t just handle workshop manufacturing but also undertake “mega projects” such as dams, bridges, airports, natural gas pipelines, or massive roof trusses. As you’ll notice in the image, its robust frame is designed to handle loads that standard machines simply can’t handle. If you want to cut massive pipes up to Ø350mm (35 cm) in diameter, thick-walled NPU/NPI steel sections, and heavy H-beams as easily as cutting cheese, the power you need is right here.
Machine Tons of Weight with Millimeter Precision
Machining large-diameter, thick-walled pipes is not like cutting thin profiles. The centrifugal force generated when a pipe weighing several metric tons rotates can dislodge standard machines and disrupt the cut. The FLP 6035’s specially designed, heavy-duty bearing system—as shown in the image—and its powerful pneumatic chucks grip the pipe like a vise. Even as those massive loads you’ve loaded with a crane rotate, there isn’t the slightest vibration in the machine. The result: zero deviation and a perfect square between one end and the other of a pipe several meters long.
Save the Welder Time on the Job Site
In the past, cutting pipes of these diameters with oxygen or plasma and then grinding them to prepare the weld joint used to take days. The FLP 6035 reduces this process to a matter of minutes. You feed the pipe into the machine; it delivers a part that’s ready for assembly—drilled, cut to length, and cleaned. Time is money, especially on construction sites. When the parts produced by this machine arrive on-site, your assembly team can start welding immediately without any additional cleaning. Your projects move faster, your commitments are met on time, and your labor costs decrease.
Why Mekotek? Because Your Project Can’t Afford Any Risks
A company that invests in such a large machine does so not as a “hobby,” but to fulfill multi-million-dollar contracts. A work stoppage on a construction site means paying compensation. This is precisely where Mekotek’s “domestic and robust” stance comes into play. We always stand behind these giants that we manufacture in our 30,000-square-meter factory.
When the circuit board of an imported machine burns out, waiting for a replacement part at customs puts your project at risk. When you work with Mekotek, however, you know that the replacement part you need is ready in our warehouse in Ankara, and our technical team is on its way with just a phone call. We’ve been in business for 20 years to ensure that our machines—which power major projects across Europe and the United States—operate reliably on your construction site as well.
Why Mekotek? Because Your Project Can’t Afford Any Risks
A company that invests in such a large machine does so not as a “hobby,” but to fulfill multi-million-dollar contracts. A work stoppage on a construction site means paying compensation. This is exactly where Mekotek’s “domestic and robust” stance comes into play. We always stand behind these giants that we manufacture in our 30,000-square-meter factory.
When the circuit board of an imported machine burns out, waiting for a replacement part at customs puts your project at risk. When you work with Mekotek, however, you know that the replacement part you need is ready in our warehouse in Ankara, and our technical team is on its way with just a phone call. We’ve been in business for 20 years to ensure that our machines—which power major projects across Europe and the United States—operate reliably on your construction site as well.
FLP 6035 Technical Specifications
|
FEATURES |
|
|---|---|
|
Maximum Load Capacity (Sheet Metal / Profile) (kg) |
1000 kg |
|
Z-Axis Movement (mm) |
240 mm |
|
X-Y-Z Axis Sliding |
4 Point Ball Caged |
|
X-Y Axis Drive System |
Rack |
|
Z-Axis Drive System |
Ballscrew |
|
X-Y Axis Speeds (Resultant Speed) (m/min) |
80 m/min |
|
Z-Axis Speed (m/min) |
30 m/min |
|
X-Y Positioning Accuracy (mm) |
±0,05 mm |
|
X-Y Repeatability (mm) |
±0,03 mm |
|
Max. Profile Length (mm) |
6100 mm |
|
Max. Profile Dimensions (mm) |
Ø 350 |
|
Laser Resonator |
Han’s / Raycus / JPT |
|
Laser Power |
1000 / 2000 / 3000 / 4000 / 6000 W |
|
CNC Control System |
Cypcut / Weihong / Mekotek |
|
Laser Cutting Head |
BOCI / Han’s / Raytools |
|
Auxiliary Cutting Gases |
Air/Oxygen/Nitrogen |
|
Cooling Type |
Water Cooling |
|
Machine Weight (kg) |
7000 kg |
|
Machine Dimensions (mm) |
2670 x 11000 x 2370 mm |
|
Graph Format |
dwg / dxf / stp |
|
Voltage |
380 / 50 Hz |
|
Certificates |
CE / ISO |
|
Warranty |
2 Years |
FLP 6035 Cutting Thicknesses
|
Thickness |
1000 w |
2000 w |
3000 w |
4000 w |
6000 w |
|---|---|---|---|---|---|
|
Carbon Steel |
10 mm |
20 mm |
22 mm |
25 mm |
25 mm |
|
Stainless Steel |
5 mm |
8 mm |
10 mm |
12 mm |
20 mm |
|
Aluminum |
3 mm |
6 mm |
8 mm |
10 mm |
16 mm |
|
Brass |
3 mm |
5 mm |
6 mm |
8 mm |
12 mm |
