The “Atom Ant,” a Speed Record-Breaker in Precision Work
The Mekotek FLP 6090 Automatic-Loading Tube and Profile Fiber Laser was specifically developed for the most precise and high-volume jobs in the industry—namely, thin tubes and profiles ranging from Ø10 mm to Ø90 mm. If you manufacture metal chairs, school desks, bicycle frames, shopping carts, or hospital beds, don’t waste time with large, cumbersome machines. Those machines are designed to cut massive shafts and are slow when it comes to thin tubing. The FLP 6090, on the other hand, grabs thin tubing in mid-air, cuts it at incredible speed, and processes and ejects it in seconds. If you have thousands of parts to cut in your workshop, this machine will save you days.
While You’re Drinking Your Tea, It Does the Upload

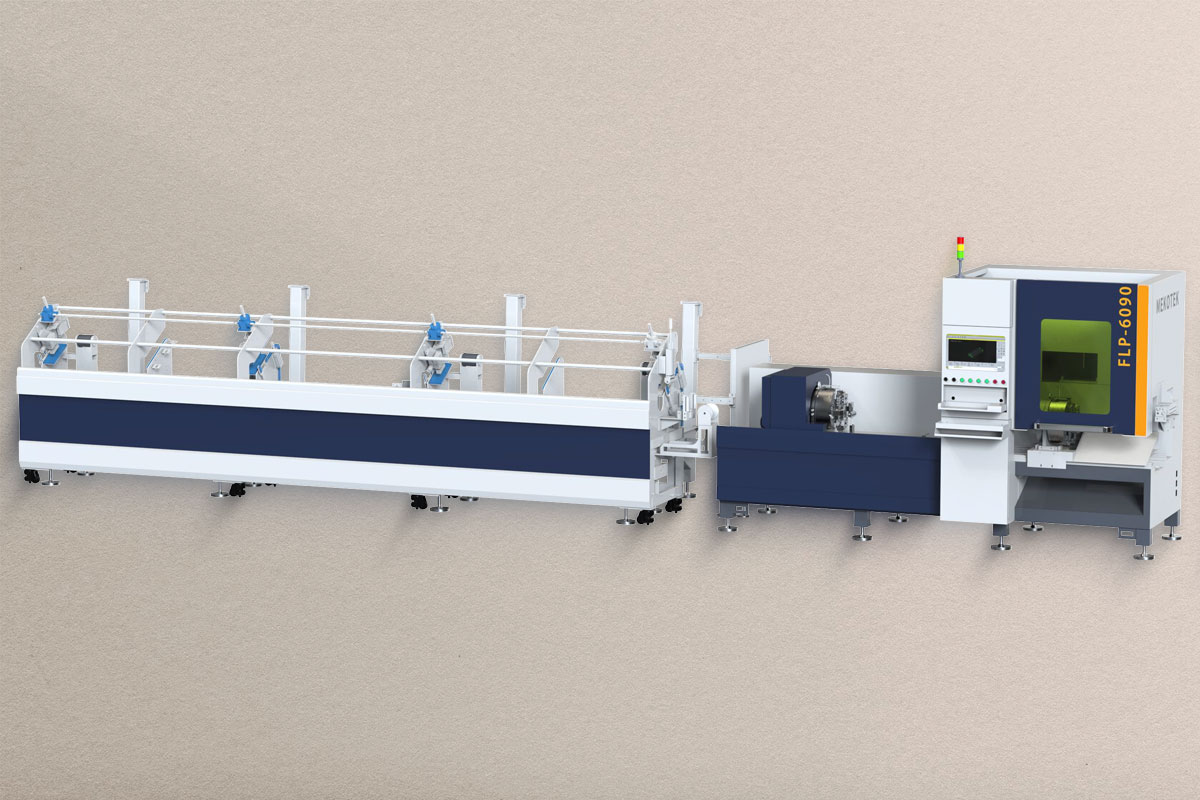

As you’ll notice in the image, this model features an Automatic Loading Magazine on the left side. Your operator no longer has to load pipes one by one each time, straining their back and wasting time. You simply place the bundle of pipes into the hopper; as needed, the machine automatically retrieves the pipe, measures it, feeds it into the guide, and begins cutting. Thanks to this automation, a single operator can easily manage even two machines at the same time. The days of hearing “The operator got tired and took a break” are over—the machine keeps running smoothly.
Small Scale, High Precision
Cutting thin-walled tubes requires skill; if you tighten the chuck too much, the tube will be crushed, and if you leave it too loose, it will fly out. The FLP 6090’s precision pneumatic chucks grip delicate profiles with the precision of a jeweler. You’ll achieve razor-sharp cuts without crushing or deformation. Plus, since the cutting area is completely enclosed, there’s no smoke or noise in your workshop. The cut pieces are so clean that your assembly-line workers can start welding immediately—without cutting their hands or having to remove burrs.
Why Mekotek? Experience the Comfort of Locally Manufactured Products
The most important thing for a machine that operates at such a high speed is “continuity.” If the machine stops for even an hour, hundreds of parts will be missing, and your shipment will be delayed. That’s exactly why we at Mekotek Lazer are here. Behind every machine we manufacture in our 30,000-square-meter factory lies 20 years of “partnership with industry.”
With us, you won’t experience the stress of buying an imported machine and then being told, “The part will arrive from abroad in three weeks,” when a simple sensor or driver board fails. That’s because that part is already sitting on the shelf in our warehouse in Ankara. Our service team is ready to hit the road at a moment’s notice. Working with us means more than just having a fast machine; it means having the support to keep that speed going without any interruptions.
FLP 6090 Technical Specifications
|
FEATURES |
|
|---|---|
|
Maximum Load Capacity (Sheet Metal / Profile) (kg) |
240 kg |
|
Z-Axis Movement (mm) |
110 mm |
|
X-Y-Z Axis Sliding |
4 Point Ball Caged |
|
X-Y Axis Drive System |
Rack |
|
Z-Axis Drive System |
Ballscrew |
|
X-Y Axis Speeds (Resultant Speed) (m/min) |
80 m/min |
|
Z-Axis Speed (m/min) |
30 m/min |
|
X-Y Positioning Accuracy (mm) |
±0,05 mm |
|
X-Y Repeatability (mm) |
±0,03 mm |
|
Max. Profile Length (mm) |
6100 mm |
|
Max. Profile Dimensions (mm) |
Ø 90 |
|
Laser Resonator |
Han’s / Raycus / JPT |
|
Laser Power |
1000 / 2000 / 3000 / 4000 W |
|
CNC Control System |
Cypcut / Weihong / Mekotek |
|
Laser Cutting Head |
BOCI / Han’s / Raytools |
|
Auxiliary Cutting Gases |
Air/Oxygen/Nitrogen |
|
Cooling Type |
Water Cooling |
|
Machine Weight (kg) |
3800 kg |
|
Machine Dimensions (mm) |
2205 x 10000 x 1755 mm |
|
Graph Format |
dwg / dxf / stp |
|
Voltage |
380 / 50 Hz |
|
Certificates |
CE / ISO |
|
Warranty |
2 Years |
FLP 6090 Cutting Thicknesses
|
Thickness |
1000 w |
2000 w |
3000 w |
4000 w |
|---|---|---|---|---|
|
Carbon Steel |
10 mm |
20 mm |
22 mm |
25 mm |
|
Stainless Steel |
5 mm |
8 mm |
10 mm |
12 mm |
|
Aluminum |
3 mm |
6 mm |
8 mm |
10 mm |
|
Brass |
3 mm |
5 mm |
6 mm |
8 mm |
