Technology That Puts an End to Grinding Problems: Production Ready for Welding

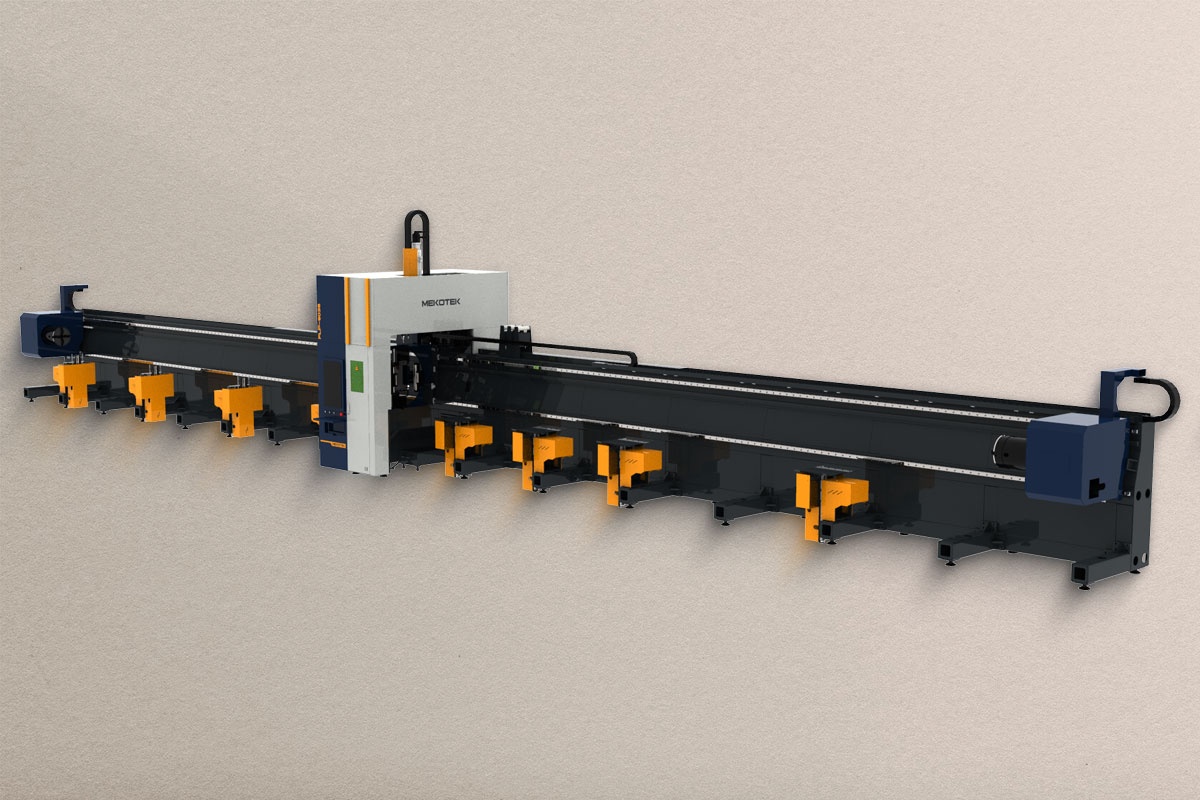

The Mekotek FLP 9036 BVL Pipe Profile Fiber Laser is a state-of-the-art technology that not only cuts pipes but also prepares the parts for assembly and welding. In heavy industry, particularly when working with thick-walled pipes and H-beams, the biggest time drain is the “weld beveling” process. After a part is cut, welders spend hours using handheld grinders to try to create the necessary bevel on the material. With this machine, we’re making that process a thing of the past. Thanks to its special head, which can tilt ±45 degrees, our machine creates V, Y, or X-type weld bevels instantly—in a matter of seconds—right during the cutting process.
Labor Cost Savings, Quality at the Source
Once this machine is installed in your workshop, you can eliminate the “deburring and grinding” station from your production line. When machining massive profiles up to 9 meters long, the machine delivers the end of the part at exactly the angle your welder needs. This ensures that when parts are joined on the construction site or in the assembly area, there are no gaps, and the weld penetrates the material completely. Not only does this enhance the structural integrity of your project, but it also drastically reduces your assembly time. It maintains this precision even with the heaviest and thickest materials up to 360 mm in diameter, sparing your welder the strain and speeding up the job.
A 9-Meter Giant Hull, Precision Technology

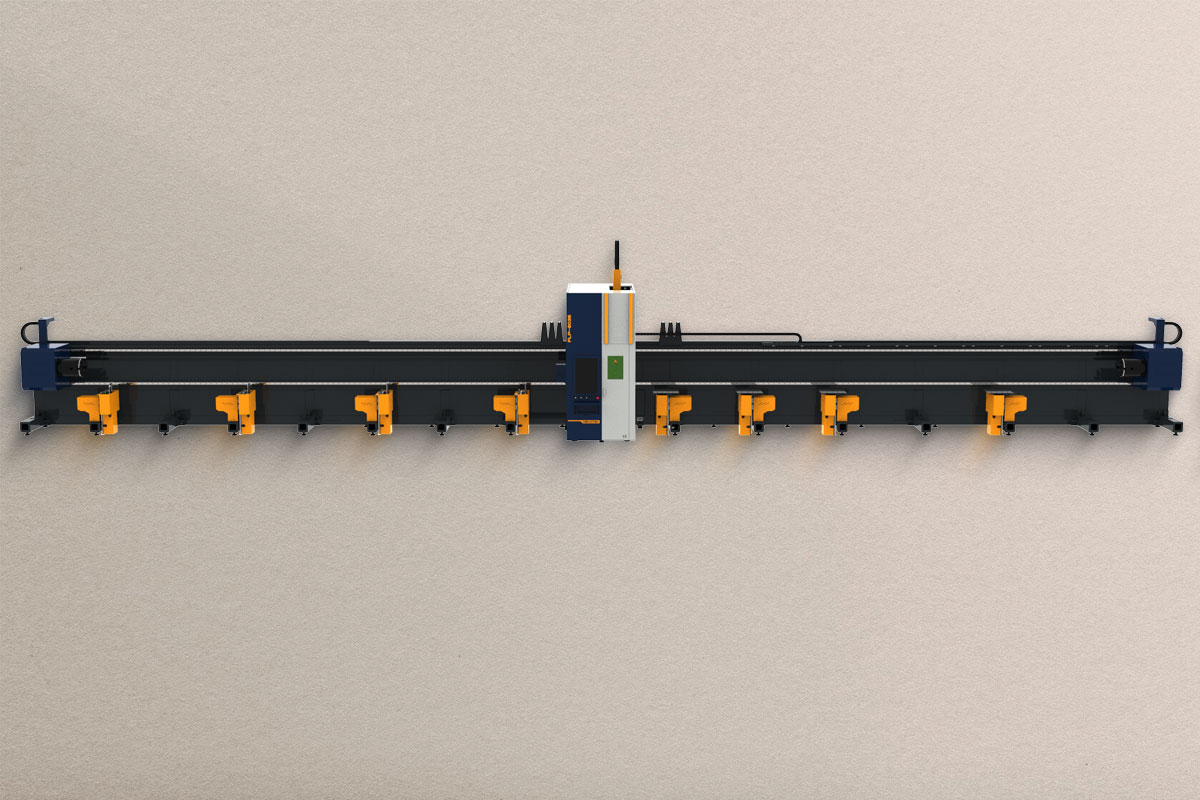

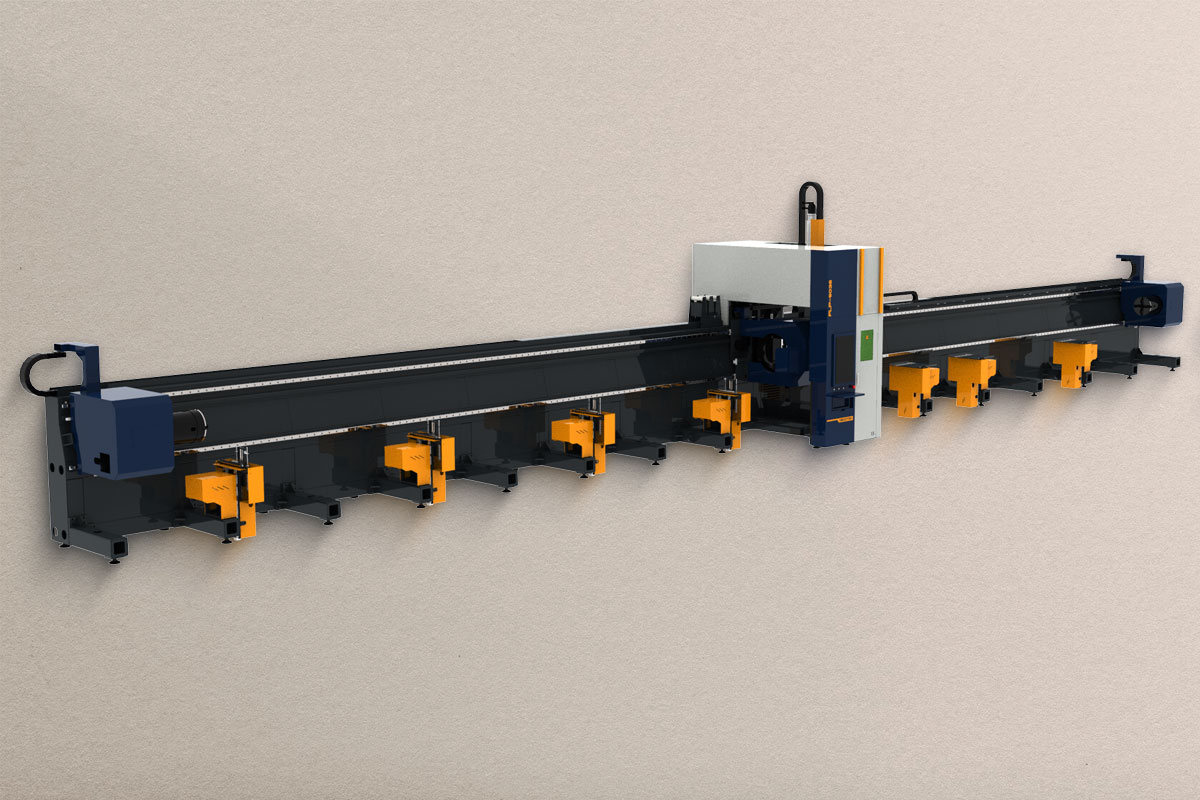

The FLP 9036 BVL model retains the 3-Mirror technology and 9-meter processing capacity of our previous model. This means you can process long materials without waste and perform angled cuts. Our movable mirrors grip the pipe firmly from end to end, ensuring that the 9-meter-long material does not wobble or vibrate as it rotates. This stability is essential for the angle-cutting head to operate with precision. If the pipe vibrates, the angle will be compromised. Mekotek’s rigid body, weighing several metric tons, guarantees razor-sharp surfaces even at the most challenging angles.
Mekotek’s Guarantee for Domestic Production
Bevel cutting technology represents the pinnacle of fiber laser technology. When purchasing such a precise and technologically advanced machine, the manufacturer’s capabilities are of vital importance. With machines imported from abroad, if the cutting head malfunctions or fails to hold its settings, you’ll have to wait weeks for service from overseas. At Mekotek Laser, we manufacture and manage this technology ourselves at our 30,000-square-meter facility.
We offer this technology—which competes with major players in the European and American markets—with the advantage of “domestic production.” Whenever you have a question or need a part, you won’t be dealing with foreign contacts across time zones; instead, you’ll have our own engineers—with 20 years of experience—standing by your side and available 24/7. Working with us means using cutting-edge technology in the safest possible environment.
Mekotek’s Guarantee for Domestic Production
Bevel cutting technology represents the pinnacle of fiber laser technology. When purchasing such a precise and technologically advanced machine, the manufacturer’s capabilities are of vital importance. With machines imported from abroad, if the cutting head malfunctions or fails to hold its settings, you’ll have to wait weeks for service from overseas. At Mekotek Laser, we manufacture and manage this technology ourselves at our 30,000-square-meter facility.
We offer this technology—which competes with major players in the European and American markets—with the advantage of “domestic production.” Whenever you have a question or need a part, you won’t be dealing with foreign contacts across time zones; instead, you’ll have our own engineers by your side—with 20 years of experience—who are available 24/7. Working with us means using cutting-edge technology in the safest possible environment.
FLP 9036 BVL Technical Specifications
|
FEATURES |
|
|---|---|
|
Maximum Load Capacity (Sheet Metal / Profile) (kg) |
2500 kg |
|
Z-Axis Movement (mm) |
680 mm |
|
X-Y-Z Axis Sliding |
4 Point Ball Caged |
|
X-Y Axis Drive System |
Rack |
|
Z-Axis Drive System |
Ballscrew |
|
X-Y Axis Speeds (Resultant Speed) (m/min) |
80 m/min |
|
Z-Axis Speed (m/min) |
30 m/min |
|
X-Y Positioning Accuracy (mm) |
±0,05 mm |
|
X-Y Repeatability (mm) |
±0,03 mm |
|
Max. Profile Length (mm) |
9100 mm |
|
Max. Profile Dimensions (mm) |
Ø 360 |
|
Laser Resonator |
Han’s / Raycus / JPT |
|
Laser Power |
1000 / 2000 / 3000 / 4000 / 6000 W |
|
CNC Control System |
Cypcut / Weihong / Mekotek |
|
Laser Cutting Head |
BOCI / Han’s / Raytools |
|
Auxiliary Cutting Gases |
Air/Oxygen/Nitrogen |
|
Cooling Type |
Water Cooling |
|
Machine Weight (kg) |
16.000 kg |
|
Machine Dimensions (mm) |
2650 x 22513 x 3750 mm |
|
Graph Format |
dwg / dxf / stp |
|
Voltage |
380 / 50 Hz |
|
Certificates |
CE / ISO |
|
Warranty |
2 Years |
FLP 9036 BVL Cutting Thicknesses
|
Thickness |
1000 w |
2000 w |
3000 w |
4000 w |
6000 w |
|---|---|---|---|---|---|
|
Carbon Steel |
10 mm |
20 mm |
22 mm |
25 mm |
25 mm |
|
Stainless Steel |
5 mm |
8 mm |
10 mm |
12 mm |
20 mm |
|
Aluminum |
3 mm |
6 mm |
8 mm |
10 mm |
16 mm |
|
Brass |
3 mm |
5 mm |
6 mm |
8 mm |
12 mm |
