Machine 9-Meter Giants Without Causing Fire

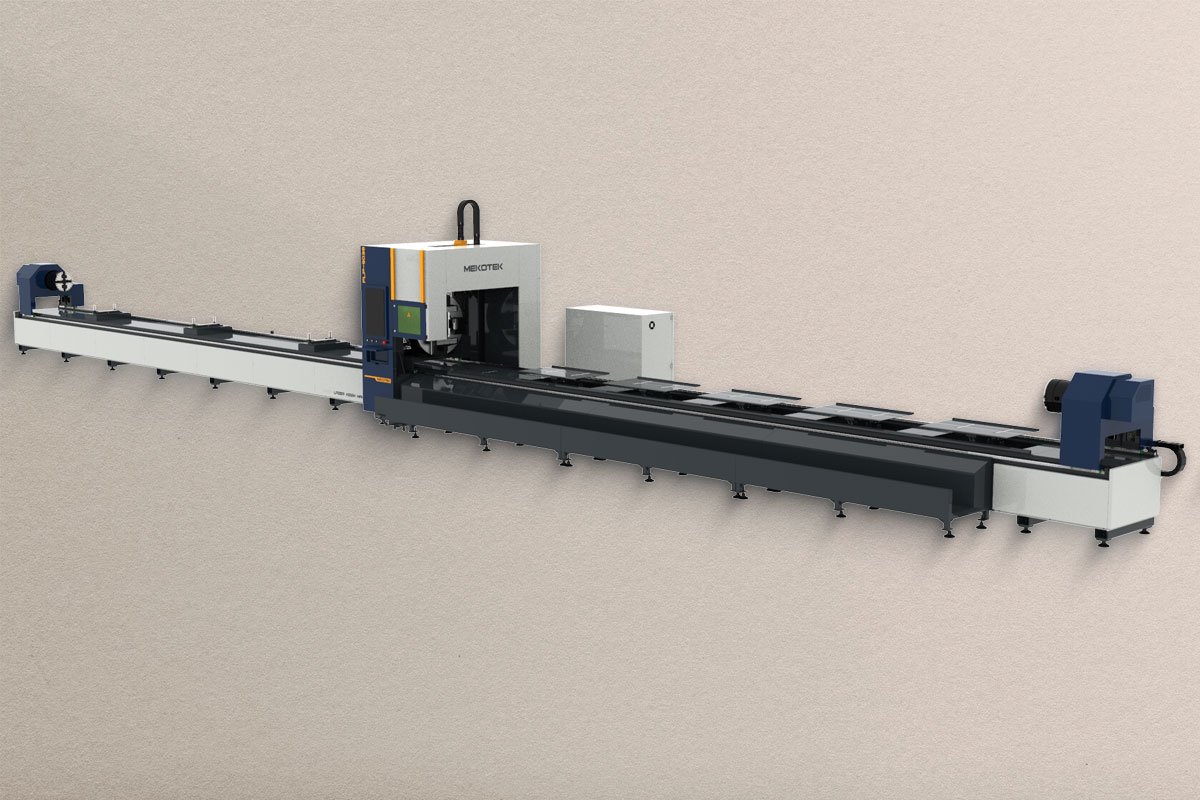

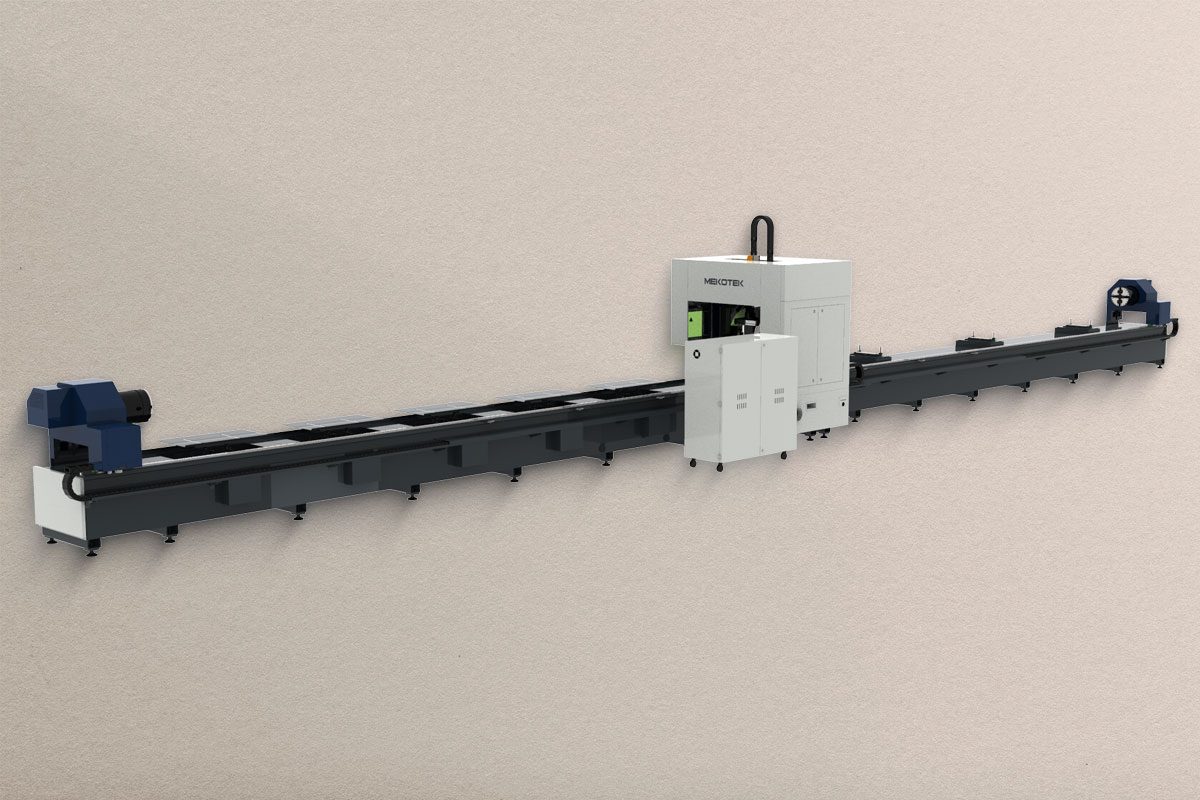

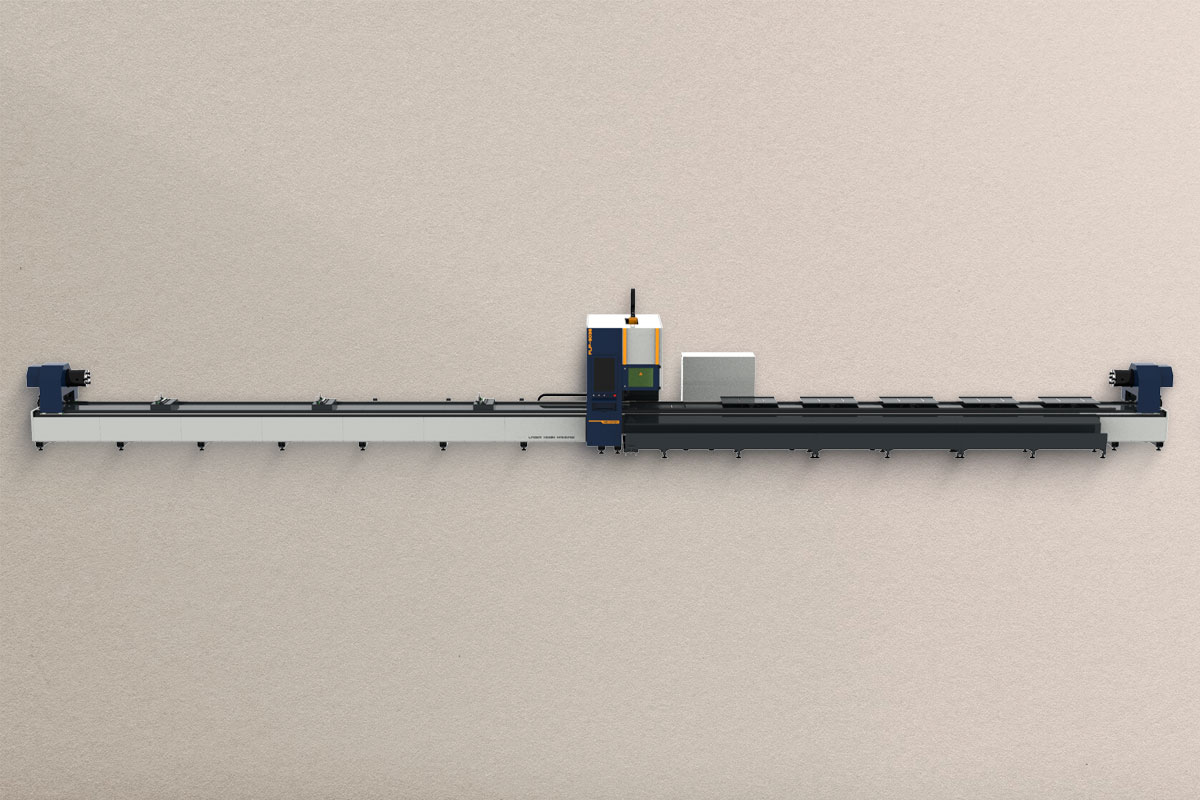

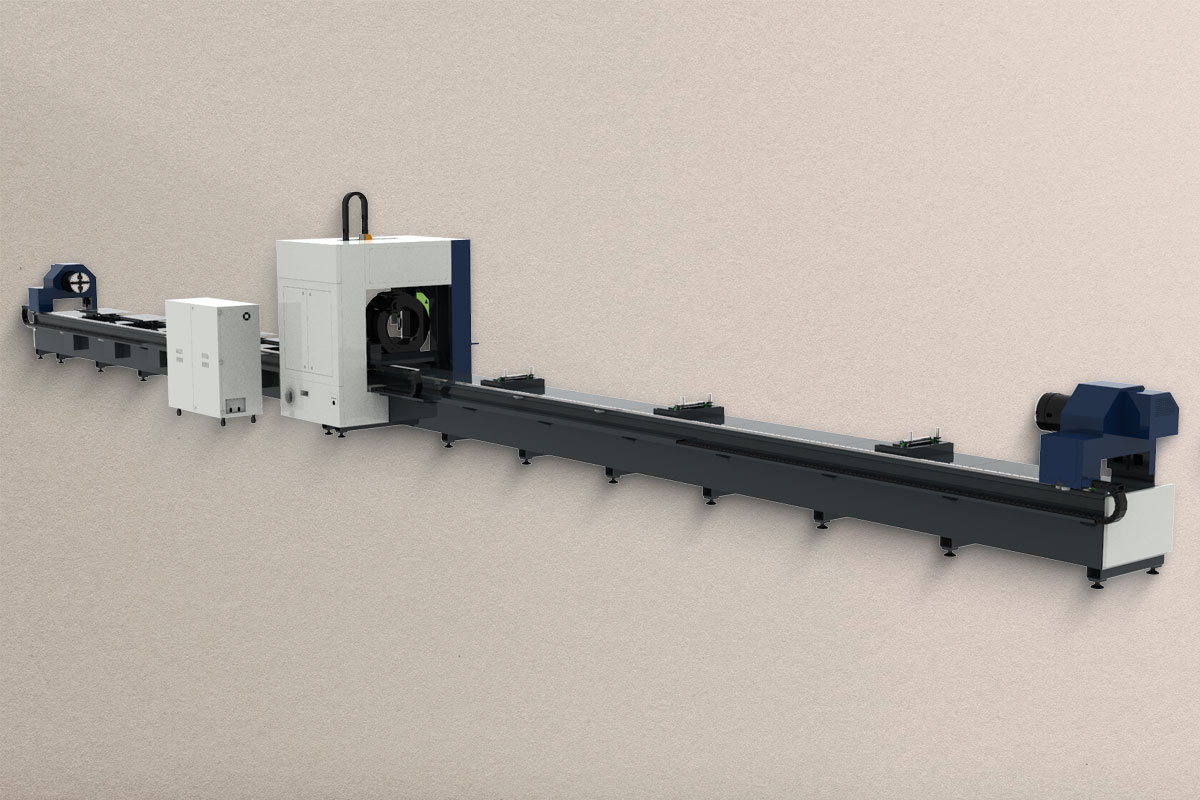

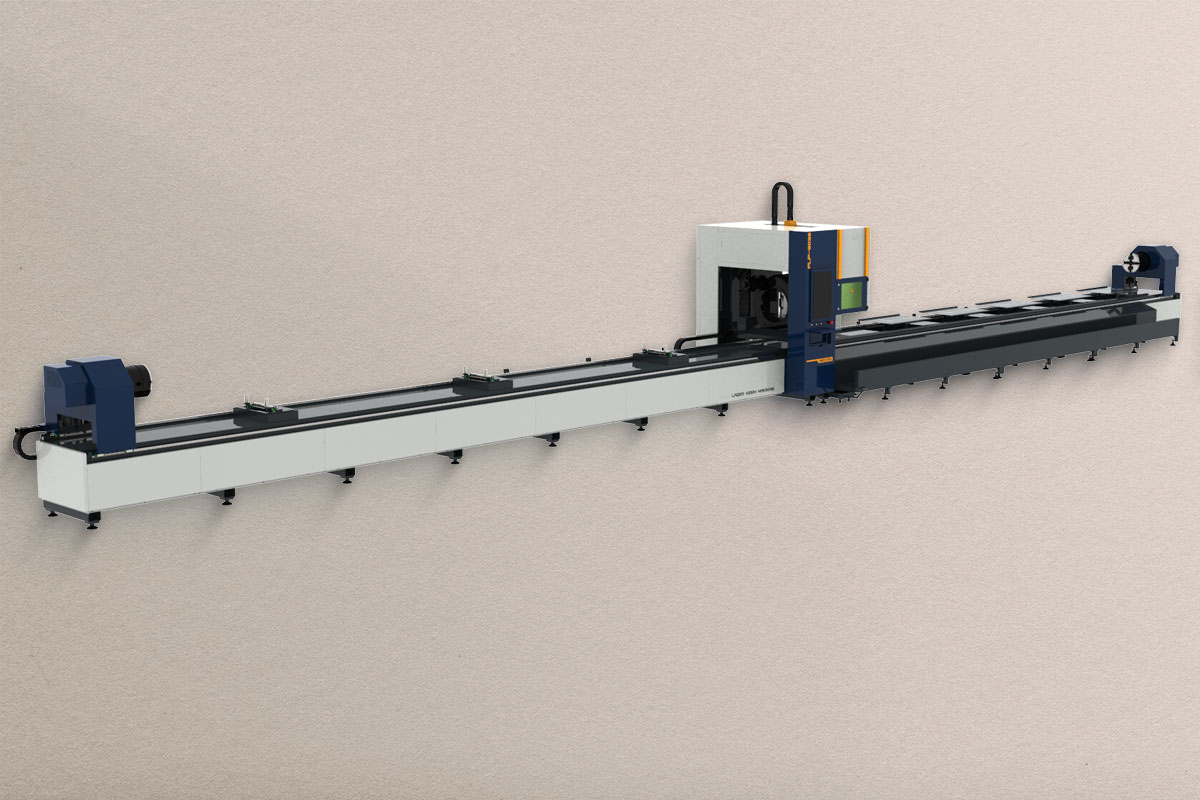

The Mekotek FLP 9036 Pipe and Profile Fiber Laser is a powerhouse designed for stadium roofs, airport construction, bridges, and large-scale steel construction projects—where standard 6-meter pipes fall short. Large-scale projects require long, sturdy profiles with no joints. By processing pipes and profiles up to 9 meters in length as a single piece with this machine, you increase the strength of your structures and reduce welding labor. While everyone else on the market is cutting 6-meter lengths, you’ll stand out from your competitors by processing 9-meter lengths.
Don’t Throw Your Money Away: Zero Queue Waste
The standout feature of this machine is its 3-chuck system. On standard 2-chuck machines, the final 20–30 centimeters of the pipe held in the chuck cannot be cut and ends up as scrap. With thick-walled and expensive profiles, this “tail waste” can cost you the price of a car by the end of the year. Thanks to the FLP 9036’s movable third chuck, you can process the pipe down to the very last millimeter. This reduces waste to zero, ensuring you get the full value of the raw material you’ve invested in.
No Sagging, No Shaking
Not every machine is capable of turning a massive pipe that’s 9 meters long and 360 mm (36 cm) in diameter. On standard machines, as the pipe rotates, it sags in the middle “like a banana,” wobbles, and the cutting dimensions become distorted. The FLP 9036, with its three-jaw design, grips the pipe firmly from the beginning, the middle, and the end. The material rotates smoothly, and the hole at the very end aligns perfectly with the hole at the very beginning. The machine handles H-beams and NPU steel—weighing several metric tons—with ease, ensuring your production runs smoothly.
Why Mekotek? Big Machinery Requires Big Assurance
When investing in such a massive system, you need to find not just someone who sells machines, but a manufacturer who will “keep that machine running.” Servicing a 9-meter machine is not like servicing smaller machines; it requires expertise.
At Mekotek Machinery, as we manufacture these giants in our 30,000-square-meter factory, we make one promise: “You won’t be on your own.”
With the FLP 9036, you’ll gain in length and save on fuel.
FLP 9036 Technical Specifications
|
FEATURES |
|
|---|---|
|
Maximum Load Capacity (Sheet Metal / Profile) (kg) |
2500 kg |
|
Z-Axis Movement (mm) |
650 mm |
|
X-Y-Z Axis Sliding |
4 Point Ball Caged |
|
X-Y Axis Drive System |
Rack |
|
Z-Axis Drive System |
Ballscrew |
|
X-Y Axis Speeds (Resultant Speed) (m/min) |
80 m/min |
|
Z-Axis Speed (m/min) |
30 m/min |
|
X-Y Positioning Accuracy (mm) |
±0,05 mm |
|
X-Y Repeatability (mm) |
±0,03 mm |
|
Max. Profile Length (mm) |
9100 mm |
|
Max. Profile Dimensions (mm) |
Ø 360 |
|
Laser Resonator |
Han’s / Raycus / JPT |
|
Laser Power |
1000 / 2000 / 3000 / 4000 / 6000 W |
|
CNC Control System |
Cypcut / Weihong / Mekotek |
|
Laser Cutting Head |
BOCI / Han’s / Raytools |
|
Auxiliary Cutting Gases |
Air/Oxygen/Nitrogen |
|
Cooling Type |
Water Cooling |
|
Machine Weight (kg) |
12.500 kg |
|
Machine Dimensions (mm) |
3125 x 22791 x 3175 mm |
|
Graph Format |
dwg / dxf / stp |
|
Voltage |
380 / 50 Hz |
|
Certificates |
CE / ISO |
|
Warranty |
2 Years |
FLP 9036 Cutting Thicknesses
|
Thickness |
1000 w |
2000 w |
3000 w |
4000 w |
6000 w |
|---|---|---|---|---|---|
|
Carbon Steel |
10 mm |
20 mm |
22 mm |
25 mm |
25 mm |
|
Stainless Steel |
5 mm |
8 mm |
10 mm |
12 mm |
20 mm |
|
Aluminum |
3 mm |
6 mm |
8 mm |
10 mm |
16 mm |
|
Brass |
3 mm |
5 mm |
6 mm |
8 mm |
12 mm |
