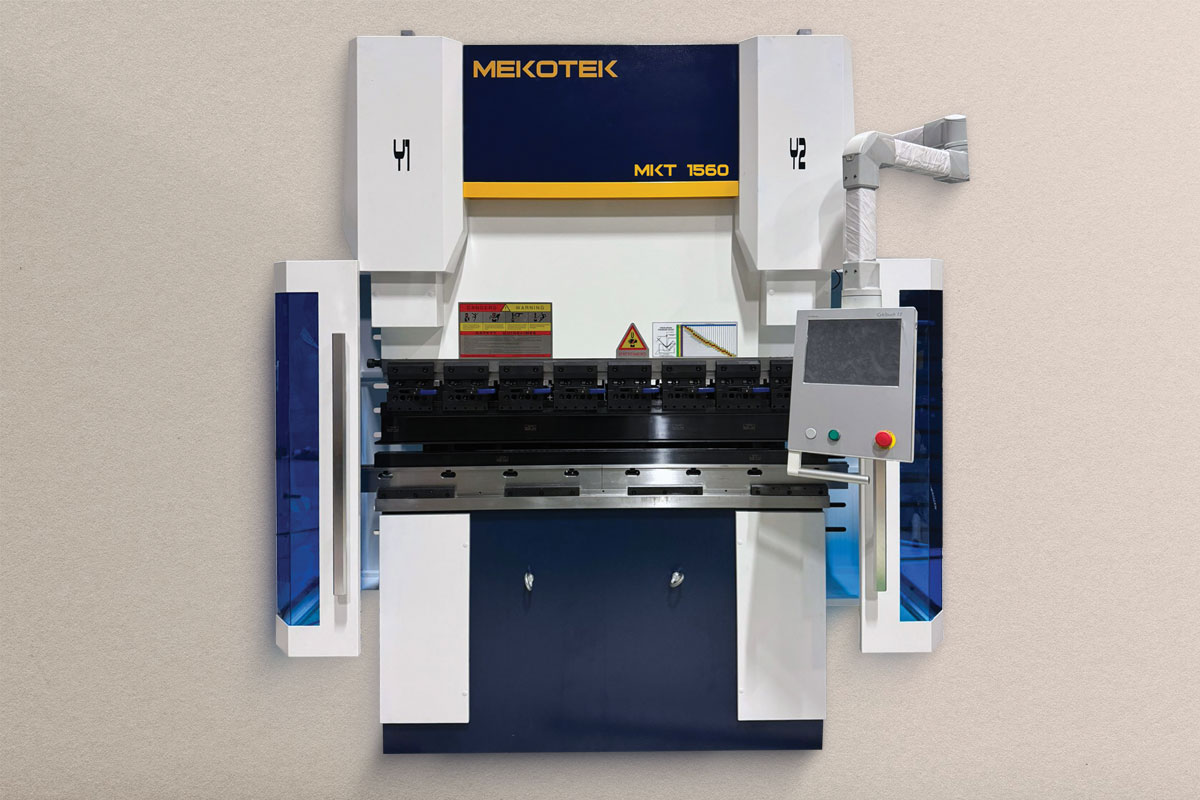

MKT 1560 Press Brake

The Workshop’s “Little Giant”: Compact Body, High Tonnage

The Mekotek MKT 1560 press brake is the smartest investment for businesses that say, “The parts I need to bend are less than 1 meter long, but I’m bending thick and delicate material.” Using a massive 3-4-meter press brake for a tiny bracket is like using a truck to haul a single box—it’s inefficient. With a 1,500 mm bending length and an astonishing 60 metric tons of force, the MKT 1560 gets big jobs done in a small space. Thanks to its speed and agility, it becomes the workshop’s hardest-working machine, especially in the production of electrical panels, accessories, automotive components, and metal boxes.

The Secret of Precision: 4 Axes and German Hydraulics

The Mekotek MKT 1560 press brake may be small, but its specifications are the same as those of its “bigger brothers.”

  • Full Control: Thanks to its 4-axis design—comprising the standard Y1, Y2, X, and R axes—you can set up even the most complex bends and supports of various lengths in a single operation.
  • Power and Stability: At the heart of the machine lies the world-renowned Bosch Rexroth hydraulic system. Thanks to this, pressure doesn’t drop even if the machine heats up, so whatever angle you bend in the morning is the same one you’ll bend in the evening.
  • Perfect Straightness: Thanks to the Manual Curving System, which comes standard on our models up to 2 meters in length, there is no angle difference between the center and the edges of the curved part, eliminating the problem of “banana-shaped” bending.

Operator-Friendly Technology and Security

The two most important factors for press brake operators are “ease of use” and “safety.”

  • Smart Screen: The Cybelec CybTouch 12 touchscreen CNC unit is so user-friendly that your operator simply draws the part on the screen, and the machine calculates the bending sequence on its own.
  • Safety First: The Fiessler & DSP Pre-Safety System or optional laser finger protection systems protect the operator’s hand from laser beams. If a hand gets in the way, the machine stops within milliseconds. This reduces the risk of workplace accidents to zero without slowing down production.

Below Mekotek Abkant?

We have extended our 20 years of experience with laser cutting machines and our commitment to production quality to press brakes—the other half of our sheet metal processing line. The machines we manufacture at our 30,000 m² facility are not merely piles of metal, but technological products backed by extensive engineering expertise.

When you purchase the Mekotek MKT 1560, you’ll find a team ready to advise you on everything from die (blade) selection to bending techniques. Plus, thanks to the advantage of domestic production, every part—from hydraulic seals to electronic circuit boards—is in stock. You won’t have to endure the frustration of “service delays” common with imported machines; you’ll secure your production line with the Mekotek guarantee.

Below Mekotek Abkant?

We have extended our 20 years of experience with laser cutting machines and our commitment to production quality to press brakes, which make up the other half of our sheet metal processing line. The machines we manufacture at our 30,000 m² facility are not merely piles of metal, but technological products backed by extensive engineering expertise.

When you purchase the Mekotek MKT 1560, you’ll find a team ready to advise you on everything from die (blade) selection to bending techniques. Plus, thanks to the advantage of domestic production, every part—from hydraulic seals to electronic circuit boards—is in stock. You won’t have to endure the frustration of “service delays” common with imported machines; you’ll secure your production line with the Mekotek guarantee.

MKT-1560-Ground-Plot-DrawingDownload

MKT 1560 Technical Specifications

FEATURES

Model

MKT 1560

Bending Force

600 KN

Bending Capacity (metric tons)

60 Ton

Power Supply

3PH / 380V / 50 HZ

Coil Length (mm)

1500 mm

Table Height

900 mm

Distance Between Walls

1000 mm

Strait Depth

400 mm

Stroke

200 mm

Center-to-Center Distance

470 mm

Descent Rate (mm/s)

180 mm/s

Rotational Speed (mm/s)

140 mm/s

Bending Speed (mm/s)

10 mm/s

X Axis Stroke

550 mm

X Axis Travel Speed

400 mm/s

X Axis Positioning Accuracy

± 0.05 mm

X Axis Repositioning Accuracy

± 0.02 mm

Y Axis Positioning Accuracy

± 0.02 mm

Y Axis Repetability

± 0.01 mm

R Axis Stroke

150 mm

Maximum Operating Speed of the R Axis

100 mm/s

Operating Accuracy: Straight Line

± 0.2mm/m, Angle: ± 0.5 °/m

Number of CNC Axes

4 axis

Engine Power

8.5 KW

Oil Tank Capacity

200 L

Machine Dimensions

2000 x 1500 x 2650 mm

Machine Weight

3500 kgs

MKT 1560 Main Configuration

Feature

Control System

CT12

Hydraulic System Valve Assembly

Rexroth

Servo Motor

Inovance

Oil Pump

First (U.S.)

Oil Cylinders

HY

Main Engine

Inovance

Protection Method

DSP Protection

Control Axes

4 axis

Magnetic Ruler

Givi (Italy)

X Axis Linear Guide

HIWIN

X Axis Linear Bar

HIWIN

Electrical Equipment

Schneider

Schedule

Double-Sided Quick-Release Clamp

Workbench

SRJM

Security Curtain

DSP/A200 (Including Black Bracket) (Italy)

Security Doors

Safety Gates

MKT 1560 Standard Configuration

Feature

CNC System

1 set

Rear Support Positioning Fingers

4 pieces

Standard Top Mold

1 set

Standard Lower Mold

1 set

Foot Pedal

1 set

Toolboxes

1 set
